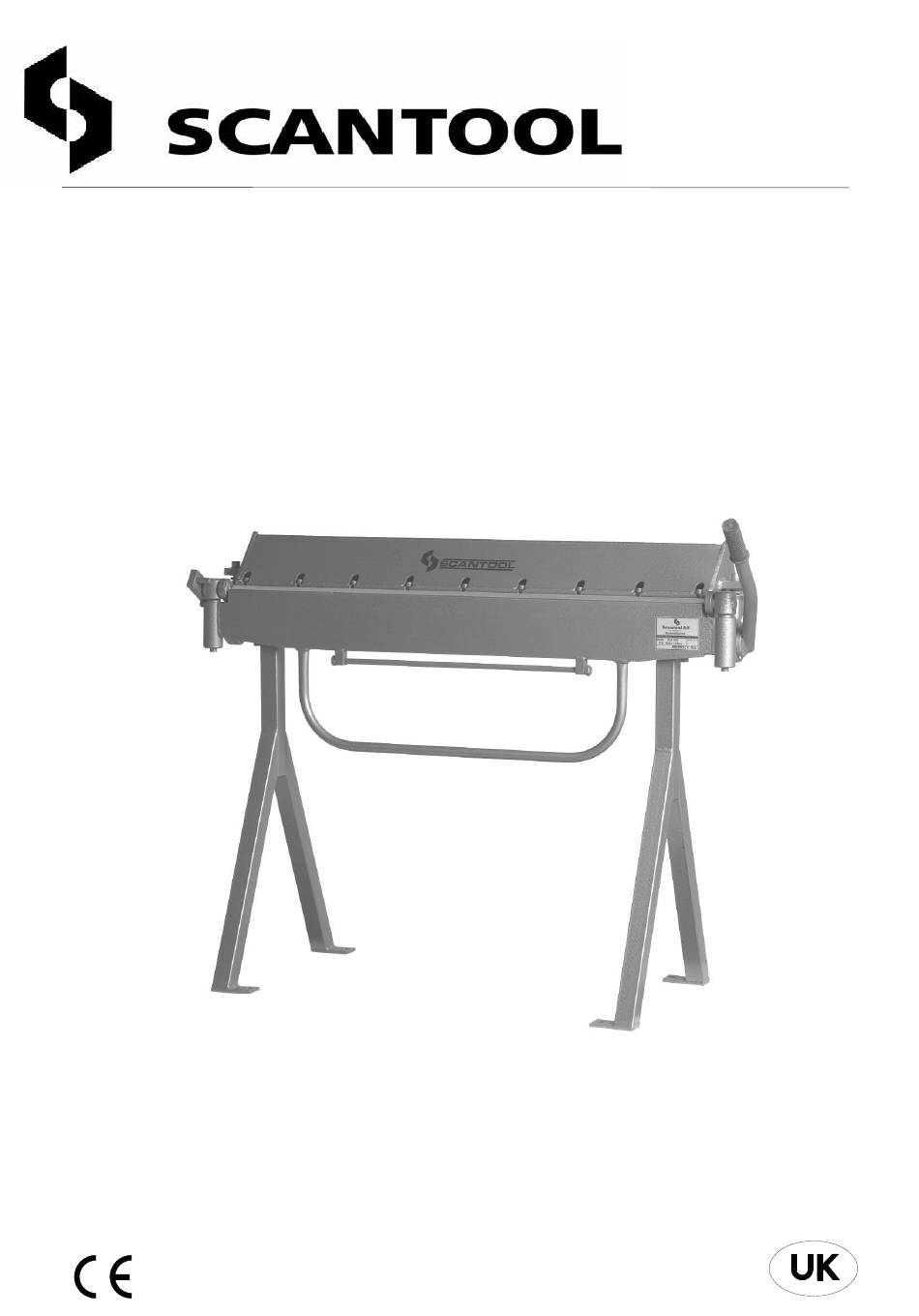

- Page 1 Industrivej 3-9 DK-9460 Brovst Tel.: +45 98 23 60 88 Fax: +45 98 23 61 44 Manual SCANTOOL Sheet bending machines...
- Page 2 Fax: +45 98 23 61 44 hereby declares that SCANTOOL Sheet bending machine are manufactured in accordance with the provisions of the COUNCIL DIRECTIVE of 22 June 1998 (98/37/EC) – The Machinery Directive (order no. 561 of 25 June 1994 with subsequent amendments) Also on accordance with: The council directive of 19 February 1973 (73/23/EEC) –...
- Page 3 Preface This manual is covering SCANTOOL SCS, SCB, SCA and SCST sheet bending machines. Therefore there will be description of some parts which are not a part of all machines. But as the operation of the various models are alike we have decided to make one manual covering all the models.
-
Page 4: Table Of Contents
Table Of Contents 1.0 TRANSPORT & HANDLING 1.1 T RANSPORT 1.2 H ANDLING 1.3 P LACING 2.0 USER’S GUIDE 2.1 O PERATION 2.2 S AFETY PRECAUTIONS 2.3 M AINTENANCE 3.0 SPARE PARTS LIST 3.1 E SCB & SCA XPLODED DRAWING OF MODEL 3.2 S SCB &... -
Page 5: Transport & Handling
1.0 Transport & handling 1.1 Transport SCANTOOL sheet bending machine is delivered on a pallet or on transportation feet. The bending machine is wrapped in protective wrapping. 1.2 Handling SCANTOOL bending machine can easily be moved on the pallet or the transportation feet it is delivered/equipped on or with. -
Page 6: User's Guide
(F) equal in both sides of the bending machine. To be able to take advantage of the many possibilities the SCANTOOL sheet bending machine offers (see fig.: 2.2), it may be necessary to dismount one or some of the segments in the top member (of the machines which are equipped with these). -
Page 7: Safety Precautions
The SCANTOOL sheet bending machine is constructed for operation with the equipment it is delivered with. Therefor we do not recommend to make any technical changes on the machine as well as not using any technical equipment which is not approved for the SCANTOOL sheet bending machine. -
Page 8: Spare Parts List
3.0 Spare parts list 3.1 Exploded drawing of model SCB & SCA Fig.: 3.1... -
Page 9: Spare Parts List For Sheet Bending Machine Model
3.2 Spare parts list for sheet bending machine model SCB & SCA Ordering number No. Description Model SCB Model SCST 1050 1300 1050 1300 Bolt M12x60 0203001 0203001 0203001 0203001 0203001 0203001 Disc ø20x2,75 0203002 0203002 0203002 0203002 0203002 0203002 Conical spring 0203003 0203003... -
Page 10: E Xploded Drawing Of Model Scs & Scst
3.3 Exploded drawing of model SCS & SCST Fig.: 3.2... -
Page 11: Technical Data
4.0 Technical data 4.1 Technical specifications All measures are in mm or kg Item no. Model Work length Max. sheet dim. Weight 540 72 1600 SCB 660 660x1,8 1070 540 72 1700 SCB 1050 1045 1053x1,2 1240 1070 540 72 1900 SCB 1300 1295 1303x1,2... -
Page 12: Guarantee
4.2 Guarantee If within 2 year of purchase this machine supplied by SCANTOOL A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: 1.
