Summary of Contents for Special Tomato 66 Series
-

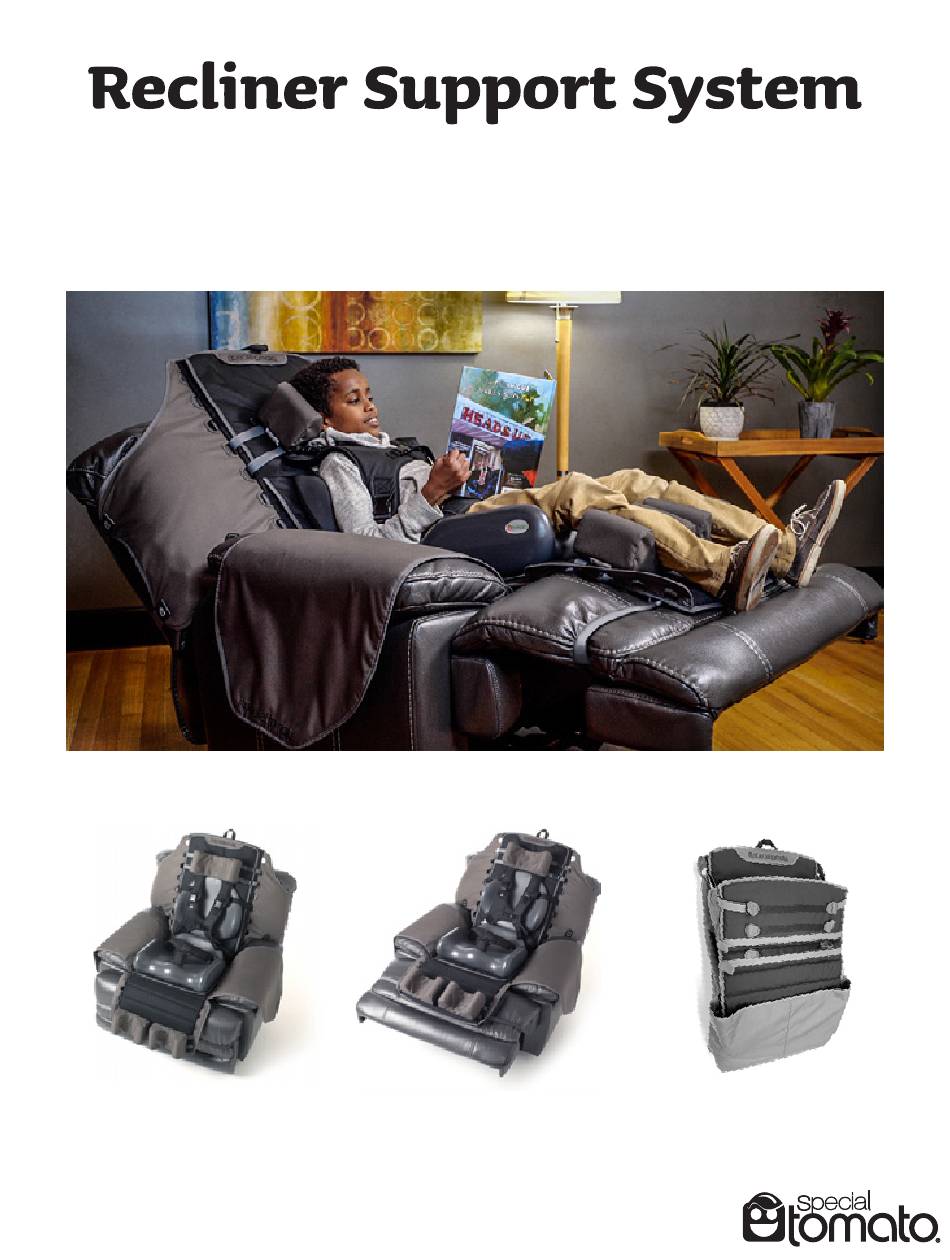

Page 1: User Manual
User Manual Model# Series 66XXXXXX UM-RSS-07-19LIT... - Page 2 Please read these warnings before using your Recliner Support System. WARNING: AVOID SERIOUS INJURY FROM FALLING OR SLIDING OUT. ALWAYS USE THE RECLINER SUPPORT SYSTEM 5-POINT HARNESS. NEVER LEAVE OCCUPANT UNATTENDED. IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.
-
Page 3: Table Of Contents
Table of Contents Recliner Support System Components ................4–5 Optional Cushions ................6 Assembly Recliner Drape & Base Fabric ............7–8 5-Point Positioning Harness .............9–10 Fabric Liner Pad ................11 Optional:Soft-Touch Hip-Flex Seat Liner Cushion ......12 Optional:Soft-Touch Back Liner Cushion ........13 Shoulder, Waist, Crotch, & Chest Pads ........14 Headrest ..................15 Calf Cushions ................16 Legrest ..................17... -
Page 4: Recliner Support System Components
Recliner Support System Components Your Recliner Support System should include the following (not to scale): Base Fabric Strap Guide Holes Backrest Section Seat Bight Fabric Liner Pad Seat Section Legrest Section Recliner Drape Seat Bight Securement Strap Legrest Securement Strap... -
Page 5: Components
Recliner Support System Components Headrest Calf Cushions Headrest Support Pads Calf Cushion Attachment Straps Headrest Cushion Calf Cushions Headrest Straps 5-Point Harness Shoulder Strap Shoulder Pads (x2) Chest Pad Lower Chest Strap Waist Strap Waist Pads (x2) Crotch Strap Crotch Pad... -
Page 6: Optional Cushions
Recliner Support System Optional Cushions Optional: Soft-Touch Hip-Flex Seat and Back Liners ® *Depth of Back Cushions are 1” thick at the narrowest point and 4” thick at the widest point. -
Page 7: Assembly
Recliner Drape & Base Fabric Assembly What you’ll need for this page: Base Fabric Recliner Drape Seat Bight Securement Strap 1. Place Recliner Chair in fully-reclined Ensure back edge of position Recliner Drape is and center flush with rear edge Recliner of the Recliner Drape across... -
Page 8: Recliner Drape & Base Fabric
Assembly Recliner Drape & Base Fabric 5. Buckle Base Fabric Securement straps and Seat Bight Securement Strap around back of Recliner Chair. Tip: Coil excess strapping and secure with Velcro provided. Your Recliner Support System should now look like this: Always place Securement Strap Pads along the edges of the Recliner Chair, as shown here. -
Page 9: 5-Point Positioning Harness
5-Point Positioning Harness Assembly What you’ll need for this page: Crotch Strap Note: Both a Small and Large 5-Point Harness are included with the Recliner Support System. Choose the harness size that best fits the occupant. 7. Pass 6. Feed loop-end of Crotch Strap through Crotch center Harness Loop located at the back of the Strap buckle... - Page 10 Assembly 5-Point Positioning Harness What you’ll need for this page: Shoulder Strap Lower Chest Strap Waist Strap 10. Feed Waist Strap through side Harness 11. Continue feeding Waist Strap through the Loop located adjacent to the center Harness Harness Loop on the opposite side of the Base Loop.
-
Page 11: Fabric Liner Pad
Assembly Fabric Liner Pad What you’ll need for this page: Fabric Liner Pad 15. Align Velcro at the top of the Fabric Liner Ensure Pad with Velcro at the top of the Base Fabric Recliner Backrest Section. Chair is in the fully- reclined position. -
Page 12: Optional:soft-Touch Hip-Flex Seat Liner Cushion
Optional:Soft-Touch Hip-Flex Seat Liner Cushion ® What you’ll need for this page: Hip-Flex Seat Liner Attachment Strap Hip-Flex Seat Liner Cushion If you are not installing the optional Hip-Flex Seat and Back Liners, skip to Page 14. SL1: Ensure that your Hip-Flex Seat Liner Attachment Strap is at least 52”... -
Page 13: Optional:soft-Touch Back Liner Cushion
Optional:Soft-Touch Back Liner Cushion ® What you’ll need for this page: Back Liner Cushion Back Liner Attachment Strap BL1: Ensure that your Back Liner Attachment Strap is at least 52” long in order to be compatible with the Recliner Support System. -
Page 14: Shoulder, Waist, Crotch, & Chest Pads
Assembly Shoulder, Waist, Crotch, & Chest Pads What you’ll need for this page: Shoulder Pads (x2) Waist Pads (x2) Crotch Pad Chest Pad 18. Slide Shoulder Pads onto Shoulder Straps. 20. Buckle 19. Install Waist Pads Chest Pad Shoulder and Crotch to Shoulder Strap Strap and... -
Page 15: Headrest
Headrest Assembly What you’ll need for this page: Headrest Cushion Headrest Attachment Straps Headrest Support Pads 21. If desired, assemble Headrest Support Pads to Headrest Cushion to adjust depth of Headrest Cushion. Note: Top or bottom Headrest Support Pad can be removed for an extended or flexed Headrest position. -
Page 16: Calf Cushions
Assembly Calf Cushions What you’ll need for this page: Calf Cushions Calf Cushion Attachment Straps 24. Feed Calf Cushion Attachment Straps 25. Lift Base Fabric Legrest Section and wrap through Strap Guide Holes in Base Fabric Calf Cushion Attachment Straps around Base Legrest Section that best fit the occupant. -
Page 17: Legrest
Legrest Assembly What you’ll need for this page: Legrest Securement Strap 27. Lift Base Fabric Legrest Section. 28. Feed end of Legrest Securement Strap through plastic ring on underside of Legrest Section. Then, press Legrest Securement Strap Velcro surfaces together as shown. 29. -
Page 18: 5-Point Positioning Harness Adjustment
5-Point Positioning Harness Adjustment Use this guide to fit the harness to the occupant in order to optimize comfort and safety. Always use shoulder pads to prevent plastic buckles and strapping from contacting the occupant's neck and face. To ensure proper placement of the chest harness, make sure the chest strap lies in the middle of the occupant's chest (armpit level). -
Page 19: Folding For Storage
Folding for Storage 1. Release the four Securement Straps that wrap around the Recliner Chair. Fold Recliner Drape over Seat Section then place Seat Bight Securement Strap on top of Recliner Drape as shown. Fold in Base Fabric Wings. 2. Fold the Legrest and Seat Section up to the Backrest Section. -
Page 20: Washing Instructions
Washing Instructions To prepare Recliner Support System for machine washing, please follow these steps: 1. Remove 2. Remove all Harness Fabric Liner Pads. Pad. 3. Remove 4. Clip all 5-Point 5-Point Harness from Harness Base Fabric. buckles together as shown here. - Page 21 Washing Instructions 5. Remove plastic inserts from zippered pockets in Backrest Section and Legrest Section. Rezip both pockets. 7. Remove Recliner Support System from 6. Re-install Fabric Liner Pad to Base Fabric. Recliner Chair and re-buckle three Securement Straps as shown (circled). Ensure Legrest Securement Strap...
-
Page 22: Warranty & Contact Information
Warranty & Contact Information LIMITED WARRANTY: Your Recliner Support System is guaranteed to be free from manufacturing defects for a period of 2 years from the date of purchase. Normal wear-and-tear is not covered. This warranty extends only to the original retail purchaser and is only valid when supplied with proof of purchase.
