Scantronic 9066 SCB Installation Instructions

9066 SCB Bell Module

Introduction

The 9066 SCB bell module is designed to replace most of the current standard bell
modules in external bells/sounders. The on-board battery supplies all the current required
to drive a bell/sounder and strobe. When the sounder is not working, the control panel
trickle charges the module's battery.
The 9066 contains an internal timer that switches off the output after 20 minutes (in line
with current UK insurance requirements). The timer can be disabled by cutting link LK1
on the pcb. The pcb provides test pins that allow you shorten the timer to 15 seconds for
Testing.
As supplied from the factory:
° The trigger input is -ve removed. The module can be converted to -ve applied trigger
by cutting link LK2 on the pcb.
° The tamper return is -ve. This can be converted to +ve tamper return by cutting link
LK3 on the pcb.
Cut for Continuous operation (Untimed)
IC1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
20 min
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
7.2 volt 280 mA
DEAC battery

Specification

Dimensions
Battery:
Quiescent Current:
Max Output Current:
Built-in Duration timer: 20 ±4 minutes
Wired inputs for:
Wired Outputs for:
Scantronic Limited Perivale Industrial Park, Greenford, Middlesex UB6 7RJ
1 2 3 4 5
1 2 3 4 5
LK1
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
IC2
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

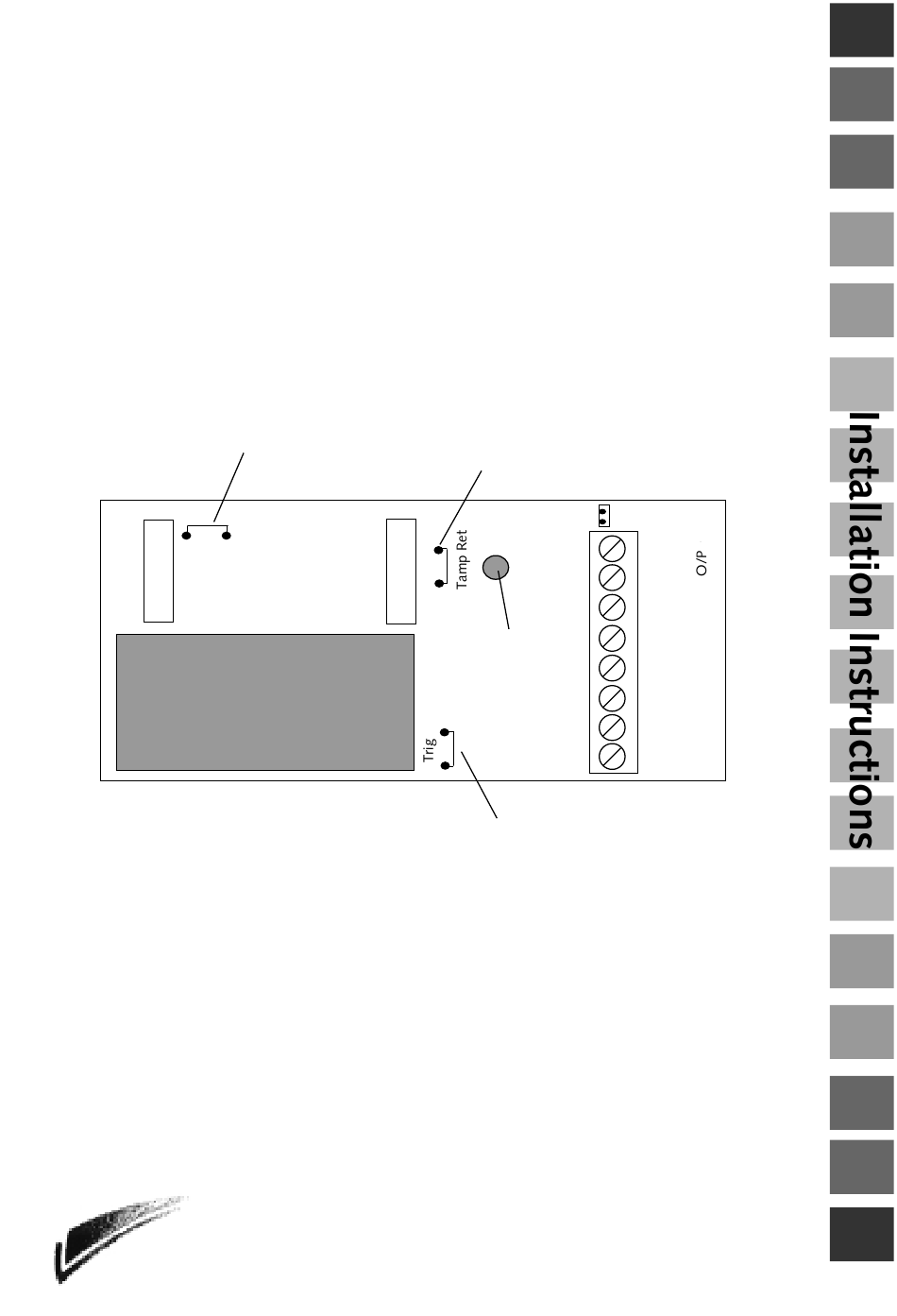

Figure 1. 9066 SCB Bell Module
w = 110mm, h = 50mm, d = 27mm (Pcb ONLY, incl. battery)
7.2 volt DEAC @ 280 mAH
30mA (battery charged ), 45mA (battery charging)
500mA (approx) @ 7.2 volts
Tamp - Closed circuit Enclosure Tamper switch,
Trig - Trigger, link selectable -ve Applied or Removed.
O/P +ve/-ve - output to Sounder/Strobe
Tamp Ret - Tamper Return, link selectable -ve or + ve return.
Cut for + ve Tamper Return
LK3
Power On LED
LK2
Cut for - ve APPLIED trigger input
Test
+ ve
- ve
+ Hold
Tamp
Tamp Ret
Trig
- Hold
Batt -ve
496210 Issue 2
