- Page 1 FURY HD 5000 ® LASER RANGEFINDING BINOCULARS PRODUCT MANUAL...

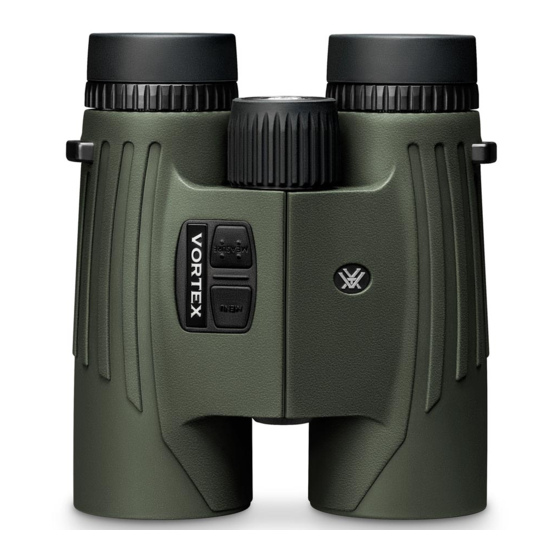

- Page 2 FURY HD 5000 ® FURY HD 5000 LASER RANGEFINDING BINOCULAR ® The Fury HD 5000 is an extremely effective angle-compensated ® laser rangefinding binocular intended for hunters, archers and Center Focus shooters. The primary HCD (Horizontal Component Distance) Ocular Lens Twist-up Eyecup mode provides key angle compensated range information required by the vast majority of rifle and bow shooters in a simple,...
-
Page 3: Basic Operation
FURY HD 5000 ® Install Battery BASIC OPERATION Open the battery compartment and Adjust the Eyecups install the CR2 battery included with the Fury HD 5000. ® The eyecups on a Fury HD 5000 ® twist up and down so any viewer can –... -
Page 4: Mode Selection
FURY HD 5000 ® Properly Focus the Rangefinding Mode Selection Display and Binocular Your Fury HD 5000 is factory set to the angle compensating ® HCD ranging mode, best target mode, yards, and maximum For the best views, follow this process to brightness. -
Page 5: Display Selection
FURY HD 5000 ® Brightness Selection SET AND SAVE MODE SELECTIONS Choose Between Five Brightness Settings. Ranging Mode Selection The Fury HD 5000 provides five ® Choose Between the HCD and LOS Modes. illumination settings. Press the Measure button to toggle through the five Brightness After activating the Mode Selection, press the Measure button settings. - Page 6 FURY HD 5000 ® Setting Target Modes Scan Ranging Press the Measure button to toggle between the Best and Last Activate Scan Ranging by pressing and holding the Measure displays. Press the Menu button to save your desired choice and button down.
- Page 7 FURY HD 5000 ® Using the HCD Mode Ranging Mode Explanations Use the HCD range mode in the following situations: The Fury HD 5000 provides two range modes: HCD (Horizontal ® Component Distance) and LOS (Line of Sight). Both modes offer •...
-
Page 8: Scan Feature
FURY HD 5000 ® LOS Mode LOS Mode - Incline The LOS (Line of Sight) mode is intended for rifle shooters who are When in LOS mode, an additional number is displayed above the using slope correcting ballistic drop data cards, ballistic cell phone yardage number. -
Page 9: Carry Case
FURY HD 5000 ® Rangefinding Tips ACCESSORIES Rangefinding binoculars work by emitting a brief pulse of light aimed Carry Case at a target object. Distance is determined by the amount of time taken for the light to emit and return to the laser’s internal receiver. The protective case provides safe storage between viewing A laser’s ability to read range can be affected by many things—... - Page 10 FURY HD 5000 ® Lens Care Keep Lenses Clean Maintain the optical brilliance of your binocular by keeping lens In order to enjoy the surfaces free of dirt, oils, and dust. best views through your binocular, take time to regularly clean the Protect Lenses While Out in the Field exterior lenses: Make use of the provided eyepiece and tethered objective lens...
-
Page 11: Fcc Requirements
AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE the following measures: NO.50 DATED JUNE 24, 2007. Sheltered Wings, Inc. One Vortex Drive, Barneveld, Wl 53507 October 2018 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. - Page 12 FURY HD 5000 ® VIP WARRANTY OUR UNCONDITIONAL PROMISE TO YOU. We promise to repair or replace the product. Absolutely free. Unlimited Unconditional Lifetime Warranty Learn more at VortexOptics.com service@VortexOptics.com • 800-426-0048 Note: The VIP Warranty does not cover loss, theft, deliberate damage, or cosmetic damage not affecting product performance.
- Page 13 M-00243-2 © 2019 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics...
