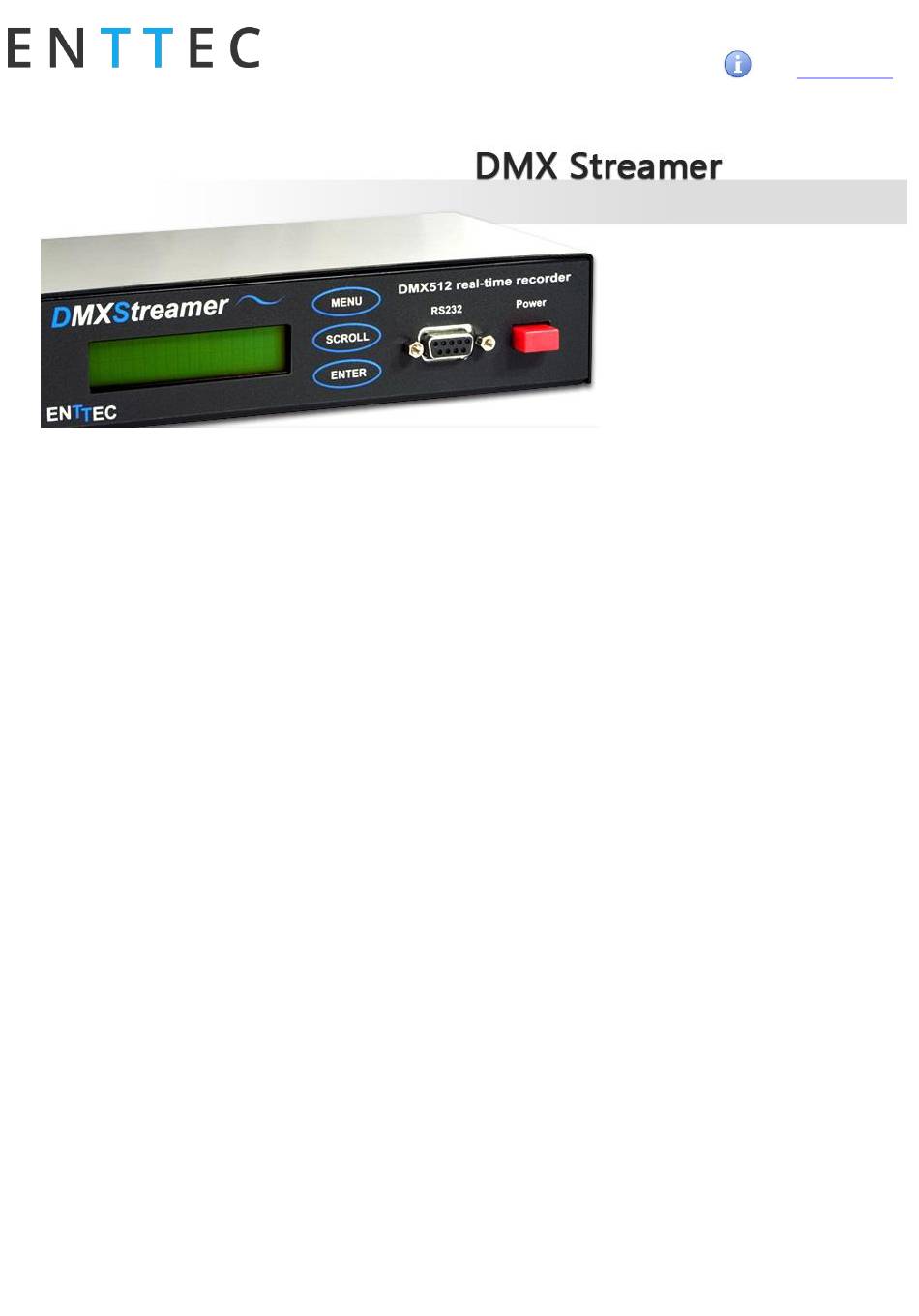

Enttec DMXStreamer Quick Start Manual

Box Contents

DMXStreamer (70015)

DB9 to DB9 1.8m cable (79103)

1RU Mounting Kit (79105)

7.5V PSU with Country specific plug (79111)

This user manual

Safety
Do not expose the DMXStreamer to rain or

moisture, doing this will void the warranty
Do not remove the cover, there are no serviceable

parts inside
Indoor use only (IP20 rated)

Terms used
Show: A recorded DMX512 data sequence that

forms a lighting presentation.
Event: An entry in the DMXStreamer's schedule

that specifies a Show and the times it is to be
replayed.
Channel: A single 8-bit (0-255) slot of DMX512

data.
Frame: A packet of DMX512 data containing the

levels (0-255) for up to 512 data slots.
Start Frame: The DMX512 frame that is output by

the DMXStreamer at startup.
1
Features
1 universe (512 ch) of DMX512 recording and replay

Up to 26 shows

Up to 23 hours of recording

Show replay can be triggered via:

◦ power up
◦ DMXPlayBackRemote Mk2
◦ external switch closure
◦ date and time of day
◦ remote serial command
◦ real-time clock
Automatic console backup mode

Battery-backed real time clock (Without regularly

updating the time with a computer, this product may
not produce precisely accurate timing)
Complete standalone operation

Full remote control via RS232

Easy firmware upgrades

Save and restore data from a standard Windows™

computer, using Streamer Utilities.
Layout
The DMXStreamer case is 1 Rack unit (44.45mm) in height,
241mm (9.5 inches) wide and 105mm deep. Two devices of
this size can be mounted side-by-side in a standard 19-inch
