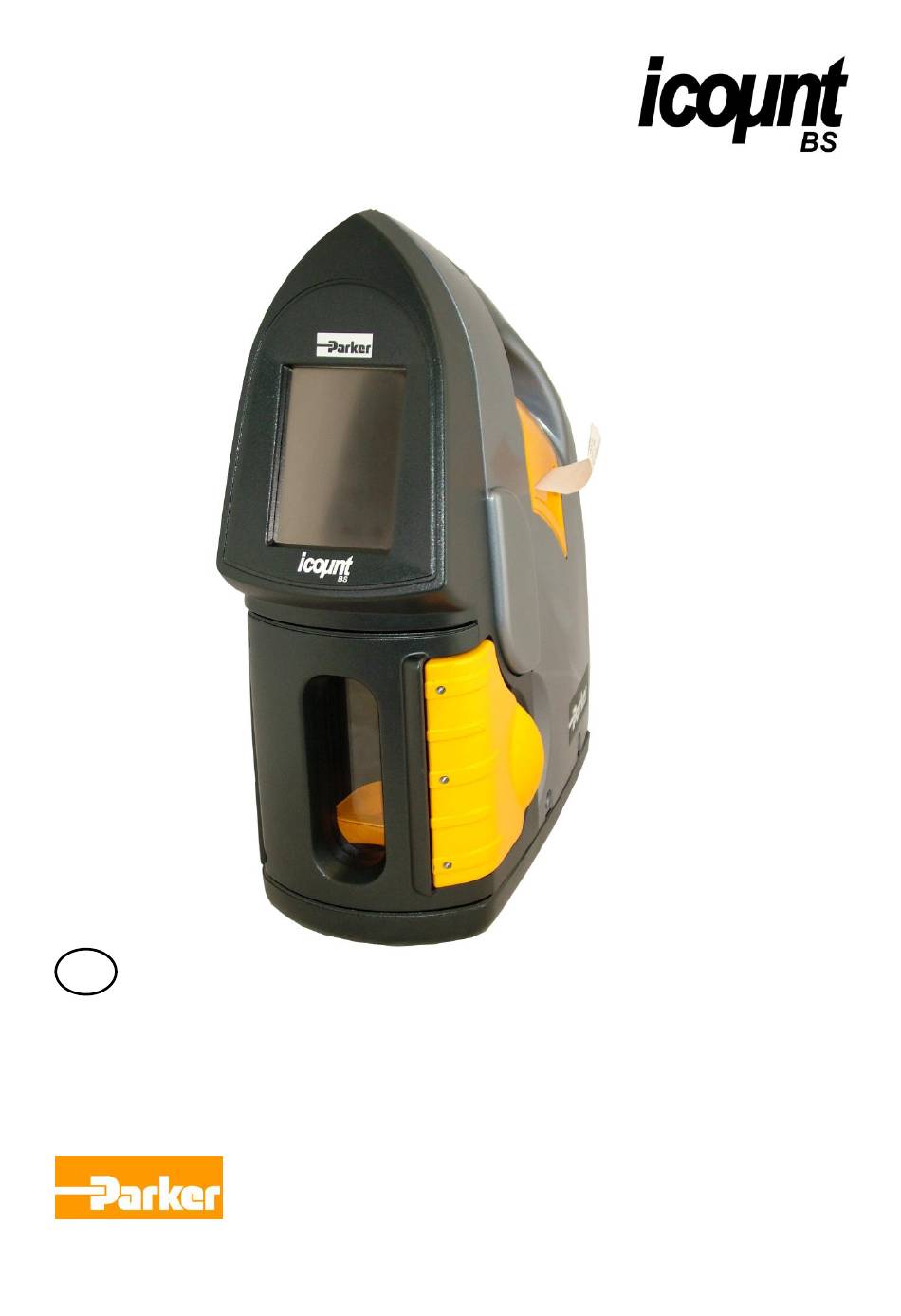

  • Page 1 User Manual B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 2: Laser Information

    NOTE: Users are not required to access the laser radiation source and should never do so. The internal laser warning label is mounted on the laser module and contains the following information: LASER RADIATION AVOID EXPOSURE TO BEAM CLASS 3R LASER PRODUCT B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 3: Table Of Contents

    M) DELETE TEST DATA – Page 20 N) BROWSE OPTIONS – Page 21 INTERPRETING DATA – Page 22 TROUBLESHOOT GUIDE – Page 29 PART NUMBER MATRIX – Page 33 PRODUCT ACCESSORIES – Page 33 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 4: Introduction

    Accredited to US Standards and achieving full ISO certification and calibration to the latest ISO Medium Test Dust Standards, icountBS represents the most up to date technology in solid particle contamination analysis. The icountBS brings to all industry a truly revolutionary Bottle Sampler as a remarkable cost effective market solution to fluid management and contamination control.

  • Page 5: Benefits

     Cost-effective and economical alternative solution to external laboratory services.  6 fixed channel size analysis  Fluid resistant touch type screen panel  Sample tube self cleaning sleeve minimizing contamination cross over  Internal printer B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 6: Technical Specification

    Mineral based oils and petroleum based fluids No specific bottle required. Sample Bottle Size Maximum size = Ø75mm x 150mm height, Maximum Volume = 250ml Memory Storage 500 tests (capacity warning after 450 tests) B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 7: Product Features

    2 hours (recommended to be fully charged every 3 months) Battery Stand-by Time 1 month (then 1 hour of operation) Battery fuse 6.3 Amps (Anti Surge) Air pressure Source 3.5 bar Mini-compressor OR 7 bar shop air. Product features B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 8: Product Dimensions

    Internal Battery compartment (located underneath) Emergency Air Dump Waste Oil Outlet 12 Vdc Input Oil Vapour Outlet USB socket Internal battery fuse Shop Air Inlet Battery On/Off (Switch down = On) Product Dimensions B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 9: Working And Testing

    Working and Testing The icountBS is capable of entrapped gas suppression and supplying a fixed amount of oil to test. Because of this it is able to eliminate many of the variables associated with contamination monitoring. The oil sample is degassed using suppressed, cleaned air and then supplied, through a fixed displacement pumping system.

  • Page 10: Fluid Sample Extraction

    The bottle should not contain more than one tenth of the number of particles per 100ml than are expected to be monitored. Standard Parker Hannifin bottles are supplied clean to ISO 13/11 or better in a Class 10,000 Clean Room and should not be used to accurately count oils cleaner than ISO 16/14 although they may be used for “trend monitoring”...

  • Page 11: A) Touch Screen Instructions

    It is important that whatever practices are adopted by the user, they are performed consistently. Internal Compressor Parker recommends that the icountBS is connected to the mains supply at all times and rear panel battery switch switched to ‘on’. For operation of the icountBS with the internal compressor requires the internal battery to be charged before use.

  • Page 12: B) Product Set-Up

    If available, Parker Hannifin recommends connecting shop air to ‘SHOP AIR’ inlet on rear panel on icountBS. If not the icountBS will operate using the internal compressor – ensure that the internal battery is charged.

  • Page 13: E) Configuration

    “Switch Off” – switches the icountBS off. The product can be re-activated by opening or closing the chamber door. “New Test” – perform a test. “Browse Tests” – displays previously saved tests. “Config” – displays the icountBS “System Settings” screen.

  • Page 14: F) To Start A Test

    To set the language to “Japanese” press the Nishoki flag. Screen shots shown in this manual are reference only. F) To start a test Ensure the ‘Product set-up’ procedures are carried out. B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 15: G) Default Test Parameter

    Reposition the drip tray (and test sample bottle) into chamber. Note it is necessary to tilt the test sample bottle slightly backwards on the drip tray so that it clears the icountBS sample steel dip tube (located inside the pressure chamber, top surface).
  • Page 16 However, if the Flush Volume and Volume per Sample is LESS than 114 ml (the internal pump capacity) then the test samples are combined (see Example B). Example A: The icountBS unit has been configured – Flush Volume = 10 ml, No of Samples = 3, Volume per sample = 60 ml B.89.809 Rev C © Parker Hannifin, 2015...

  • Page 17: I) Review Test Data

    Volume (ml) (ml) Total * A utomatic M ini- F lush Example B: The icountBS unit has been configured – Flush Volume = 20ml, No of Samples = 3, Volume per sample = 50ml Volume Flush Actual Test Sample AMF* (ml)

  • Page 18: K) Browse Previous Tests

    Home screen Press “Browse Tests” to browse previous tests. The browse test screen will be displayed. Note the test names displayed on this list are individual tests that have been stored on the icountBS. Select / highlight the required test.
  • Page 19 Press “Export”. .xml data file is automatically saved to the USB memory pen. Note that a directory named ‘icountBS’ is created on the root directory of the USB memory pen. The exported .xml file(s) are located here. Note that .xml files must be opened from with a Excel program.

  • Page 20: M) Delete Test Data

    Press “Export”. .xml data file is automatically saved to the USB memory pen. Note that a directory named ‘icountBS’ is created on the root directory of the USB memory pen. The exported .xml file(s) are located here Note that .xml files must be opened from with a Excel program.

  • Page 21: Interpreting Data

    Solid contaminants in fluid power systems vary in size, shape, form and quantity. The most harmful contaminants are normally between 6 microns and 14 microns. The ISO code is the preferred method of reporting quantity of contaminants. The ISO code number corresponds to contamination levels pertaining to three sizes. B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 22 6 µm(c) per 100 milliliter of fluid and the third number for particles larger than 14 µm(c) per 100 milliliter of fluid. Particle size, µm Interpolation is acceptable; extrapolation is not permissible. ISO contamination numbers Number of particles per 100 ml Range number Up to and More than including B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 23 14µm(c) per 100 ml. But the 14µm(c) part of the code could actually be 7, indicating a particle count more than 130 particles per 100 ml. ISO4406 particle distribution chart Including various ISO level contamination grades. B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 24 Particle size, µm NAS 1638 chart Size range µm 5-15 15-25 25-50 50-100 >100 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 25 The above comparisons relate to the particle count data only. To confirm to any particular standard, reference should be made to the recommended experimental procedure. Component cleanliness guidelines Suggested and acceptable contamination levels for various hydraulic systems. B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 26 ISO contamination charts Typical system applications and code numbers These typical applications and ISO code numbers are taken from the UK Contamination and Control Research Programme (1980 – 1984) B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 27 Number of particles per ml greater than indicated size Application: Marine installations Number of particles per 100 ml greater than indicated size Solid Contaminant Code No 18/13 Number of particles per ml greater than indicated size Application: Mechanical handling B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 28: Troubleshoot Guide

    Solid Contaminant Code No 16/11 Number of particles per ml greater than indicated size Application: Injection moulding; Metalworking; Unused commercial-grade oil Number of particles per 100 ml greater than indicated size Troubleshoot guide B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 29 NOTE: Do not connect IBS directly to the PC B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 30 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 31 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
  • Page 32 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...

  • Page 33: Part Number Matrix

    USA Power Supply ACC6NW007 European Power Supply ACC6NW008 Transit Case Contact Parker 1m waste tube (clear) ACC6NW009 1m vapour hose (blue) ACC6NW010 USB Memory Stick / pen ACC6NW011 icountBS CD Manual ACC6NW012 B.89.809 Rev C © Parker Hannifin, 2015 www.parker.com/hfde...
