Summary of Contents for re:3D GIGABOT VIKI 2.0

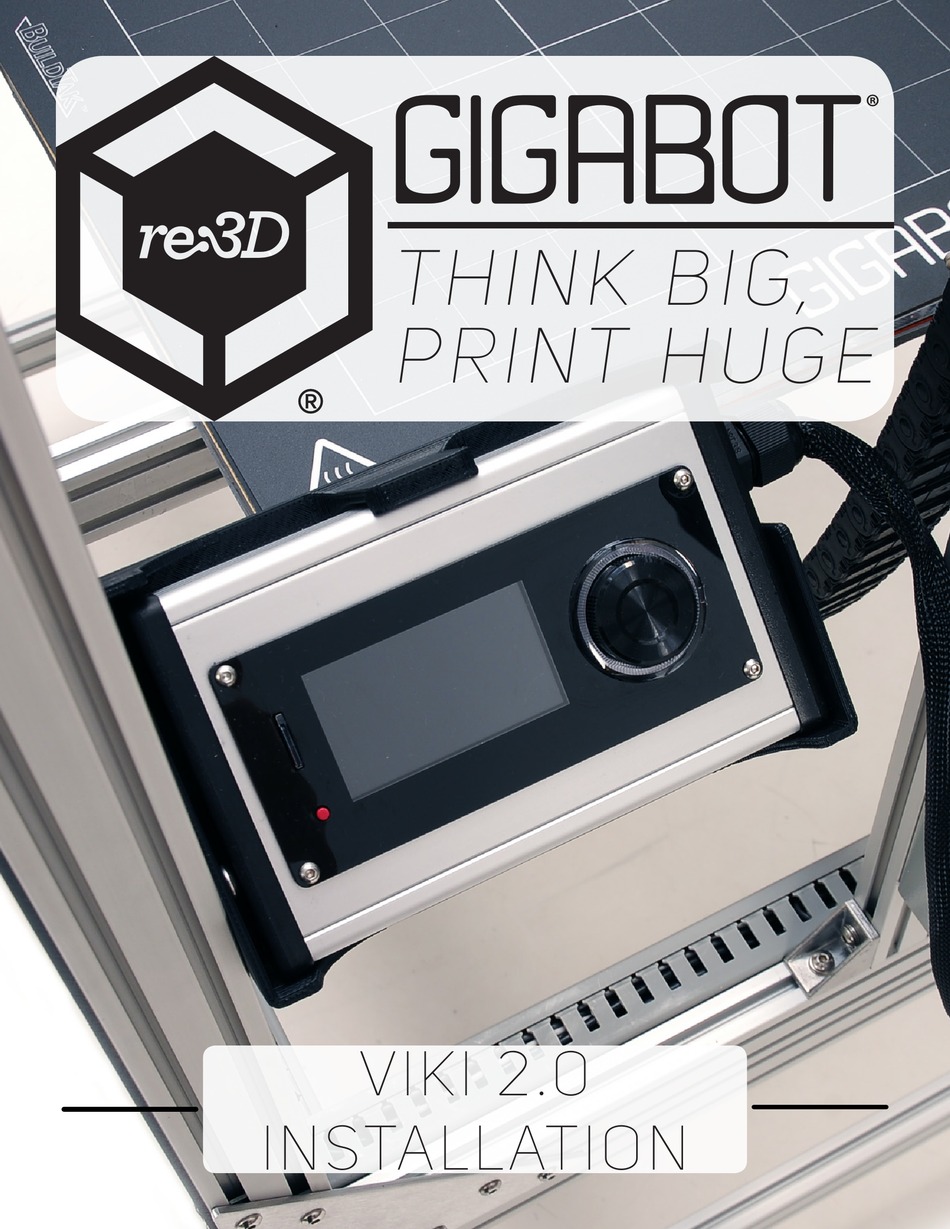

- Page 1 think big, print huge viki 2.0 installation...
- Page 3 Rev. october 2015...
- Page 4 THANK YOU FOR PURCHASING THE VIKI 2.0 INSTALLATION RETROFIT KIT FROM re:3D Inc.®! This upgrade will let you replace your old Viki LCD with the newer Viki 2.0 LCD. You will find that this is especially helpful for using and controlling your Gigabot® without connecting to a computer.
- Page 5 legalese READ INSTRUCTIONS : All the safety and operating instructions should be read before the printer is operated. RETAIN INSTRUCTIONS : The safety and operating instructions should be retained for future reference. HEED WARNINGS : All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS : All operating and use instructions should be followed.
-
Page 6: Table Of Contents
table of contents OVERVIEW LEGEND BEFORE YOU BUILD BUILD GUIDE BILL OF MATERIALS TOOLS YOU’LL NEED A : VIKI REPLACEMENT... -
Page 7: Overview
OVERVIEW New Viki 2.0 LCD interface Simple disassembly and replacement into existing enclosure *Full Gigabot® rendering is for illustrative purposes only and may not reflect the final construction of your Gigabot® re:3D Inc.® Viki 2.0 Installation... -
Page 8: Legend
LEGEND disconnect connect Unfasten/unscrew Fasten/screw insert place remove route Objects of importance are outlined with dotted lines Viki 2.0 Installation re:3D Inc.®... -
Page 9: Before You Build
V-groove wheels and also keep them from damaging the side plates or end trucks during adjustment. Likewise, it will ensure smooth, quiet operation when applied the the Z-axis ACME threaded rods. re:3D Inc.® Viki 2.0 Installation... - Page 10 There are parts of the instructions that suggest marking spots on the Gigabot® to properly place parts. When marking, be sure to only use a pencil--using a permanent marker will leave unsightly marks on the metal! Viki 2.0 Installation re:3D Inc.®...
-
Page 11: Build Guide
BUILD GUIDE BILL OF MATERIALS Viki 2.0 with wiring TOOLS YOU’LL NEED • #1 phillips head screwdriver re:3D Inc.® Viki 2.0 Installation... -
Page 12: A : Viki Replacement
A : VIKI REPLACEMENT... - Page 13 Gigabot before attempting any modifications! In electrical box, disconnect and remove Viki wires Refer to Azteeg wiring schematic if needed Unscrew and remove cable grommet cap with washer for Viki cables on electrical re:3D Inc.® Viki 2.0 Installation...
- Page 14 Completely remove Viki wires from electrical box Unscrew and remove 4x screws on enclosure end plate with cable grommet using a Phillips head #1 screwdriver Remove enclosure end plate with cable grommet Viki 2.0 Installation re:3D Inc.®...
- Page 15 Unscrew and remove cable grommet cap with washer for Viki cables from Viki enclosure Slide enclosure plate with connected Viki 2.0 into enclosure Don’t forget to insert foam cube re:3D Inc.® Viki 2.0 Installation...
- Page 16 If left enclosure end plate was removed, replace it Before replacing end plate with grommet, reinsert rubber washer Route wiring through enclosure end plate grommet Route wiring in small bundles if needed Viki 2.0 Installation re:3D Inc.®...
- Page 17 Replace enclosure end plate with cable grommet Replace grommet cap Washer may pop out while routing--press back into place if needed. Route wires in small bundles if needed Tighten grommet re:3D Inc.® Viki 2.0 Installation...
- Page 18 Replace other grommet cap onto wire bundle Route wires in small bundles if needed Route wires through electrical box grommet Route wires in small bundles if needed Viki 2.0 Installation re:3D Inc.®...
- Page 19 Please look over your completed kit and make sure everything has been assembled correctly. If you have further questions, please refer to the video instructions (search “re3D Tech” on YouTube and find “Viki 2.0 Installation” video) or contact us through the channels listed in the conclusion. re:3D Inc.® Viki 2.0 Installation...
- Page 20 Acquire beverage of your choice Actuate pull tab Consume Viki 2.0 Installation re:3D Inc.®...
- Page 21 Gigabot®, but please do not hesitate to contact us for any further issues or questions. Feedback on assembly instructions, support, and other aspects of your experience are welcome. Reach out to us at: WIKI : wiki.re3d.org EMAIL : support@re3d.org PHONE : 512-730-0033 Happy printing! think big, print huge! From the re:3D Inc.® team...
- Page 22 REFERENCES & DOCUMENTS VIKI 2.0 INSTALLATION http://wiki.re3d.org/index.php?title=Retrofit_ Instructions MANUAL PDF : re:3D Inc.® YouTube https://www.youtube.com/user/GigaBot3D CHANNEL : GIGABOT® AZTEEG http://wiki.re3d.org/index.php?title=Retrofit_ Instructions DIAGRAM (bottom of page) : PANUCATT VIKI LCD http://panucattdevices.freshdesk.com/support/ solutions/folders/1000183232 DIAGRAMS AND SUPPORT FILES :...
- Page 23 Viki 2.0 upgrade wiring...
- Page 24 Older Gigabots used the Azteeg X3 V1 - V1.2 board. An easy way to tell which board you have is to look for the “EXP4” pins on your Azteeg. If there are none, then you have the older model and should use the diagram on the right. At the end you should have a ...
- Page 25 NOTES...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 NOTES...
- Page 29 NOTES...
- Page 30 NOTES...
- Page 32 Inc.® | re3d.org | support@re3d.org...
