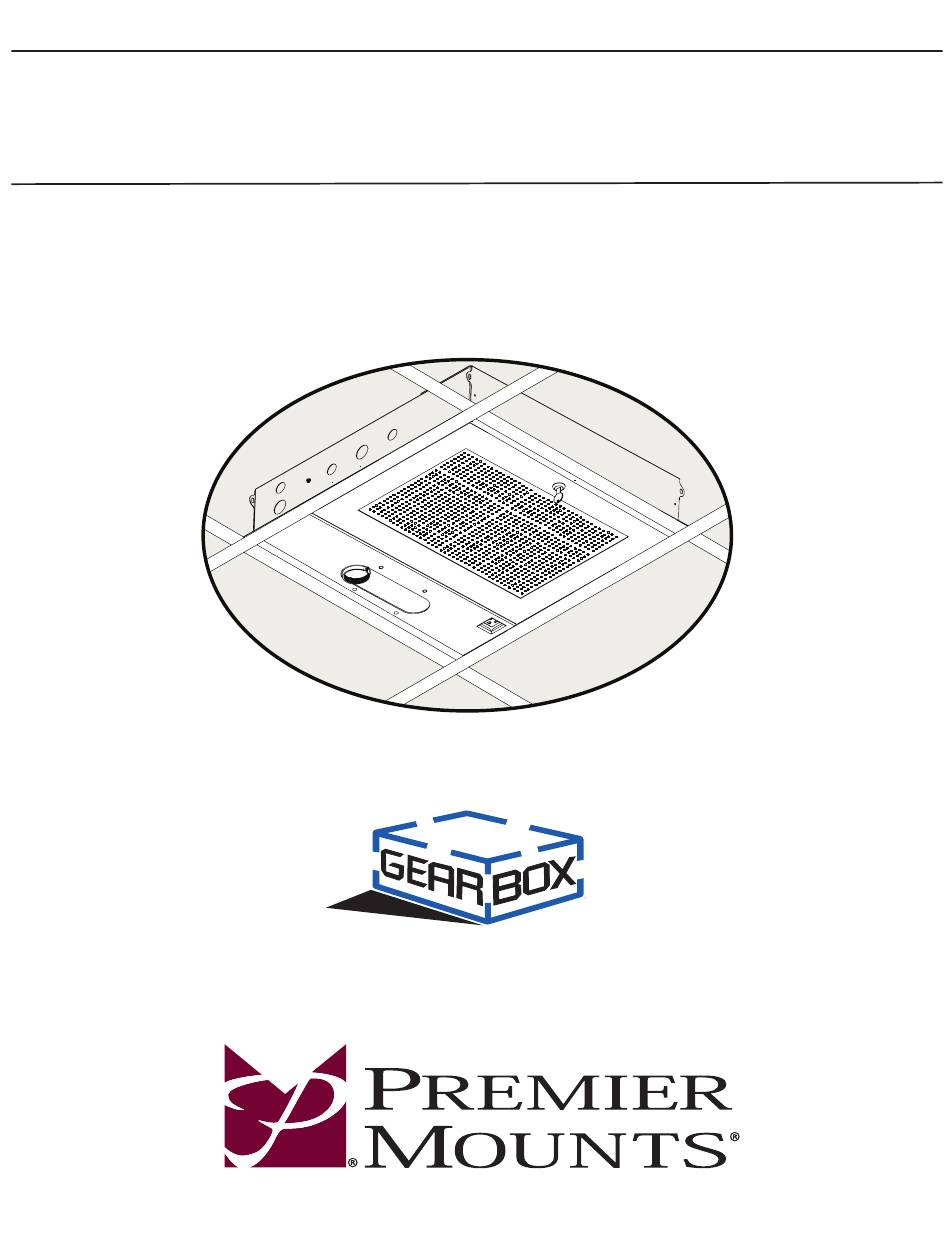

- Page 1 GB-AVSTOR5 Ceiling Equipment Storage Box with Pipe Coupler INSTALLATION INSTRUCTIONS CREATING POSITIVE CUSTOMER EXPERIENCES 9534-500-021-00...
-
Page 2: Table Of Contents
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
M6 x 2.4” Eye Anchor Bolts M5 x 6mm Set M5 x 8mm Phillips Head Screws Screw (Qty 1) (Qty 6) (Qty 4) (Qty 4) Quick Lock Cable Kit Quick Locks Braided Cable ˝ (Qty 4) (Qty 4 Strands) Installation Instructions Page 3 Visit the Premier Mounts website at www.mounts.com... -
Page 4: Features
Security Side Knockouts Lockable access panel keeps Multiple 1” and 3/4” knockouts A/V gear safe provide electrical conduit connector access Power Receptacle Conveniently connect the projector or another device to the integrated electrical outlet Includes the Quick Lock Cable Kit Mounting Coupler Power Toggle 1 ½” NPT pipe coupler Easily turn on or off provides 6” of lateral shift the power receptacle Page 4 Installation Instructions Visit the Premier Mounts website at www.mounts.com... -
Page 5: Gb-Avstor5 Installation
In addition, some steps of this installation may require two people to prevent personal injury and/or damage to your equipment. Please observe all warnings in the following installation procedure and utilize proper safety equipment at all times. Lid Removal ➊ Unlock and open the lid. ➋ Push the lid in and away from the metal hinges (Figure 1). ➌ Push the lid in the direction of the mounting coupler (Figure 2). ➍ Once the lid hinge is unattached, pull the lid carefully out from the ceiling box. Go to Ceiling Box Installation on page 6. Figure 1 Ceiling Box Side View Figure 2 Installation Instructions Page 5 Visit the Premier Mounts website at www.mounts.com... -
Page 6: Ceiling Box Installation
➌ Place the concrete eye anchor bolts into the pre- drilled holes and gently tap into place using a rubber Eye Anchor Bolt mallet or hammer. 1 /16 ➍ Run the open end ˝ braided cable through the hole in an eye anchor bolt. ➎ Run the open end through the loop. ➏ Pull the open end down until the braided cable tightens around the eye anchor bolt. ➐ Repeat steps 4-6 for the remaining three mounting points. Page 6 Installation Instructions Visit the Premier Mounts website at www.mounts.com... - Page 7 GB-AVSTOR5 Truss Ceiling Ceiling Truss ➊ Loop the braided cable around the truss. 1 /16 ➋ Run the open end ˝ braided cable through the loop. ➌ Pull the open end down until the braided cable ˝ tightens around the truss. ➍ Repeat steps 1-3 for the remaining three mounting points. Go to Quick Lock Operation on page 8. Installation Instructions Page 7 Visit the Premier Mounts website at www.mounts.com...
- Page 8 Cable Output Cable Input Please follow the steps below in numerical order , and to correctly install the Quick Lock Cable Kit. Release Pin To release or relieve tension on the braided ˝ cable, slide the release pin to disengage. ˝ Braided Cable Release Pin Mounting Hole ˝ Braided Cable Release Pin Mounting Hole Page 8 Installation Instructions Visit the Premier Mounts website at www.mounts.com...
- Page 9 ˝ braided cable through the other side of the Quick Lock. Once the tension has been adjusted, be sure that there is a minimum of 6” of excess braided cable ˝ on the non-weight bearing side of the Quick Lock. ➍ Use cable cutters to remove any remaining ˝ braided cable (optional). Go to Wiring the Electrical Box on page 10. Ceiling Framework ˝ Braided Cable To Ceiling Attachment 6” Excess ˝ Braided Cable Quick Lock Installation Instructions Page 9 Visit the Premier Mounts website at www.mounts.com...
-
Page 10: Wiring The Electrical Box
Removing the Electrical Knockouts (optional) ➊ Remove screws from around the desired electrical knockouts (Figure 1) to detach their covers. ➋ Remove the knockout covers from the top of the GB-AVSTOR5 (Figure 2). If you no longer want to use a knockout, re-attach its cover to prevent excessive airflow into the ceiling. Go to Mounting Tray Installation on page 11. Figure 1 1- and 2-gang electrical knockouts inside the GB-AVSTOR5 Detach the knockout cover Figure 2 Page 10 Installation Instructions Visit the Premier Mounts website at www.mounts.com... -
Page 11: Mounting Tray Installation
GB-AVSTOR5 (Figure 2). ➌ Hook the mounting tray onto the heads of the M5 x 8mm Phillips head screws on the GB-AVSTOR5 (Figure 3). ➍ Insert two (2) M5 x 8mm Phillips head screws into the middle mounting holes of the mounting tray. ➎ Use a Phillips tip screwdriver to tighten all six (6) screws. Do not overtighten the mounting screws. Inside view of GB-AVSTOR5 Figure 1 Continue to Ceiling NPT Adapter Plate Adjustment on page 12. Figure 2 Figure 3 Installation Instructions Page 11 Visit the Premier Mounts website at www.mounts.com... -
Page 12: Ceiling Npt Adapter Plate Adjustment
Securing the 1 ½˝ NPT Pipe to the GB-AVSTOR5 ➊ Secure the 1 ½″ NPT pipe to the mounting coupler and tighten the pipe. ➋ Use one (1) M5 x 6mm set screw to secure the pipe to the plate. The M5 x 6mm set screw must be used to stabilize the 1 ½″ NPT pipe. Go to Securing the Lid on page 13. Side view of the ceiling NPT adapter plate inside the GB-AVSTOR5 M5 x 6mm set screw 1 ½″ NPT pipe Page 12 Installation Instructions Visit the Premier Mounts website at www.mounts.com... -
Page 13: Securing The Lid
Securing the Lid Step 1 ➊ Re-attach the ceiling box lid to the ceiling box. ➋ Swing the ceiling box lid up into place. Step 2 ➊ Hold the lid in place. ➋ Use a key (supplied) to lock the lid in place. ➌ Do not release the ceiling box lid until you are sure that the lock has been engaged and the lid is secure. Installation Instructions Page 13 Visit the Premier Mounts website at www.mounts.com... -
Page 14: Technical Specifications
Technical Specifications All measurements are in inches [mm]. 606.43 23.875 479.01 18.859 128.21 5.048 21.348 5.000 568.71 22.390 546.10 21.500 546.10 21.500 128.21 152.40 5.05 6.000 606.43 23.875 Page 14 Installation Instructions Visit the Premier Mounts website at www.mounts.com... -
Page 15: Warranty
IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS. PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE PRODUCTS OR PARTS.
