bmS/baS
i
nStallation
The Polaris provides a
set of Remote Signal Dry
Contacts, which allow you to
integrate the load bank into
your Building Management
System (BMS) or Building
Automation System (BAS)
The dry contacts provide an
alarm message, letting you
know if the load bank has
failed.
To
enable
functionality,
wire
cables to TBR 5-7. Continuity between TBR 5 and TBR 6 indicate
normal load bank operation, and continuity between TBR 5 and
TBR 7 indicate load bank failure.
BMS/BAS
three

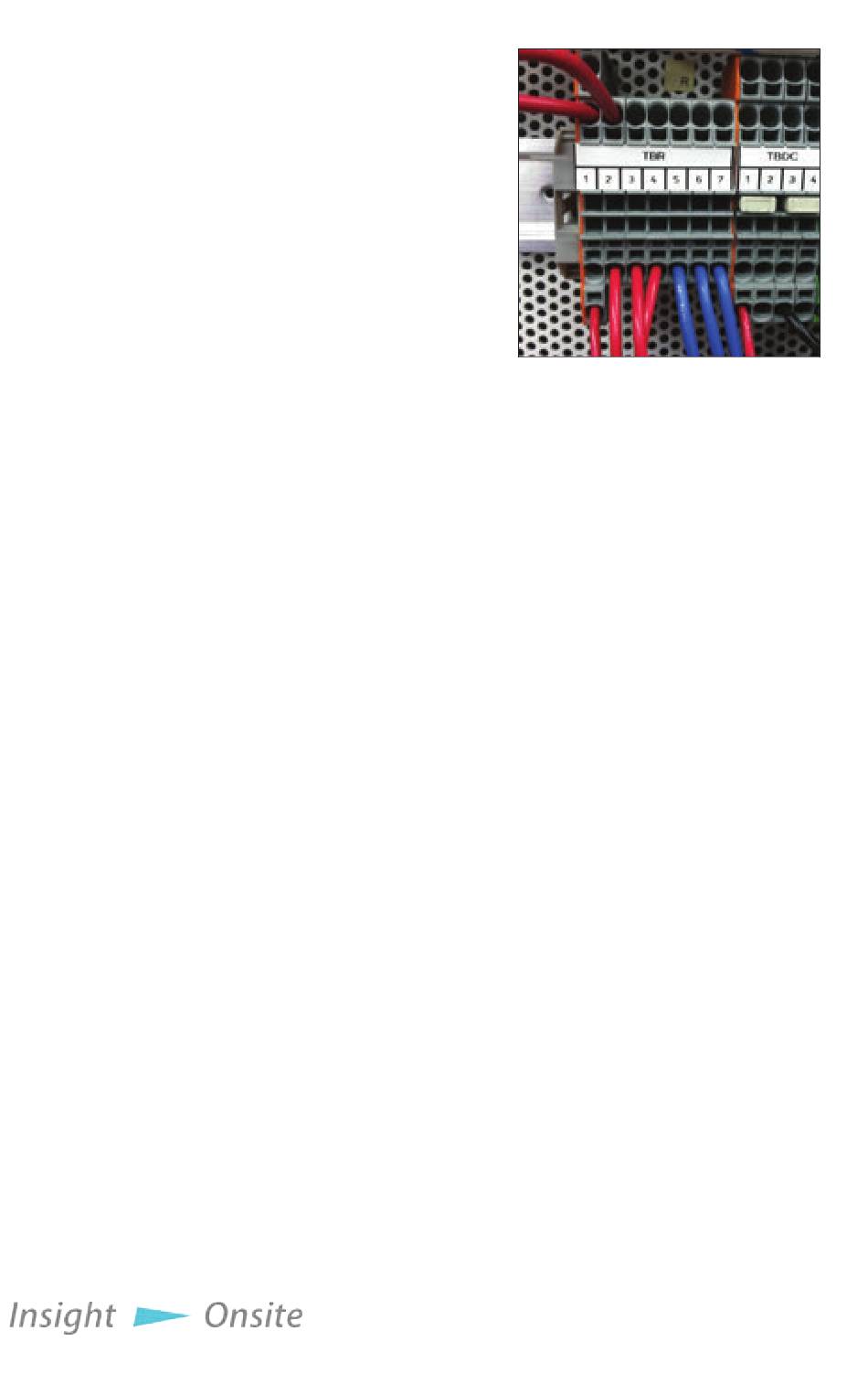

Figure 17 TBR
Installation — 15
