FX70 - Wi-Fi Card
Installation Instructions
Applications
This document covers the hardware installation of the
802.11b/g Mini Personal Component Interconnect
(PCI) wireless networking card (LP-FX70WIFI-0) for an
FX70 Supervisory controller.
For information on software installation and
configuration required for a supervisory controller, refer
to the FX Workbench User's Guide (LIT-12011149).

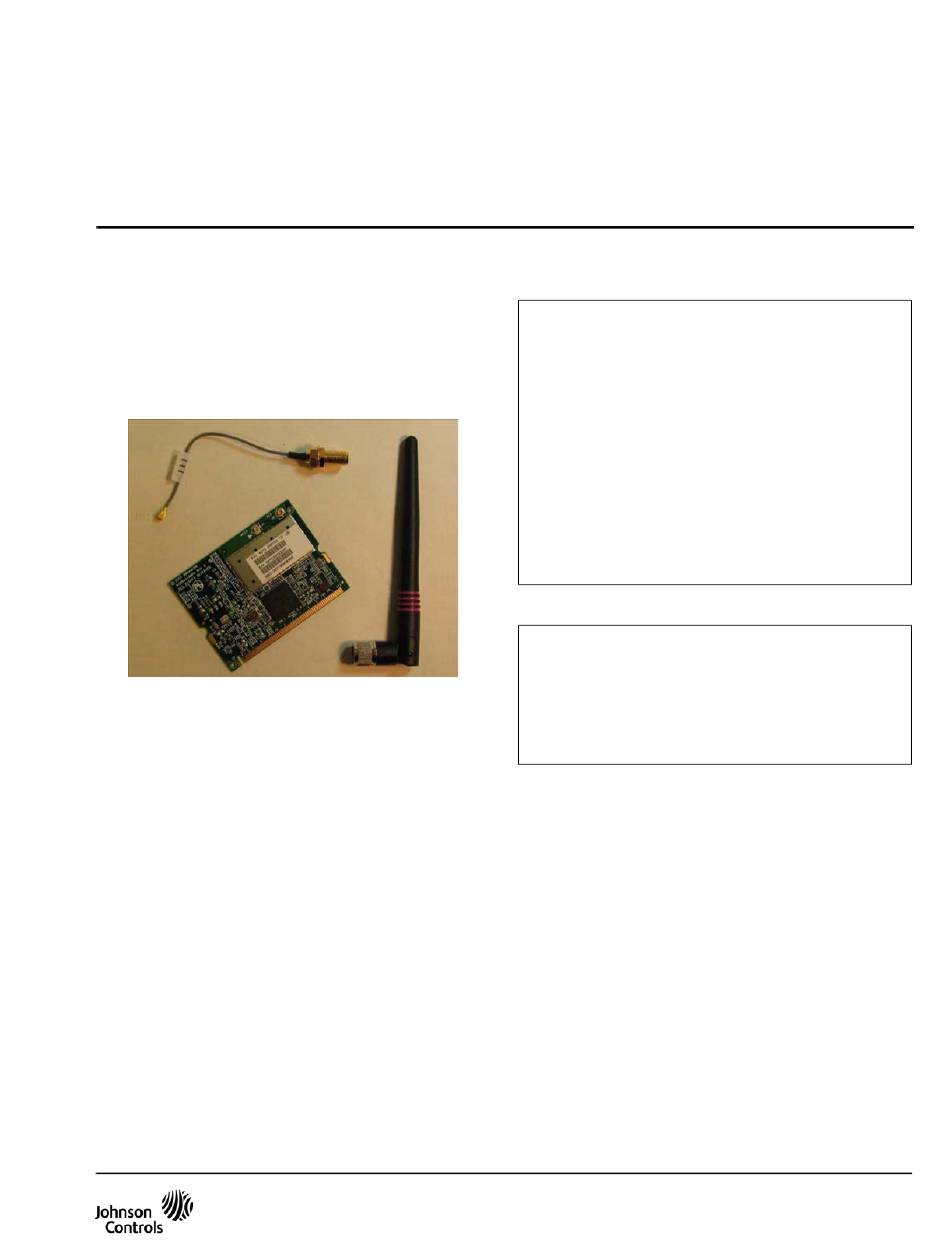

Figure 1: FX70-Wi-Fi (Card, Micro-Coax Cable,
and Antenna)
FX70 Wi-Fi Card
The FX70 Wi-Fi card provides Wireless-Fidelity (Wi-Fi)
Local Area Network (LAN) connectivity using the
Institute of Electrical and Electronic Engineers (IEEE)
802.11 b/g standard, seen as Interface 3 in the
Transmission Control Protocol/Internet Protocol (TCP/
IP) Configuration of the FX70 Supervisory Controller.
You install the FX70 Wi-Fi card in the controller's Mini
PCI slot, using a short micro-coax cable that allows the
included stub antenna to be mounted on the controller.
A 6.6 ft. (2 m) coax extension cable and bracket is also
included.
Part No. 24-10174-107, Rev. A
Supersedes October 31, 2011
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation
We recommend that you remove the controller from
any mounting, and use a flat, well-lit, anti-static (ESD
safe) surface to install this adapter card in the
controller.
Before installation, be sure to carefully attach of the
micro-coax cable to the Mini-PCI Wi-Fi card.
Parts Included
This package includes the following items:
• a Mini PCI 802.11b/g network adapter card
• a short micro-coax cable with a U.FL connector
end and an RP-SMA coax end (for the antenna)
• a tilt-and-swivel, RP-SMA 2.4 GHz stub antenna
• a 6.6 ft (2 m) RP-SMA-type coax extension cable
and metal bracket for relocating the antenna
FX70 - Wi-Fi Card Installation Instructions
Issued April 9, 2014
