Taco Hot-LinkPlus-e Instruction Sheet

U.S. Patent # 8.594.853
SUPERSEDES: NEW
Plant ID# 001-5007
Application:
The Taco Hot-LinkPlus-e
recirculation ensures instant hot water comfort at showers and
faucets. It saves thousands of gallons of water per year by
supplying fresh hot water to the fixtures while returning the
"cooled" hot water back to the water heater through the cold water
line. The average family can achieve yearly savings of up to
12,000 gallons of water normally wasted down the drain while
waiting for hot water.
Figure 1:
Typical Installation
Hot Cold
Additional Hot-Link
Valve location
HOT COLD
Valve Valve
WATER SUPPLY
HOT WATER LINE
Sensor
SmartPlug
Sensor
Sensor Strap
006e3
ECM Circulator
Cold
Inlet
Mixing Valve SmartPlug
Water
Heater
High Quality Features:

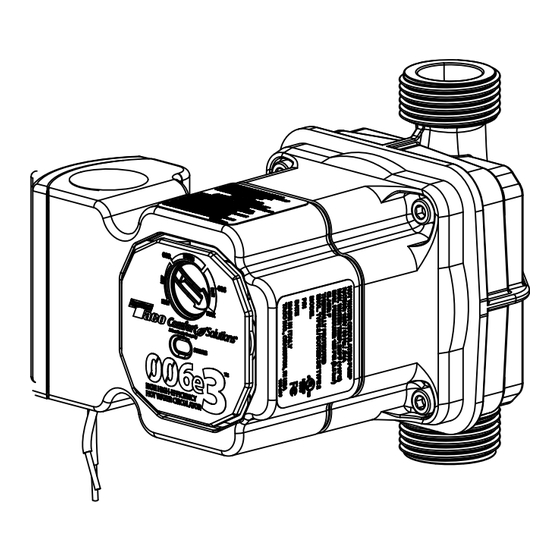

The Hot-LinkPlus-e System includes a high-efficiency Taco
multi-speed 006e3 ECM permanent magnet circulator. The
circulator is suitable for most residential homes with hot water
supply lines up to 100 feet.
SmartPlug Instant Hot Water Control ® learns weekly hot water
usage patterns in the home. It uses that information to run the
circulator providing hot water when its needed.
The unique Hot-Link ® Valve is the key to the system. Made of
durable high temperature polymer, it creates an easy-to-install
return loop through the cold line from the furthest fixture back to
the water heater. An integral thermal sensor disc closes when hot
water reaches the valve. An internal flow check prevents cold
water from backing into the hot water line. Stainless steel braided
flex hoses complete the installation.
Installing the Hot-LinkPlus-e 006e3 System Circulator:
WARNING: All local plumbing and electrical codes should be
followed when installing this product.
CAUTION: To ensure all plumbing system components are
protected from the damaging effects of water hammer, be sure
an approved water hammer arrestor is installed in the system
per locally recognized National plumbing codes.
WARNING: Circulator must be installed on and
supported by the circulation piping.
Instruction Sheet
System for Domestic Hot Water
TM
Hot Cold
(2) New 1/2"x1/2"
Hot-Link® valve includes
(female to female)
(2) plastic wall
anchors & screws
the water heater is preferred
HOT COLD
1/2" 1/2"
Valve
Use (2) existing 3/8"x1/2"
COLD WATER LINE
Diagram is for reference only
1. Follow all local plumbing and
electrical codes when installing
the Hot-LinkPlus-e System.
2. Shut off the cold water supply
valve to water heater.
3. Open a hot water faucet in
the house to drain the hot
water line.
4. Open the water heater drain valve located at the bottom of
tank to drain remaining hot water from the lines. It is not
necessary to drain the entire tank.
5. Disconnect the hot water supply line at water heater outlet
nipple.
6. Install the 3/4" female tailpiece and union adapter provided
to the water heater outlet.
7. Install the 3/4" male tailpiece and union adapter to the pump
Valve
outlet connection. Be sure flow arrow located on the pump
casing is in the proper direction.
Figure 2:
8. Install the Hot-LinkPlus-e 006e3 circulator by connecting to
the union nut/tailpiece attached to the water heater outlet.
Circulator motor must be in the horizontal position. To set the
circulator speed turn the dial to the 006 performance point.
NOTE: If flow velocity noise develops at the 006 setting turn dial
counter-clockwise to reduce pump speed until noise disappears.
CAUTION: Do not run circulator dry. Permanent damage
may result and will void warranty.
9. Reconnect the hot water supply line to the union tail-
piece attached to the circulator discharge.
10. Open the supply valve to water heater. Let water run until all
air is purged from lines. Check for any leaks. If leaks are
detected, close supply valve and tighten all connections.
11. Shut off open hot water faucet.
1
102-551
EFFECTIVE: FEBRUARY 27, 2018
A Typical Installation
with a Mixing Valve
Diagram is for reference only
