Connection of the FlexyMike Bluetooth Transmitter (FMK03)

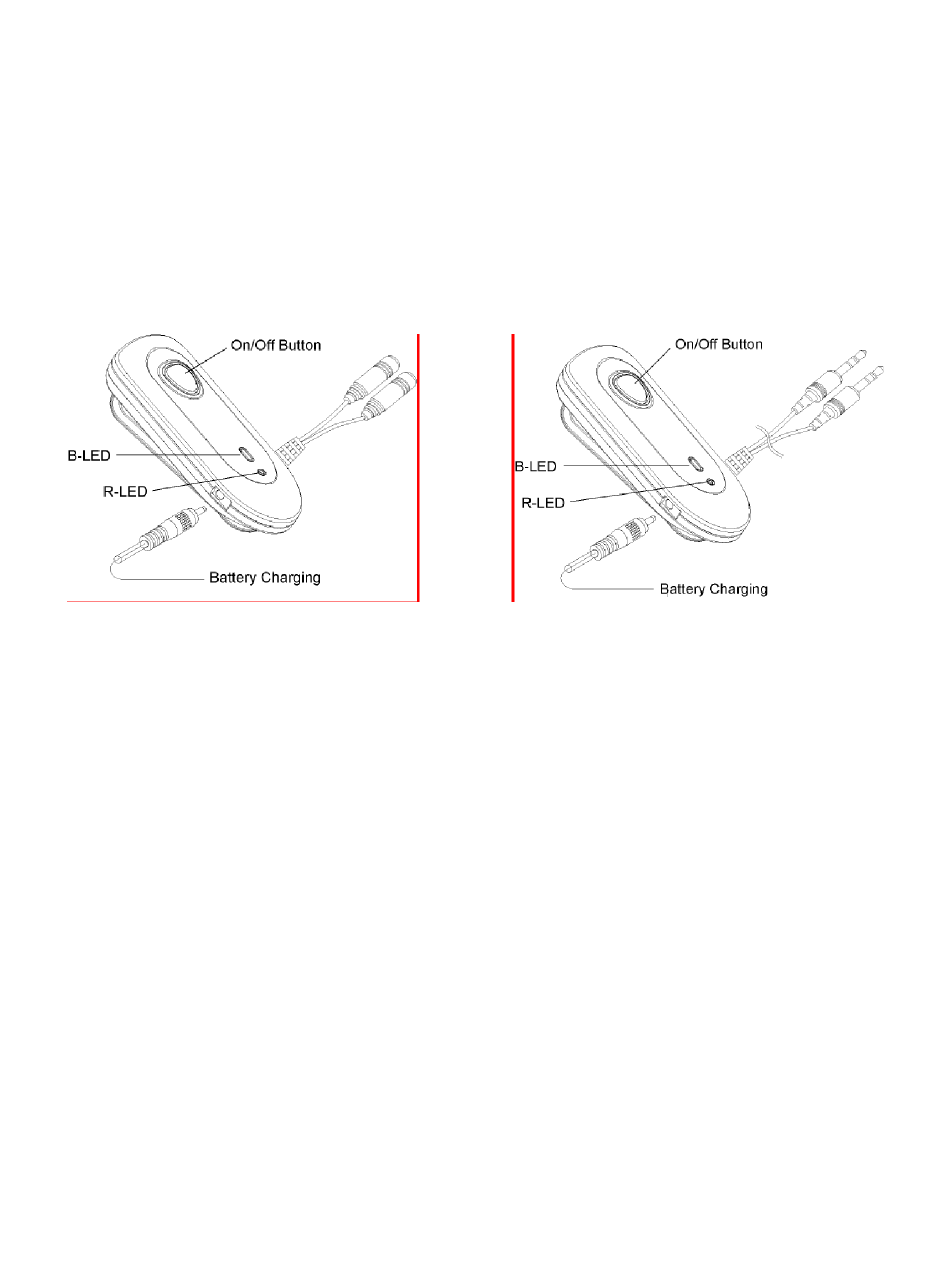

1. BASIC OPERATING INSTRUCTIONS
Our models FMK03 (http://www.speechware.be/en/verArticulo.php?id=1671) --and
FMK04-- feature a couple of Light Emitting Diodes (LEDs), which lights up in Blue
LED)
and Red
(R-LED)
B-LED
flashing twice quickly every 2 sec.: Power On and "Standby" (low consumption)
mode
B-LED
flashing once slowly every 2 sec.: "Link" (transmission) mode
B-LED/R-LED
flashing alternatively: "Pairing" mode to establish a connection for the
first time
R-LED
flashes quickly (while using it): Low battery mode
R-LED
lights on: Charging mode
R-LED
flashes twice quickly and stops: Power Off mode.
under Windows Vista or Windows 7
(without any other third party software!)
colour, with the following meaning:
(B-
Advertisement
Related Manuals for SpeechWare FlexyMike FMK03
Summary of Contents for SpeechWare FlexyMike FMK03
- Page 1 Connection of the FlexyMike Bluetooth Transmitter (FMK03) under Windows Vista or Windows 7 (without any other third party software!) 1. BASIC OPERATING INSTRUCTIONS Our models FMK03 (http://www.speechware.be/en/verArticulo.php?id=1671) --and FMK04-- feature a couple of Light Emitting Diodes (LEDs), which lights up in Blue LED) and Red...
- Page 2 2. INSTALLATION OF FULL DUPLEX BLUETOOTH TRANSMITTER (FMK03) UNDER WINDOWS VISTA OR WINDOWS 7 (WITHOUT ANY THIRD PARTY SOFTWARE) a) Put the FlexyMike Bluetooth Transmitter in "Pairing" mode (check above): press the On/Off button for about 5 s. and until the B-LED/R-LED flash alternatively.
- Page 3 d) When the Bluetooth Transmitter (FMK03) is automatically detected by Windows Vista or 7, after a couple of minutes, it appears in this screen. Click next:...
- Page 4 e) In this screen, left-click or select the second option:...
- Page 5 f) Insert the pairing code "1234" and press “Next”:...
- Page 6 g) Click “Close” in the last window:...
- Page 7 Now, your FlexyMike Bluetooth microphone is ready to be used under Windows Vista or B-LED flashing twice quickly every 2 sec. means the device is on and paired with the computer but not connected. 3. HOW TO CONNECT AGAIN THE FULL DUPLEX BLUETOOTH TRANSMITTER (FMK03) WHEN RESTARTING THE PC If you need to establish again the Bluetooth connection, after restarting the PC, follow the next steps:...
- Page 8 Double-click on the SpeechWare hands-free icon:...
- Page 9 c) If there is no connection, in the next window, press “Connect”. d) When the connection is established again, the window will show it: B-LED flashing once slowly every 2 sec. means we were successful and it's working fine. Otherwise, try to reconnect the device...
