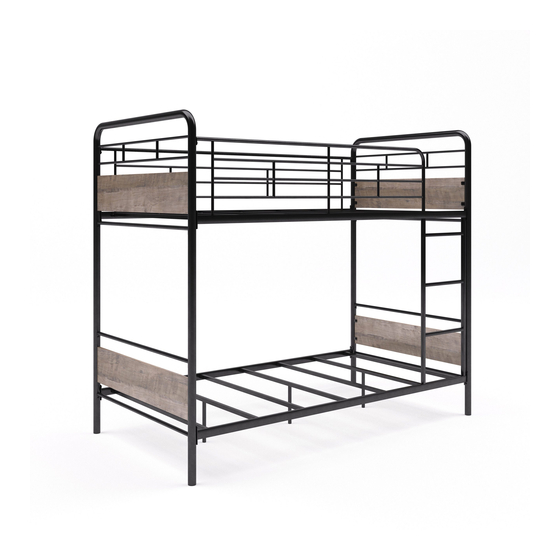

New Industrial Twin Over Twin Bunk Bed
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Stock # BH18-084-097-30
ADULT ASSEMBLY REQUIRED
www.whalenstyle.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2018-03-08 Rev. 0001-A Factory: CHEGRE
866-942-5362
LOT NUMBER:
DATE OF PURCHASE: / /

Advertisement

loading
Need help?

Need help?

Do you have a question about the BH18-084-097-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Better Homes and Gardens BH18-084-097-30

Summary of Contents for Better Homes and Gardens BH18-084-097-30

  • Page 1 LOT NUMBER: DATE OF PURCHASE: / / New Industrial Twin Over Twin Bunk Bed Stock # BH18-084-097-30 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions...
  • Page 2 ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL. STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed that are not designed for use with the bed;...
  • Page 3 TO HELP PREVENT SERIOUS OR FATAL INJURIES FROM ENTRAPMENT OR FALLS • Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed. • Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood of entrapment or falls.
  • Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Right Front / Left Back Post B- Left Front / Right Back Post C- Side Panel (Qty.
  • Page 5 ASSEMBLY INSTRUCTIONS 1/4" x 5/8” Bolt (12 used in this step) ① NOTE: Please follow the instructions carefully to ensure a safe and sturdy bed. Do not fully tighten the bolts until all rails and guardrails are attached. 1. Unpack the units and confirm that you have all hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 6 ASSEMBLING LOWER BUNK 1/4" x 1/2” Bolt (16 used in this step) ④ 4. Attach two Side Panels (C) to the metal tabs on both Posts (A and B) with eight 1/2” Bolts (4). 5. Repeat the same procedure to combine the remaining two Side Panels (C) with the other Posts (A and B) together.
  • Page 7 ASSEMBLY INSTRUCTIONS 1/4" x 5/8” Bolt (4 used in this step) ① 6. Fit the Cross Assemblies (E and F) into the Posts (A and B) and fasten in place with the 5/8” Bolts (1).
  • Page 8 ASSEMBLY INSTRUCTIONS 1/4" x 5/8” Bolt (19 used in this step) ① 7. Align and attach the Mattress Side Rails (G and H) and the Guardrails (I and J) between the Posts (A and B) with the 5/8” Bolts (1).
  • Page 9 ASSEMBLY INSTRUCTIONS 1/4" x 5/8” Bolt 1/4" x 1-1/4” Bolt (28 used in this step) (3 used in this step) ② ① 8. Attach three Support Legs (N) to the Mattress Support Slats (M) with three 1-1/4” Bolts (2). 9. Fasten the Mattress Support Slats (L and M) between the Side Rails (G and H) and the Guardrails (I and J) with the 5/8”...
  • Page 10 ASSEMBLY INSTRUCTIONS 1/4" x 5/8” Bolt 1/4" x 2-1/2” Bolt (2 used in this step) (2 used in this step) ③ ① 10. Align and attach the Ladder (K) to the bottom rail of Short Guardrail (J) with two 5/8” Bolts (1). 11.

  • Page 11: Care And Maintenance

    Care and Maintenance For everyday cleaning, chrome, brass, aluminum, and painted metal surfaces can be kept looking their best by wiping with a slightly damp, soft cotton cloth or vacuum cleaner brush. If soiled, wipe with clean sponge or cloth wrung out of water. Wipe dry with cloth or paper towel to avoid water spots.
  • Page 13 NÚMERO de LOTE: FECHA de COMPRA: / / Litera Industrial individual sobre individual Serie # BH18-084-097-30 ENSAMBLE REQUERIDO POR ADULTO Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne esté producto a la tienda donde lo compró. Por favor llame a nuestro departamento de ayuda al cliente teniendo su instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica:...
  • Page 14 UTILICE SIEMPRE LOS BARANDALES EN AMBOS LADOS LONGITUDINALES DE LA LITERA SUPERIOR. SI VA A COLOCAR LAS LITERAS PEGADAS A LA PARED, EL BARANDAL QUE CORRE A LO LARGO DE LA CAMA SE DEBE COLOCAR CONTRA LA PARED PARA PREVENIR ENCIERROS ENTRE LA CAMA Y LA PARED.
  • Page 15 PARA AYUDAR A PREVENIR LESIONES GRAVES O MORTALES POR ENCIERROS O CAÍDAS • Siga la información de advertencia que aparece en la estructura extrema de la litera superior y en la caja. No quite la etiqueta de advertencia de la cama. •...
  • Page 16 Lista de partes y material de ferretería Por favor lea completamente las instrucciones y verifique que estén todas las partes antes de iniciar el ensamblado. A- Poste derecho frontal / Izquierdo posterior B- Poste izquierdo frontal / Derecho posterior C- Panel lateral (Cant.
  • Page 17 INSTRUCTIVO DE ENSAMBLE Perno de 1/4" x 5/8” usados en este paso ① NOTA: Por favor siga las instrucciones para asegurar de que la cama sea segura y robusta. No apretar completamente los pernos hasta que todos los rieles estén adjuntados. 1.
  • Page 18 ENSAMBLE DE LA LITERA INFERIOR Perno de 1/4" x 1/2” usados en este paso ④ 4. Adjuntar 2 paneles laterales (C) a los resguardos de metal de ambos postes (A y B) con 8 pernos de 1/2” (4). 5. Repetir el mismo procedimiento para combinar los 2 paneles laterales restantes (C) con los otros postes (A y B).
  • Page 19 INSTRUCTIVO DE ENSAMBLE Perno de 1/4" x 5/8” usados en este paso ① 6. Encajar los ensambles de soporte (E y F) en los postes (A y B) y sujetar en su lugar con los pernos de 5/8” (1).
  • Page 20 INSTRUCTIVO DE ENSAMBLE Perno de 1/4" x 5/8” usados en este paso ① 7. Alinear y adjuntar los rieles laterales del colchón (G y H) y los rieles de seguridad (I y J) entre los postes (A y B) con los pernos de 5/8” (1).
  • Page 21 INSTRUCTIVO DE ENSAMBLE Perno de 1/4" x 5/8” Perno de 1/4" x 1-1/4” usados en este paso usados en este paso ② ① 8. Adjuntar 3 patas soporte (N) a las tablillas de soporte del colchón (M) con 3 pernos de 1-1/4” (2). 9.
  • Page 22 INSTRUCTIVO DE ENSAMBLE Perno de 1/4" x 5/8” Perno de 1/4" x 2-1/2” usados en este paso usados en este paso ③ ① 10. Alinear y adjuntar la escalera (K) al riel inferior del riel de seguridad corto (J) con 2 pernos de 5/8” (1). 11.

  • Page 23: Mantenimiento Y Cuidados

    Mantenimiento y Cuidados Para limpieza diaria, superficies de cromo, de cobre, de aluminio, y de metal pintados se pueden mantener viéndose bien limpiando con un patio de algodón suave y húmedo o con un cepillo de aspiradora. Si mojado, limpiar con una esponja limpia o con un paño sacada del agua. Secar con un paño o un papel de cocina para evitar puntos causados por agua.
