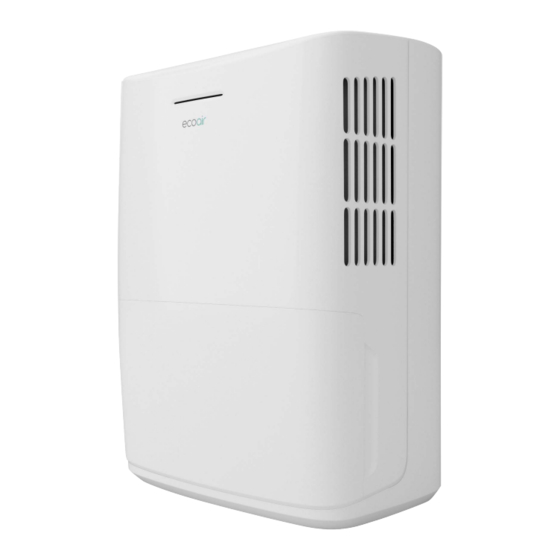

- Page 1 ARION 26L POWERFUL ULTRA ENERGY EFFICIENT DEHUMIDIFIER...
-
Page 2: Bs Plug Wiring
Wiring for a 13 Amp Plug (BS1363) Please note. The Earth Terminal is marked with the letter E or Earth Symbol. Earth - (Green/Yellow) Neutral - N (Blue) Live - L (Brown) © 2017 EcoAir All rights reserved... -
Page 3: Low Humidity
WELCOME Thank you and congratulations for choosing an EcoAir dehumidifier to help you improve the air quality within your home. Inside you will find many helpful tips on how to use and maintain your dehumidifier efficiently. Just a little preventative care can save you money and prolong the life of your dehumidifier. -
Page 4: Key Features
Laundry mode. In Laundry mode, the dehumidifier will run continuously. Power Key - Turn dehumidifier on ON/OFF. BACK FRONT Control Panel Rear Filter Side Grille Continuous Drainage Water Tank Water Level Indicator Power Cord Castors © 2017 EcoAir All rights reserved... -
Page 5: Quick Start Up
When turning on the dehumidifier, if your desired humidity setting is higher than the actual humidity, the dehumidifier will run on fan-only mode to sample the air for 5-10 minutes, to sense the ambient humidity before switching off automatically. © 2017 EcoAir All rights reserved... - Page 6 10 seconds to alert the water tank needs emptying or placing back into position. www.ecoairdirect.com • When the water tank is full or removed, the con- trols are disabled. © 2017 EcoAir All rights reserved...
-
Page 7: Maintenance
Store upright in a cool dry place. Caution: • Do not wash the dehumidifier or immerse in water. Do not expose to direct sunlight. • Do not let water drip into the air inlet or outlet. © 2017 EcoAir All rights reserved... -
Page 8: Emptying The Water Tank
The Water Full light indicator illuminates if the water tank is not correctly in position. • Do not tilt the dehumidifier when removing the water tank. • If the water tank is removed whilst the dehumidifier is running the fan will continue to run for 3 minutes. © 2017 EcoAir All rights reserved... -
Page 9: Continuous Drainage
Run the drain hose downwards. The drain hose can not be above the drainage joint. This will cause flooding of your dehumidifier. Make sure the drain hose is not pressed in any way. When removing the drain hose, prepare a container to collect water from nozzle. © 2017 EcoAir All rights reserved... -
Page 10: Caster Installation
Repeat the same process as Step 5 for other 3 casters NOTE: • Keep the dehumidifier balance during installation to prevent the unit from falling. • 4 casters must be installed well before operating the dehumidifier. © 2017 EcoAir All rights reserved... -
Page 11: Important Safety Instructions
Children should be supervised to ensure that they do not play with the dehumidifier. READ & SAVE THESE IMPORTANT SAFETY INSTRUCTIONS FOR FUTURE REFERENCE © 2017 EcoAir All rights reserved... -
Page 12: Troubleshooting
Area to be dehumidified is too large The capacity of your dehumidifier may not be adequate. Too Much In the unlikely event of a problem with your product, please refer in the first instance to: ECOAIR TECHNICAL SUPPORT www.ecoair.org/support © 2017 EcoAir All rights reserved... -
Page 13: Specifications
SPECIFICATIONS MODEL ARION 26L Operating Temperature Range 5°C ~ 35°C Extraction Rate at 26.7°C, 60%RH 13.97 Litres per day Extraction Rate at 30°C, 80%RH 26 Litres per day Water Tank Capacity 4.2 Litres Power Supply 220 - 240V~50Hz Power Input... -
Page 14: Guarantee Card
However, we will always do our best to assist you in your new country of residence. EcoAir authorises no person to change or add to any obligations under this guarantee. Obligations for service and parts under this guarantee must be performed by EcoAir or an authorised service company. - Page 16 C340 www.ecoair.org 66129926723 © 2017 EcoAir All rights reserved...
