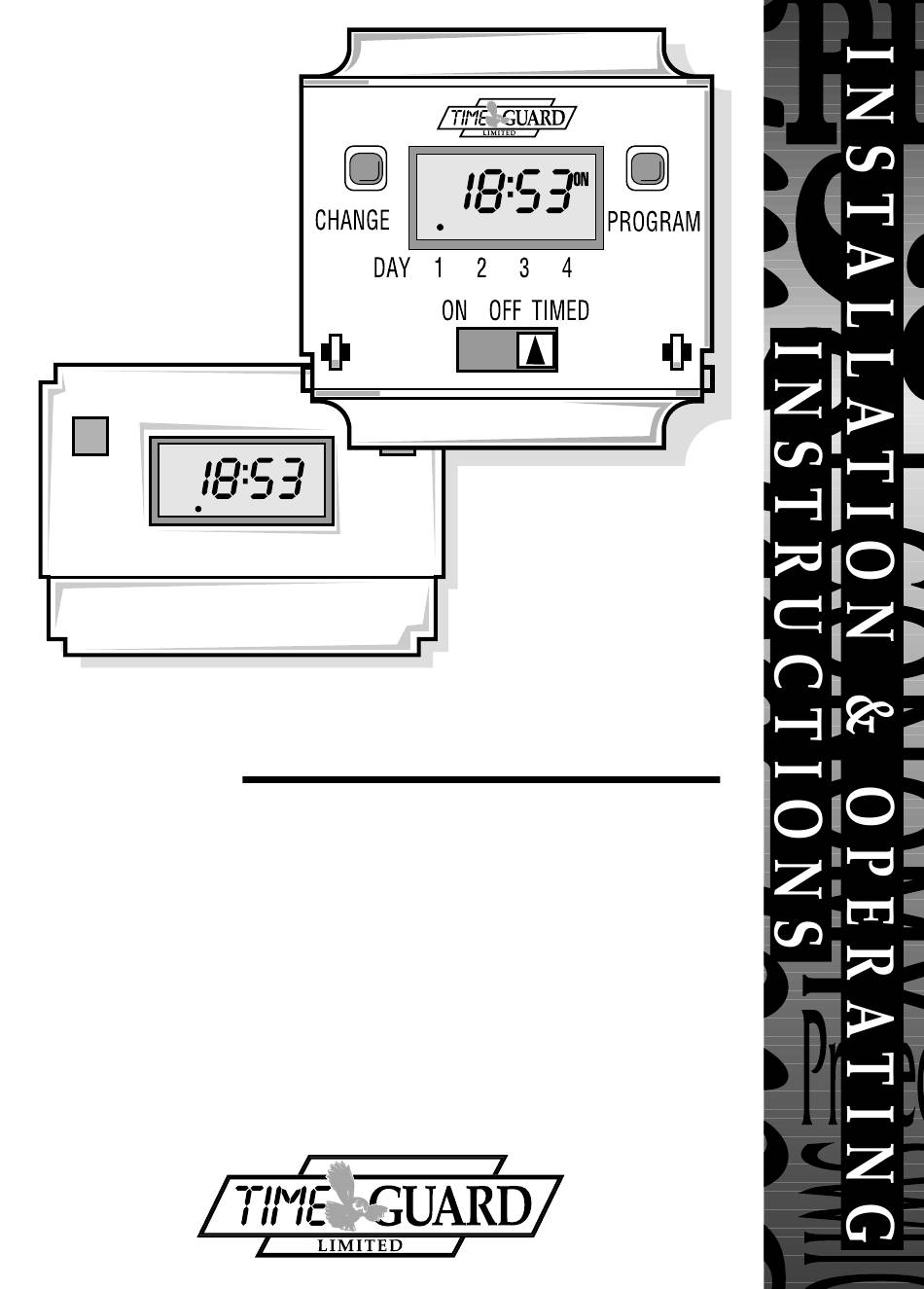

- Page 1 PanelMASTER Timer Modules Without Housing MEU11 (24 Hour) MEU17 (7 Day) With Housing (Giving Panel Mount Capability) EMU11 (24 Hour) EMU17 (7 Day)
- Page 2 1. Physical Arrangements & Installation Instructions MEU 11 & MEU 17 Figure 1 Metal Hydride Battery Change Programme button button Pin Header Engineering drawing can be supplied on request EMU 11 & EMU 17 Tamper proof Bezel for panel Panel mount Slide switch allowing Surface cover...
-
Page 3: Surface Mounting
Fig 2 Installation - Panel Mounting 67mm For panel mounting (in panels up to 7.0mm thick with the cut-out as shown in figure 2) the EMU11/17 should be snapped into the bezel supplied and secured in place by the use of the 2 R 3.5mm No. -
Page 4: Specifications
2. Specifications MEU11 & EMU11 4 ON/OFF programmes Easy 2 button programming Change/Override until next programme Rechargeable Metal Hydride battery back-up with 1000 hours reserve Requires only an external diode, resistor and relay to switch mains Temperature range 0° to 55°C Operation The programme button advances programme steps and the change button the hours and minutes which flash. - Page 5 MEU17 & EMU17 6 ON/OFF programmes, daily, weekly, weekend or weekday options Easy 2 button programming Change/Override until next programme Rechargeable Metal Hydride battery back-up with 1000 hours reserve Requires only an external resistor, diode and relay to switch mains Temperature range 0°...
- Page 6 All Types Connections Pin 1: Common. Pin 2: Positive battery charge plus relay current. Min 0.50 mA (No relay). Pin 3: Relay connection. Pin 4: Output & relay connection. NPN open connector. Max 10 mA, 47 V A Molex 7720 4 way connector or similar is recommended. MEU11 and MEU17 - Typical Usage The examples in figs 6, 7 and 8 show the module driving a Shrack 48V relay with power derived from the mains.
-
Page 7: Normal Operating Mode
3. EMU11 & MEU11 Programming Instructions Change Button Programme Button sets Hours and used to select the Minute times and clock time and the 4 self cancelling ON/OFF override programme times and to review them once set Easy view 24 hour digital Output Status clock/timer... -
Page 8: Programming Sequence
Programming sequence ..Setting clock Programme 3 ON Programme 1 ON Programme 3 OFF Programme 1 OFF Programme 4 ON Programme 2 ON Programme 4 OFF ..Programme 2 OFF Operating Mode Note: Button pauses greater than 1 minute during programming will result in automatic return to the operating mode. - Page 9 iii Press <Program> button once - the first ON time is now set and display shows ready for the first OFF programme time. iv Now set the hrs and minutes as before. v Repeat steps i to iv to set the remainder of the 3 ON/OFF times as required. Note: Any unused ON/OFF programme should be skipped until the display shows normal operating mode.
- Page 10 4. EMU17 & MEU17 Programming Instructions Programme Button Change Button used to select the sets Day(s), Hours clock time and the 6 and Minute times ON/OFF programme and self cancelling times and to review override them once set Output Status Easy view 24 showing unit hour digital...
- Page 11 1 To Reset Display To clear programmes from memory and reset the time controller press and hold down both buttons until the display goes blank. Release buttons and display will fill with its complete range of characters and then clear to show clock and day 1 symbol flashing.
- Page 12 3. To Set Programme ON/OFF Times (after clock setting) Programme 1 ON time Press <Change> button to advance the day flag to the required day(s) settings which are: 1 2 3 4 5 6 7 = 5 days (Weekdays) Mo Tu We Th Fr = 2 days (Weekend) Sa Su = 7 days (Everyday) Mo Tu We Th Fr Sa Su = Individual days Starting with Monday through to Sunday...
- Page 13 4. Programme Review To fast review the set programmes or for quick exit to normal operating mode - press and hold the <Program> button. 5. Initiating Programme Mode This can be initiated any time during the normal operating mode. Press <Program>...
