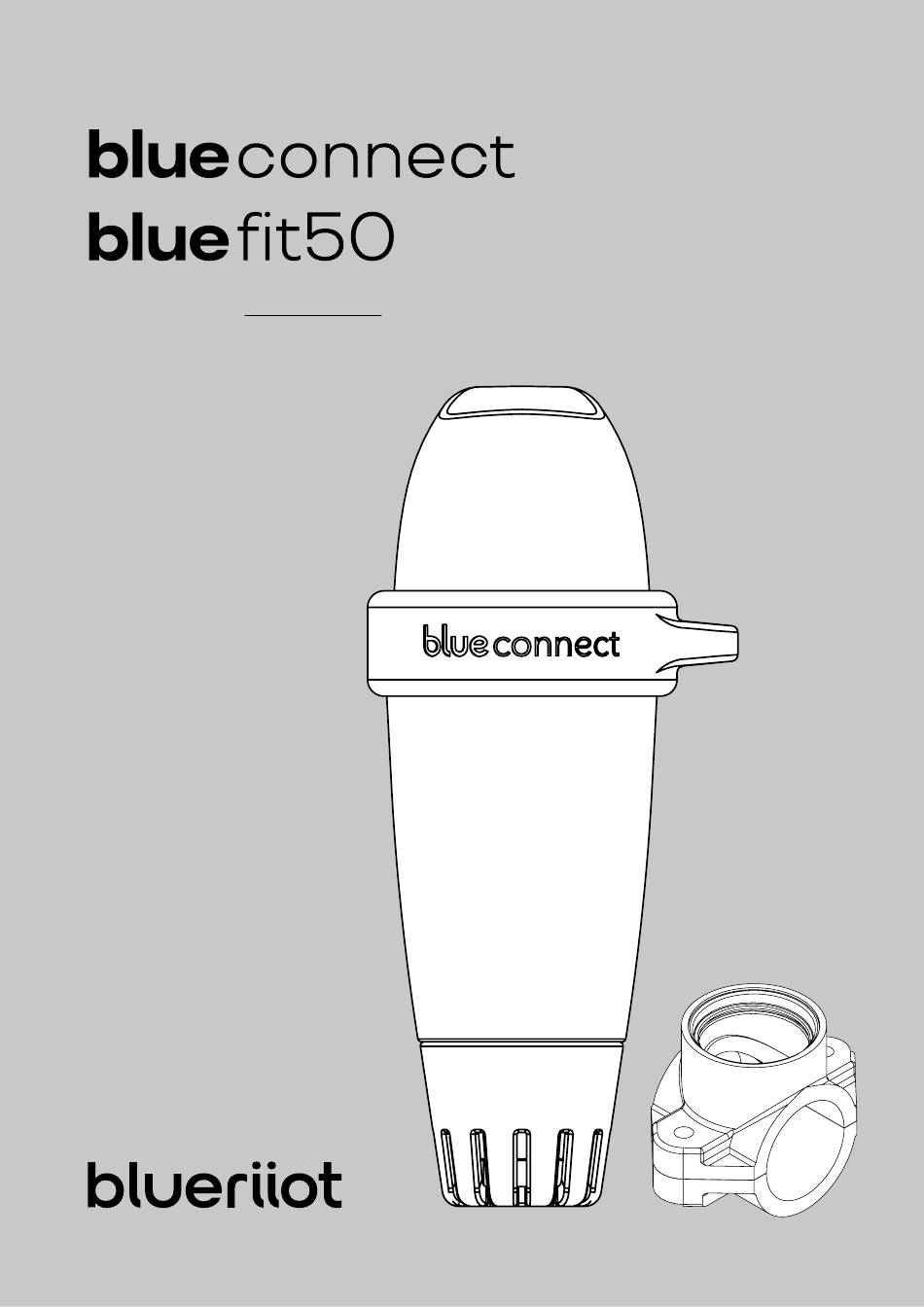

  • Page 1 U S E R M A N U A L...
  • Page 2 A. Overview Blue Connect is a connected device for pool or spa water analysis (manual or automatic). The results of this analysis are then communicated to you on the “Blueriiot“ app (available on smartphone and tablet, compatible with Android and iOS). If the device detects that one of the parameters is incorrect, the app provides you with the instructions to follow to regulate and stabilize this parameter in order to maintain a healthy and balanced water.

  • Page 3: Content Of The Box

    Blue Fit50: The hose clamp for installing Blue Connect on the technical room pipes (see p.17) On the back of the quick start guide and on Blue Connect’s storage cap. Blue Fit50 is a Blue Connect accessory. It is included in the Blue Connect Plus, or sold separately.

  • Page 4: App Installation

    Settings: Allows you to configure the settings for your pool and Blue devices, as well as have access to help and technical support. You will receive notifications with Blue Connect Plus or Blueriiot Pemium subscription. The app is subject to continual improvements and changes.
  • Page 5 Empty the storage cap, rinse in clear water and store it. Sigfox is only activated with Blue Connect Plus or when subscribing Blueriiot Premium. Sigfox® is a telecommunications network specialised in the Internet of Things. It is a cellular network that does not interfere with domestic Wi-Fi. You can check if your swimming pool is covered by the Sigfox®...
  • Page 6 The Sigfox® network connects automatically and sends measurements at regular intervals Blue Fit50 is a Blue Connect accessory. It is included in the Blue Connect Plus, or sold separately. The Sigfox network connects with Blue Connect Plus or the Blueriiot Premium subscription.
  • Page 7 Blue Connect to connect to your Wi-Fi network. For further information, visit our website or contact your reseller. Feel free to check our videos tutorials on our YouTube channel (Blueriiot) or our FAQ, or to contact us via our online form available on our website blueriiot.com.

  • Page 8: Battery Replacement

    In the app, in “Settings“ » “My Blue Connect“ » “Probe settings“, press “Calibrate Blue Connect “. If you can choose among several products, select the calibration solution you will use. Place the calibration solution in the storage cap and screw it to the device. Then, press “Next”.
  • Page 9 Installation: Take out the device from the water, remove the rubber ring and the usage cap and place Blue Connect on the storage cap. Wipe it and start the procedure in a dry and clean place. Remove the adhesive tape and unscrew the upper part of the device. This is a left-hand thread.
  • Page 10 Place the new battery at the bottom of the cavity until it is secure. Then, plug in the connector. Place the new seal supplied with the battery on the screw thread of the upper part of the device. Close the upper part. This is a left-hand thread. Screw it counter-clockwise. Replace the ring.

  • Page 11: Probe Replacement

    C. Probe replacement The probe needs to be replaced approximately every two years . Please contact your reseller to get a new one. NB: To ensure maximum longevity of the probe, keep it for as long as possible in a humid environment. If you need to take the device out of the pool, screw it on storage cap with KCl (saturated potassium chloride), or pH4, or as a last resort, running water with a good amount of cooking salt as the probe should not be left dry.
  • Page 12 Using the screwdriver, unscrew the screw located on the edge of the nut. If there are no screws, proceed to the next step. Unscrew the nut with the cloth. If you struggle to unscrew the nut, use adjustable pliers by placing them on this exact spot (Image A).
  • Page 13 Remove the probe making sure to keep Blue Connect upright (with the top of the device above and the bottom part below) so that residual water does not penetrate into the product. Be sure to remove the seal and discard it. It could be stuck inside. Wipe off residual water from the opening area of the Blue Connect and inside the hole with the cloth.
  • Page 14 Screw the nut all the way onto the device. Do not hesitate to use a cloth to tighten it properly to avoid hurting your hand. Using the screwdriver, screw the screw (all the way but without forcing) on the edge of the nut. If there are no screws, proceed to the next step.
  • Page 15 D. Putting Blue Connect into standby mode for winterization/storage Winterization: Remove Blue Connect from the water. Remove the usage cap. Activate the Internet (Wi-Fi or 4G) and Bluetooth® on your smartphone. NB: Stay close to the device throughout the whole standby process. In the app, in “Settings”...

  • Page 16: Technical Characteristics

    In “Settings“ » “My Blue Connect“, press on “Activate Blue Connect”. See “Blue Connect installation“ from point 2. Feel free to check our videos tutorials on our YouTube channel (Blueriiot) or our FAQ, or to contact us via our online form available on our website blueriiot.com.

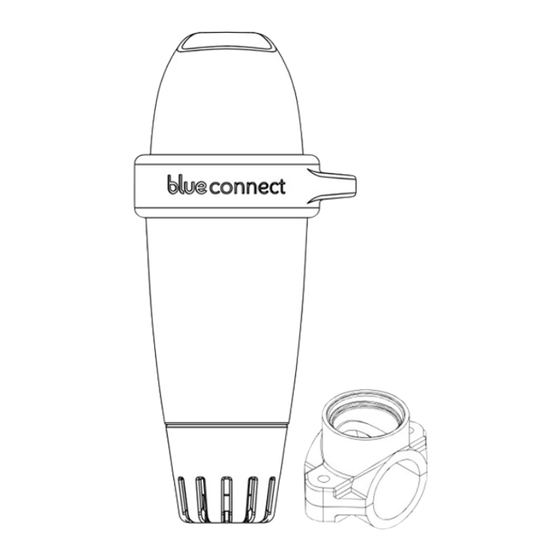

  • Page 17 Introduction A. Overview The Blue Fit50 is a hose clamp compatible with Blue Connect. It allows to install Blue Connect on the technical room pipes. Note: Blue Fit50 is a Blue Connect accessory. It is included in the Blue Connect Plus, or sold separately.
  • Page 18 NB: Feel free to ask your pool specialist for advice in case of any doubt. A. Find the correct location Make sure to always place the Blue Fit50 after the filter (to avoid damaging the probes) and before your product injection system or electrolysis (to avoid altering the measures taken by the Blue Connect).

  • Page 19: Winterization Procedure

    Blue Connect again. In the app, in “Settings“ » “My Blue Connect“ » “Location“, activate the Blue Fit50 option. In the app, in “My pool“, tap “Filtering pump“ and insert the schedule for your pump .

  • Page 20: Technical Features

    Validate the standby mode and store Blue Connect sheltered from frost. Feel free to check our videos tutorials on our YouTube channel (Blueriiot) or our FAQ, or to contact us via our online form available on our website blueriiot.com.

  • Page 21: General Information

    Registered trademark The Blueriiot trademark and its respective logos are registered by Riiot Labs SA. Fluidra as well as their logos are trademarks or registered trademarks of Fluidra S.A.

  • Page 22: Declaration Of Conformity

    Declaration of conformity To obtain a copy of the FCC, CE declaration of conformity, visit our website www.blueriiot.com/legal.
  • Page 23 - Connect conformity is available at the following internet address: the equipment into an outlet on circuit different from that to www.blueriiot.com/legal which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
