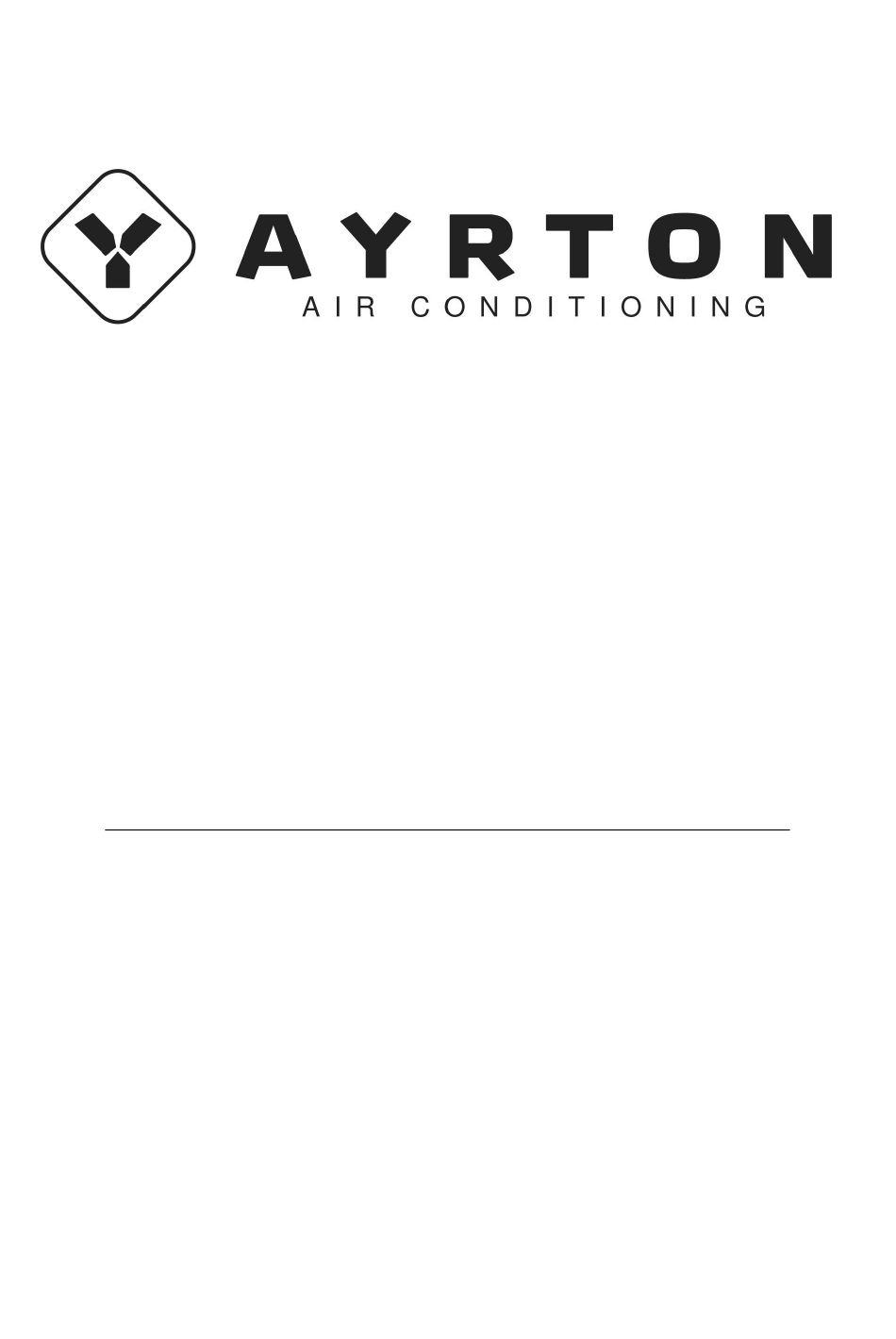

  • Page 1 AYD-20 Dehumidifier User manual...
  • Page 2 Original...

  • Page 3: Operation Area

    Operation Area  This dehumidifier is intended for indoor residential applications only.It should not be used for commercial or industrial applications.  Place the dehumidifier on a smooth and level floor.  A dehumidifier operating indoor will have no effect in drying an adjacent enclosed area, such as a closet.

  • Page 4: Safety Precautions

    Safety Precautions  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Parts Name

    Parts Name Front Side CONTROL PANEL RESPIRATION LAMP FRONT GRILLE WATER BUCKET ROLLERS Back Side AIR FILTER POWER PLUG...
  • Page 6 Instruction of Caster Wheel 1. Nip the groove at both sides of bucket and pull the bucket out by the arrow shown direction. (As shown in fig.a) 2. Take out accessory box (there are 4 castors). 3. Refit the bucket by the arrow shown direction, then the unit is ready to be electrified and turned on.

  • Page 7: Check Before Operation

    Check Before Operation Before operation, please first check whether float is properly placed. Below are the checking steps: 1. Hold the handles on both sides of the water bucket and pul lit out following the arrow direction. 2. Check whether float in the water bucket is properly placed. It might have been moved a little after long-time transportation.

  • Page 8: Operation Method

    Operation Method Bucket full Living light indicates space Sleeping bucket needs mode space to be emptied Lock on mode on or it is not in Power on Clean the filter indicator High, mid and low indicator indicator the proper indicator indicator light light fan indicator light...
  • Page 9  FAN SPEED Button Pressing this button can set fan speed circularly as: High, Medium, Low. Corresponding indicator will be on for each fan speed.  TIMER Button Press this button to set Timer On or Timer Off (Timing range 0.5~24h). ...
  • Page 10 Other Instructions 1. Alarm Warning If bucket is full or not locked into place for over 3min, buzzer will go off for 10s to remind you to empty bucket or put it back into the correct place. 2. Auto Stop When bucket is full, removed or not placed correctly or the humidity is 5% lower than the set humidity, unit will automatically stop.

  • Page 11: Drainage Option

    Drainage Option Option 1: Emptying Manually Notes:  Do not remove the bucket when unit is in operation or has just stopped. Otherwise it may cause some water to drip on the floor.  Do not use the hose if using water bucket to collect water. When the hose is connected, water will be drained out through it instead of into the bucket.
  • Page 12 Option 2: Gravity Drain Hose 1. Hold the handles at both sides of water tank and then pull the water tank along the arrow direction. Note: The drainage joint is with sealing gasket. Before installing the drainage joint, reinstall the gasket on the drainage joint if it dropped.
  • Page 13 4. Replace the bucket. Make sure the drain hose goes through the bucket's drain hole and is placed downward. Lead the hose to the floor drain and then cover the hole with a lid. Note that drain hose should not be pressed, otherwise water can not be drained out.. Note: When you don't use the drainage pipe, the drainage joint must be removed.

  • Page 14: Clean And Maintenance

    Clean and Maintenance Warning:  Before cleaning, turn off the dehumidifier and disconnect power. Otherwise it may lead to electric shock.  Do not wash the dehumidifier with water, or it may lead to electric shock.  Do not use volatile liquid (such as thinner or gasoline) to clean dehumidifier. Otherwise it will damage unit’s appearance.

  • Page 15: Long-Time Storage

    (3) After cleaning, replace the drain lid and handle and make sure the float of water bucket is placed properly. The side with foam plastic should be beneath the drain Foam lid. Do not remove the foam plastic on the float. Plastic Float 3.

  • Page 16: Troubleshooting

    Troubleshooting  Not all the following problems are malfunctions. Problem Possible Causes  Unit is operating in an area where temperatur eis higher Dehumidifier is not operating. than 32 ºC or lower than 5 ºC. Controls can not be set. ...
  • Page 17  Dehumidifier does not start. Problem Possible Causes Solution  Check if power is lost. If yes, wait for the power to restore.  If not, check whether the power  Power is not supplied for circuit or power socket has been the dehumidifier ort he Power indicator is not damaged.

  • Page 18: Wiring Diagram

    Power Room tem. sensor Tube tem. sensor Water switch YEGN Yellow-Green Fuse 3,15 A TECHNICAL SPECIFICATION Model AYD-20 Rated Voltage 220–240 V~ Rated Frequency 50 Hz Rated Power 340 W Moisture Removal (at 30 °C, 27,1 °C) 20 liters/day 5–35 °C...
  • Page 19 Producer: SINCLAIR CORPORATION Ltd., 1-4 Argyll St., London W1F 7LD, UK, www.sinclair- world.com This product was manufactured in China (Made in China). REPRESENTATIVE, TECHNICAL SUPPORT SINCLAIR Global Group s.r.o. Purkyňova 45 612 00 Brno Czech Republic Tel.: +420 541 590 140 Fax: +420 541 590 124 www.ayrton-world.com info@ayrton-world.com...
