TRENDware TE100-H8E User Manual

Quick Installation Guide

Note : Please read this quick installation Guide first.

PACKAGE CONTENTS

The TE100-H8E Fast Ethernet 100Base-TX 8-port Mini Hub
AC to DC (+12VDC 800mA) Power Adapter*
This Quick Installation Guide
*
Model: WP 481012D(for USA), WP481012DJ(for JPN)
WP 481012DV(for EUR), AM-12800B(for UK)

HARDWARE DESCRIPTION

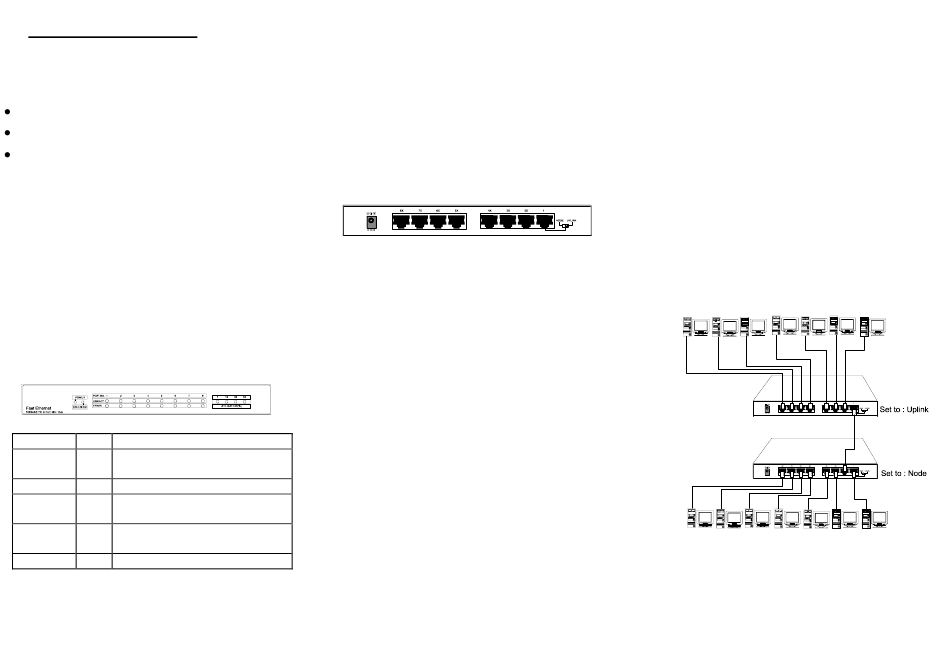

The Front Panel

The front panel indicates LEDs status. The LED indicators monitor
the status of each port and connected segments. There are 5
different LEDs on the front panel; power (PWR), collision (COL),
Link/Activity, Error and Utilization.
LED Function Color Description
Power Green Lit : Power On
Unlit : Power Off
Collision Amber Lit : Data collision occurs
Link/Activity Green Lit : Indicates connected segment
Glitter : Receiving data
Error Yellow Flashing : Data error occurs
Lit : Indicates partition and port isolation
Utilization Green Indicates hub traffic

The Rear Panel

The rear panel contains the DC power socket, 8 Shielded Twisted-
Pair (STP) ports and one uplink slide switch.
Use any one of the STP ports for connecting to a 100Base-TX node
using Category 5 UTP/STP cabling. The uplink port provides
cascading capability to the second 100Base-TX Fast Ethernet hub.
The DC power socket is capable of accepting DC power input from
+9V to +12V.

HARDWARE INSTALLATION

Quick Installation Procedure

1. Place the TE100-H8E on a smooth surface.
2. Connect AC/DC power adapter to the wall jack and connect
power adapter's plug to the DC power socket on the hub.
3. Connect workstations to the TE100-H8E by using Category 5
UTP/STP cabling.
Distance between the hub and the workstations can be no
more than 100 meters.
4. Connect each device (up to 8) to the TE100-H8E using the
same procedure in Step 3.

Uplink Multiple Hubs

If you would like to connect more than 8 Fast Ethernet devices, you
can use the uplink port cascading to another hub. In compliance with
IEEE802.3u Class II specification, two repeaters can be cascaded
using 5-meter cable in a single collision domain.
1.
Connect a Category 5 UTP/STP cable to the Uplink port # 1 of
the first TE100-H8E. Uplink Switch should be set to Uplink
mode.
2.
Connect other end of the cable to any available ports on the
second TE100-H8E. Note: If port 1 is used, make sure the
Uplink Switch is set to Node mode.
3.
Connect workstations by using Category 5 UTP/STP cabling.
4. Connect each device (up to 8) to the TE100-H8E using the
same procedure in Step 3.
5.
Connect AC/DC power adapter to the wall jack and connect
power adapter's plug to the DC power socket on the hub.
Do not connect port # 1 of the first hub to port # 1 of the second
hub when both Uplink switches is set to the same mode.
