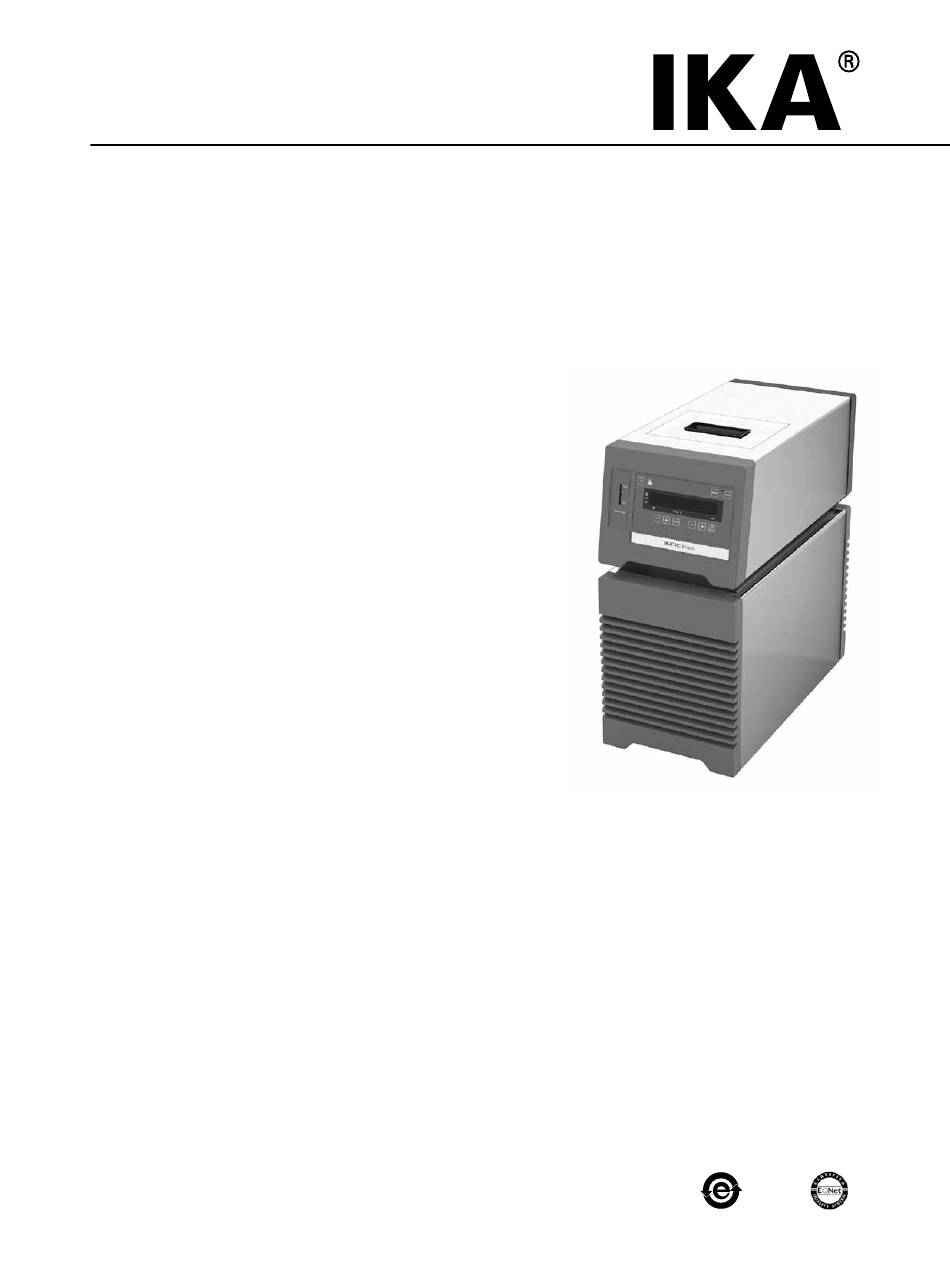

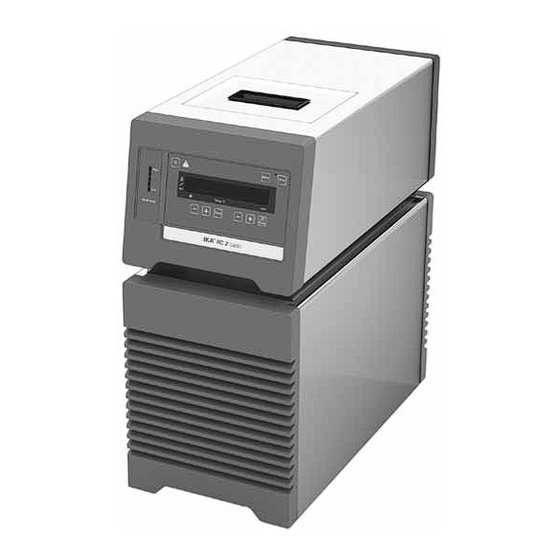

- Page 1 20000004342 RC 2_112014 RC 2 basic ® Operating instructions Reg.-No. 4343-01...
- Page 2 Fig. 2 Fig. 1 Item Designation Operator panel and display Mains switch Power socket Venting grid Filling lid Pump connection IN Pump connection OUT Overflow Backflow RS 232 port USB port Handle...
-
Page 3: Table Of Contents
Delivery scope ..............................6 Preparations ..............................6 Setting up ................................ 6 Connecting the tubings ............................ 6 Filling and draining ............................7 Fluid (Standard information for IKA fluid) ....................... 8 ® Moving the device ............................9 Operator panel and display ........................9 Commissioning ............................10 Menu settings ............................11... -
Page 4: Ec Declaration Of Conformity
• The voltage stated on the type plate must correspond to • Process pathogenic material only in closed vessels under the mains voltage. a suitable fume hood. Please contact IKA application ® • The device can only be disconnected from the mains sup- support if you have any question. -
Page 5: Fluids
- Laboratories -Schools - If the device is operated with accessories that are not - Pharmacies - Universities supplied or recommended by IKA ® - If the device is operated improperly or in contrary to the ® specifications. - If the device or the printed circuit board are modified by... -
Page 6: Unpacking
Unpacking • Unpacking: • Delivery scope: - Please unpack the device carefully - RC 2 basic Refrigerated Circulators - In the case of any damage a detailed report must be - Mains cables sent immediately (post, rail or forwarder). - Hose olive NW 12 (2 pieces) - Operating instructions - Warranty card. -
Page 7: Filling And Draining
• Filling and draining: - Before filling the fluid into the bath, open the venting grid as indicated in following figure. Low Level High Level Red (High Level) Red (Low Level) Fig. 6 - Check and make sure that the drain valve is closed (the stop position in clockwise direction, see Fig. -
Page 8: Fluid (Standard Information For Ika ® Fluid)
• Fluids (Standard information for IKA fluid): ® ® Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF.EG28.N10.80.8 -10 ... 80 -10 … 80 CF.EG39.N20.80.16 -20 …... -
Page 9: Moving The Device
• Moving the device: Empty all fluid in the bath before moving device from one place to other place. The device can be lifted up and moved by using the top handles or the bottom handles (12, see Fig. 1). It can also be moved on flat surface by lifting and push- ing the front of the device. -
Page 10: Commissioning
Commissioning Before commissioning, make sure Then the device enters standby status and is ready for NOTICE that the device has not been moved operation. for one hour. Change the temperature setting with “Temp (+)“ button Check whether the voltage specified on the type plate (C) or “Temp (-)“... -
Page 11: Menu Settings
Menu settings • Menu structure: Default settings Activated MODE 40 °C Maximum temperature (HI T) -20 °C Minimum temperature (LO T) 3200 rpm Maximum speed (HI R) 1000 rpm Minimum speed (LO R) Fluid type (FLUI) Menu Activated The type of temperature PID control arithmetic (AUTO) AUTO 1 Proportional coefficient of PID (Kp 1) AUTO 0... -
Page 12: Temperature Control Type (Auto)
• Temperature control type (AUTO): Proportional coefficient of PID (Kp 1) AUTO 1: AUTO 1 is the default setting. The default PID The proportional coefficient Kp is the controller ampli- settings are used automatically. fication and determines how strongly the control devia- Cooling down curve in AUTO 1 control (AUTO 1): tion (the difference between the target temperature and actual temperature) directly affects the control variable... -
Page 13: Interface And Output
- Transmission speed: 9600 bit/s. - Data flow control: none USB device drivers: - Access procedure: data transfer from the stirrer machine to First, download the latest driver for IKA ® devices with USB the computer takes place only at the computer’s request. - Page 14 - The device sends only at the computer’s request. Even items of laboratory control equipment, rev. 1.1). fault indications cannot be sent spontaneously from the The NAMUR commands and the additional specific IKA ® device to the computer (automation system).
-
Page 15: Maintenance And Cleaning
RV 10.5002 Filter H.PVC.12 PVC hose (nominal width 12) PC 1.1 Cable (RS 232) H.SI.8 Silicone hose (nominal width 8) USB cabel A - Micro B 2.0 H.SI.12 Silicone hose (nominal width 12) Labworldsoft ® See more accessories on www.ika.com. -
Page 16: Technical Data
Technical data Nominal voltage 230 ± 10% / 115 ± 10% Frequency 50 / 60 Max. input power Working temperature range °C -20 ... RT Operating temperature range (with external heating) °C -20 ... + 40 Temperature stability – internal temperature ±... -
Page 17: Warranty
Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ® period is 24 months. For claims under the warranty please apply to faults resulting from improper use, insufficient contact your local dealer. You may also send the machine... - Page 18 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)1245 600560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
