Firmware: Local Port / Telnet Configuration
PWR
General Information
This document describes how to configure
SiteVu remote units using the local port
(service port) via USB and/or using the Telnet
option over Ethernet.
Any VT100 compatible Telnet client software
and serial communication software may be
used to communicate to the SiteVu remote unit.
Both configuration options provide a full text-
based user interface for configuring the
SiteVu remote unit.
Noran Tel
a subsidiary of Westell, Inc
Noran Tel
a subsidiary of Westell, Inc.

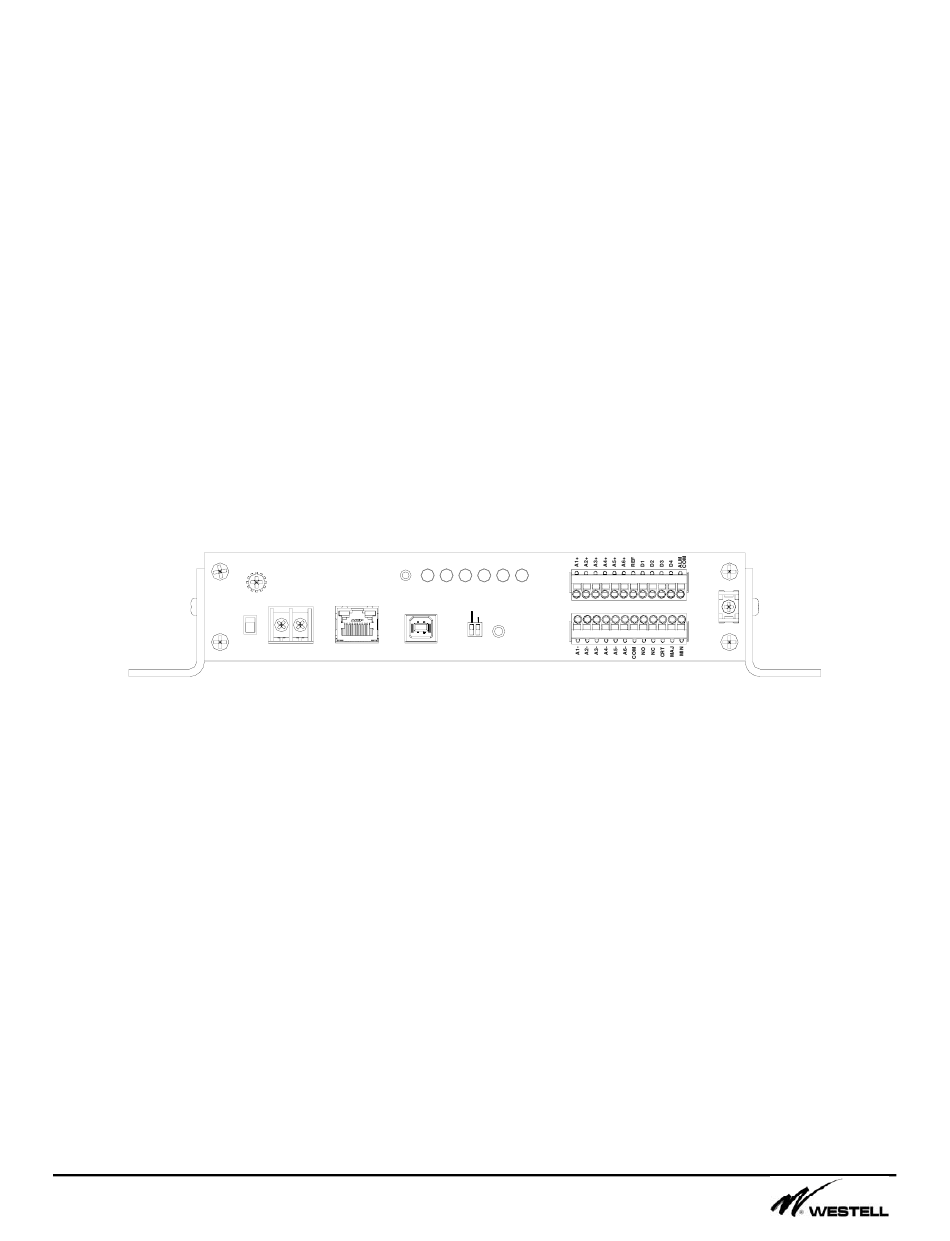

SITE VU MINI
N04005-SVU/L0806
CHASSIS
Noran Tel
GND
www.norantel.com
PWR CRIT MAJ
ETHERNET
ON
OFF
BAT GND
SERVICE
10BaseT
PORT
This manual describes
H1
MIN UNIT
NEW
ALM
DATA
CONFIG LOCK
REPROGRAM
H2
OFF
RESET
how to configure the SiteVu remote unit using
the Service Port. There are minor differences
between
the
Service
configuration options. These differences will be
discussed as required throughout the manual.
The numbers displayed in parentheses (#) after
a title is what a user would type on the SiteVu
remote unit screens to access the submenu.
Page 1 of 16
Firmware Manual 0806-40A
Version 1.0.x
Port
and
Telnet
Advertisement
Table of Contents
Related Manuals for Westell Noran Tel SITE VU MINI N04005-SVU/L0806
Summary of Contents for Westell Noran Tel SITE VU MINI N04005-SVU/L0806
- Page 1 Firmware Manual 0806-40A Version 1.0.x Noran Tel a subsidiary of Westell, Inc. SITE VU MINI N04005-SVU/L0806 Firmware: Local Port / Telnet Configuration CHASSIS Noran Tel www.norantel.com PWR CRIT MAJ MIN UNIT DATA ETHERNET CONFIG LOCK REPROGRAM RESET BAT GND SERVICE...
- Page 2 SiteVu remote unit at one given time. Note: The SiteVu remote unit will disconnect an idle connection (Telnet or Service Port) once the Inactivity Timeout setting in the Telnet menu is achieved. Noran Tel Page 2 of 16 a subsidiary of Westell, Inc...
-
Page 3: Table Of Contents
11.1 (1-3) ..................14 ATTERY UNDOWN ETTINGS 11.2 (4-7) ..................14 ATTERY UNDOWN ILES DOWNLOADING WITH TFTP ......................... 15 DOWNLOADING WITH XMODEM ......................15 Noran Tel Page 3 of 16 a subsidiary of Westell, Inc... -
Page 4: Sitevu Main Menu
• Rename and delete files setting for the menu item and presses the • Modify Battery Run-down settings <Enter> key, conformation prompt displayed to accept the or discard the change. Noran Tel Page 4 of 16 a subsidiary of Westell, Inc... -
Page 5: Communication Settings Menu (1)
Telnet session. They hours (h) and minutes (m) (e.g. “1d 10h 50 m”) can only be configured when using the Service Port on the Site Vu remote unit. Noran Tel Page 5 of 16 a subsidiary of Westell, Inc... -
Page 6: Ntp Settings Menu (3)
The Telnet Server Port menu item allows the onboard non-volatile memory on the SiteVu. user to change the default port for the Telnet server. A user may want to change this port for Noran Tel Page 6 of 16 a subsidiary of Westell, Inc... -
Page 7: Digital Inputs (3)
The Sensor Description menu item allows the remote unit will log any changes of state that user to enter any 149 character description of occur on the sensor. the sensor. Noran Tel Page 7 of 16 a subsidiary of Westell, Inc... -
Page 8: Analog Inputs (4)
• 0-125mV point. Refer to the Analog Input sensor section • 0-5V in the hardware manual for more detailed • 0-60V information. Noran Tel Page 8 of 16 a subsidiary of Westell, Inc... -
Page 9: Digital Outputs (5)
Pressing the <Enter> key from an analog or digital input. When the state also refreshes the menu adding any new Noran Tel Page 9 of 16 a subsidiary of Westell, Inc... -
Page 10: Security (7)
The remaining menu items allow a user to press the <Enter> key to jump to that log entry. configure the privileges for another user. Each item can be assigned NO ACCESS, READ Noran Tel Page 10 of 16 a subsidiary of Westell, Inc... -
Page 11: Access Control List Menu (7)
8.1 Configuration File Settings (3-5) The Configuration File Settings Menu seen in Figure 8-2 allows the user ser to set which Noran Tel Page 11 of 16 a subsidiary of Westell, Inc... -
Page 12: Firmware File Settings (6)
The user can enter remotely using the menu options available in their three character extension by typing a Figure 8-3. period and the extension. The characters can Noran Tel Page 12 of 16 a subsidiary of Westell, Inc... -
Page 13: System Information (9)
The Remote Name is user-definable but can Sunday of the month. For example, the last only be set from the System Properties menu. Sunday in March would be entered as “3-0”. Noran Tel Page 13 of 16 a subsidiary of Westell, Inc... -
Page 14: Lcd Screen Saver (1)
TFTP or Xmodem. begin with the first sensor. Press any button Any available files and attributes will be listed. to enter then main menu on the LCD. Noran Tel Page 14 of 16 a subsidiary of Westell, Inc... -
Page 15: Downloading With Tftp
• tftp -i 192.168.0.21 put config1.bin - Downloading with Xmodem places config1.bin file from the user’s computer to the SiteVu at IP address 192.168.0.21. • tftp 192.168.0.22 get security_log.tsv – retrieve security_log.tsv file from the Noran Tel Page 15 of 16 a subsidiary of Westell, Inc... - Page 16 Delete File (2) Sensor Description (20) Digital Output (5) Sensor Name (1) Current State (2) Controlling Input (3) © Noran Tel, Inc Sensor Description (4) Rev. 0806-41A Firmware v1.0.X Noran Tel Page 16 of 16 a subsidiary of Westell, Inc...
