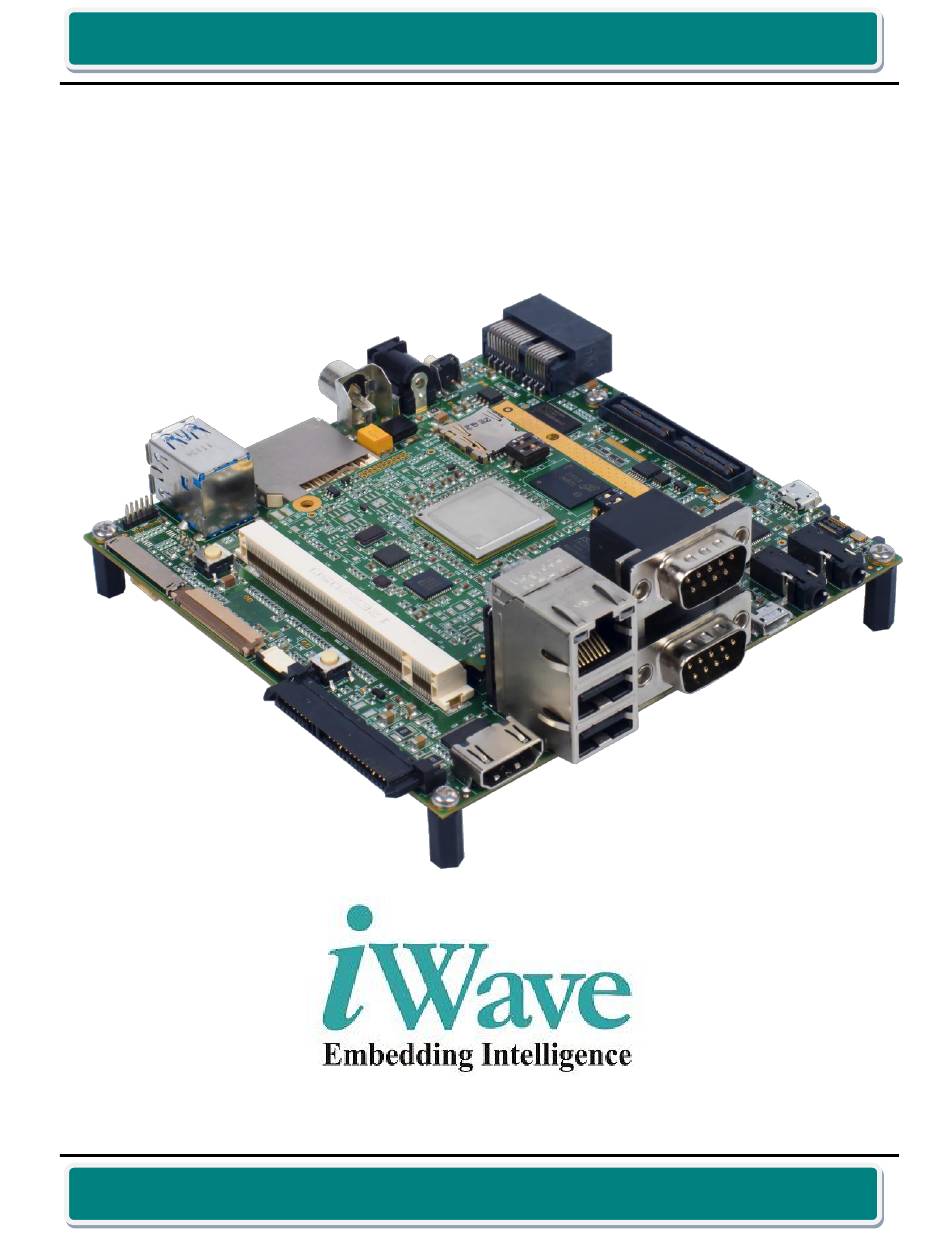

Generic Qseven Carrier Board Hardware User Guide
iW-RainboW-G7D
Qseven Generic Carrier Board
Hardware User Guide
Rev 2.0
iWave Systems Technologies Pvt. Ltd.
Page 1 of 164

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G7D and is the answer not in the manual?

Questions and answers

Related Manuals for iWave iW-RainboW-G7D

Summary of Contents for iWave iW-RainboW-G7D

  • Page 1 Generic Qseven Carrier Board Hardware User Guide iW-RainboW-G7D Qseven Generic Carrier Board Hardware User Guide Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 1 of 164...
  • Page 2 STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” Rev 2.0 iWave Systems Technologies Pvt. Ltd.
  • Page 3 Generic Qseven Carrier Board Hardware User Guide Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any Product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication.

  • Page 4: Table Of Contents

    Qseven Generic Carrier Board Features ..................13 Qseven MXM Connector ......................16 Serial Interface Features ......................29 2.4.1 Debug UART console ......................29 2.4.2 UART0 header for iWave GPS ....................30 Communication Features ......................32 2.5.1 Gigabit Ethernet ........................32 2.5.2 SDIO Ports ..........................35 2.5.3...
  • Page 5 Expansion Pin-out based on i.MX6 SOM ................. 146 Expansion Pin-out based on AM389x SOM ................152 Expansion Pin-out based on i.MX51 SOM ................158 APPENDIX III .......................... 164 iWave’s Compatible Qseven CPU Modules ................164 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 5 of 164...
  • Page 6 Figure 32: Qseven Control Signal ........................ 95 Figure 33: Expansion Connector 1 ......................98 Figure 34: Expansion Connector 2 ......................107 Figure 35: Secondary UART Connector ..................... 116 Figure 36: Secondary CAN Connector ....................... 118 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 6 of 164...
  • Page 7 Figure 45: Power Sequence to Qseven CPU Module ................142 Figure 46: Board Mechanical Dimension ....................143 Figure 47: PCB Silkscreen Top ........................144 Figure 48: PCB Silkscreen Bottom ......................145 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 7 of 164...
  • Page 8 Table 33: LPC Header Pin Out ........................91 Table 34: SDVO Header Pin Out ........................93 Table 35: Qseven Control Signal Header ....................96 Table 36: Expansion Connector1 Pin Out ....................99 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 8 of 164...
  • Page 9 Table 50: Carrier Board Expansion Connector pin-out based on i.MX6 SOM .......... 146 Table 51: Carrier Board Expansion Connector pin-out based on AM389x SOM ........152 Table 52: Carrier Board Expansion Connector pin-out based on i.MX51 SOM ........158 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 9 of 164...

  • Page 10: Introduction

    This document is the Hardware Reference Manual for the Qseven Generic Carrier Board. This board is fully supported by iWave Systems Technologies Pvt. Ltd. This Manual includes system setup, debugging and provides detailed information on the overall design and usage of the Qseven Generic Carrier Board from a Hardware Systems perspective.

  • Page 11: Reference

    Serial Peripheral Interface Synchronous Serial Interface TMDS Transition-Minimized Differential Signalling UART Universal Asynchronous Receiver Transmitters Universal Serial bus Wi-Fi Wireless Fidelity Reference  Qseven Specification Revision 2.0  Qseven® Design Guide Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 11 of 164...

  • Page 12: Qseven Generic Carrier Board Design

    Connector - 2 VGA Header* 4x4 Matrix Keypad Header MIPI CSI MIPI Camera Conn +12V DC Input MAIN Power Jack *Optional Figure 1: Qseven Generic Carrier Board Block Diagram Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 12 of 164...

  • Page 13: Qseven Generic Carrier Board Features

    Generic Qseven Carrier Board Hardware User Guide Qseven Generic Carrier Board Features Qseven Generic Carrier Board supports the following features to validate Qseven Edge Connector Interfaces and iWave’s Qseven CPU Module specific Expansion Connector interfaces. Qseven Edge Connector Features Serial Interface Features ...
  • Page 14 2. Mini PCIe connector supports both USB interface and PCIe interface. 3. Either LVDS0 connector or 7” RGB resistive LCD or 7” RGB capacitive LCD can be used at a time. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 14 of 164...
  • Page 15 Generic Qseven Carrier Board Hardware User Guide iWave’s Qseven CPU Module specific Expansion Connector Features  UART2 Header  CAN port2 connector  TV-In Composite Video through RCA Jack  8bit CMOS Camera Connector  MIPI Camera Connector  4X4 Keypad Header ...

  • Page 16: Qseven Mxm Connector

    MXM specification. Therefore this connector type is also known as MXM connector. The MXM connector (J12) is a robust, low-cost edge connector that is capable of handling high-speed serialized signals. Figure 2: Qseven MXM Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 16 of 164...

  • Page 17: Table 2: Qseven Mxm Connector Pin Out

    External system wake event. Default NC. Connected to 8 Pin of Qseven Control Signal Header (J53) through resistor and default not populated. SUS_S3# Input 3.3V CMOS Suspend to RAM. Default NC. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 17 of 164...
  • Page 18 Connected to push button S2. SATA0_TX+ Input Differential SATA0 Transmit Input differential positive. SATA1_TX+ Input Differential SATA1 Transmit Input differential positive. SATA0_TX- Input Differential SATA0 Transmit Input differential negative. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 18 of 164...
  • Page 19 SD/MMC card Data Line (Bit7). SDIO_DAT6 Input/Output 3.3V CMOS SD/MMC card Data Line (Bit6). RSVD1 Default NC. Connected to 1 Pin of Qseven Control Signal Header (J53) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 19 of 164...
  • Page 20 Signal Header (J53) through resistor and default not populated. THRMTRIP# Input 3.3V CMOS Thermal Trip indicates an overheating condition of the Processor. Connected to 12 Pin of Qseven Control Signal Header (J53). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 20 of 164...
  • Page 21 USB Host Port2 Data Positive. USB_CC Output 3.3V CMOS USB client connect. USB_ID Output 3.3V CMOS USB OTG ID to identify Host & device. USB_P1- Input/Output Differential USB OTG Data negative. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 21 of 164...
  • Page 22 Input 3.3V CMOS LVDS LCD panel Backlight enable control. eDP0_TX3+/ Input LVDS LVDS primary channel differential pair3 LVDS_A3+ positive. eDP1_TX3+/ Input LVDS LVDS secondary channel differential LVDS_B3+ pair3 positive. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 22 of 164...
  • Page 23 HDMI differential clock positive. TMDS_CLK+ RSVD2 Default NC. (Differential Pair) Connected to 2 Pin of SDVO Header (J47) through resistor and default not populated. DP_LANE3-/ Input TMDS HDMI differential clock negative TMDS_CLK- Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 23 of 164...
  • Page 24 (J47) through resistor and default not populated. DP_LANE2-/ Input TMDS HDMI differential data0 negative. TMDS_LANE0- RSVD5 Default NC. (Differential Pair) Connected to 12 Pin of SDVO Header (J47) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 24 of 164...
  • Page 25 Input 3.3V CMOS UART3 Transmit signal. UART0_RTS# Input 3.3V CMOS UART3 RTS signal. PCIE1_TX+ Input Differential PCIe1 differential transmit line positive. PCIE1_RX+ Output Differential PCIe1 differential receive line positive. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 25 of 164...
  • Page 26 Pin of LPC Header (J34). LPC_LDRQ#/ Input/Output 3.3V CMOS GPIO. GPIO7 Connected to USB power switch and to Pin of LPC Header (J34). VCC_RTC Power RTC battery voltage input. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 26 of 164...
  • Page 27 MFG_NC1 Input 3.3V CMOS Debug UART TX data line. UART2_TXD (EIM_D26). MFG_NC3 Output 3.3V CMOS JTAG Test Mode Select. VCC1 Power Input Supply Voltage. VCC2 Power Input Supply Voltage. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 27 of 164...
  • Page 28 Power Input Supply Voltage. VCC16 Power Input Supply Voltage. VCC17 Power Input Supply Voltage. VCC18 Power Input Supply Voltage. VCC19 Power Input Supply Voltage. VCC20 Power Input Supply Voltage. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 28 of 164...

  • Page 29: Serial Interface Features

    Debug UART Connector (J26A). This DB9 port can be used for Debug purpose. This is not the full functional UART and supports only TX and RX signals. Figure 3: Debug UART Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 29 of 164...

  • Page 30: Uart0 Header For Iwave Gps

    2.4.2 UART0 header for iWave GPS Qseven Generic Carrier Board supports on board UART0 header (J2) through UART0 interface of Qseven MXM connector. This header can be used to connect iWave’s GPS module and physically located on the top of the board as shown below.

  • Page 31: Figure 4: Uart0 Header

    Input 3.3V CMOS UART receive signal. Connected to 177 Pin of Qseven MXM Connector. UART_TXD UART transmit signal. Output 3.3V CMOS Connected from 171 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 31 of 164...

  • Page 32: Communication Features

    LED indicators. RJ45 MagJack will work for both 10/100Mbps & 10/100/1000 Mbps Ethernet operation. This connector is physically located on top of the board as shown below. Figure 5: RJ45 (GBE), USB Host0 & Host2 Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 32 of 164...

  • Page 33: Table 5: Gigabit Ethernet Connector Pin Out

    2 positive. Connected to 6 Pin of Qseven MXM Connector. TRD3- Input/Output Differential Gigabit Ethernet MDI differential pair 2 negative. Connected to 4 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 33 of 164...
  • Page 34 LED Green/Orange Anode. Connected to 3.3V power. Gigabit Ethernet Link status LED LED_O- Input 3.3V Orange Cathode. Connected to 13 Pin of Qseven MXM Connector. S5,S6,S7,S8 SHLD Power Shield Ground Ethernet. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 34 of 164...

  • Page 35: Sdio Ports

    This connector supports up to 8-bit data transfer with card detect & write protect feature. The main power to SD/MMC connector is 3.3V. SD/MMC connector is physically located on top of the board as shown below. Figure 6: SD/MMC Card Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 35 of 164...

  • Page 36: Table 6: Sd/Mmc Connector Pin Out

    3.3V CMOS/ SD/MMC Command. 10K Pull-up Connected to 45 Pin of Qseven MXM Connector. SD/MMC Data Line (Bit4). DAT4 Input/Output 3.3V CMOS Connected to 53 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 36 of 164...
  • Page 37 SDIO Wi-Fi Connector: Number of Pins: 20 Connector Part number: AXK720247G from Panasonic Electric Works Compatible Wi-Fi Module: Part Number: WYSAAVDX7 Description: IEEE802.11b/g/n Wireless Module with Antenna Manufacturer Name: TAIYO YUDEN Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 37 of 164...

  • Page 38: Figure 7: Sdio Wi-Fi Module Connector

    3.3V CMOS SD/MMC Data Line (Bit0). Connected to 49 Pin of Qseven MXM Connector. Power Ground. WiFi_CLK Output 3.3V CMOS SD/MMC Clock. Connected to 42 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 38 of 164...
  • Page 39 3.3V CMOS Host Wakeup. Connected from 57 Pin of Expansion Connector1. Power Ground. VCC_5V Power Power Supply. VCC_5V Power Power Supply. Mechanical Mechanical Mechanical Mechanical Support. Support Support Support Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 39 of 164...

  • Page 40: Usb Ports

    Connected to 90 Pin of Qseven MXM Connector. Power GND2 USB Host Port 2 Ground (Top). S1,S2 SHLD Power Shield Ground (Bottom). Power S3,S4 SHLD Shield Ground USB2 (Top). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 40 of 164...

  • Page 41: Figure 8: Usb 2.0 Otg Connector

    Connected to 95 Pin of Qseven MXM Connector. Input 3.3V CMOS USD Port1 OTG, ID signal. Connected to 92 Pin of Qseven MXM Connector. Power USB Port1 OTG Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 41 of 164...

  • Page 42: Can Port1

    Input Differential CAN0 Differential negative. Power Ground. No Connection. CAN_SHLD_GND Power CAN Shield Ground. Power Ground. CAN0H Input Differential CAN0 Differential positive. No Connection. VCC_12V Power 12V Power supply. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 42 of 164...

  • Page 43: High Speed Interface Features

    SATA port0 signals from Qseven MXM connector are connected to standard 22pin SATA connector with power. This connector (J16) is physically located on top of the board as shown below. Figure 10: SATA Port0 Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 43 of 164...

  • Page 44: Table 11: Sata Port0 Connector Pin Out

    Power Ground. Power Ground. Power Ground. VCC_12V Power 12V Power Supply. VCC_12V Power 12V Power Supply. VCC_12V Power 12V Power Supply. SH1,SH2 SHLD Power Shield Ground. M1,M2 Mechanical Support. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 44 of 164...

  • Page 45: Figure 11: Sata Port1 Connector

    SATA Port1 signals from Qseven MXM connector are connected to standard 7pin SATA connector without power. This connector (J64) is physically located on bottom of the board as shown below. Figure 11: SATA Port1 Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 45 of 164...

  • Page 46: Pci Express

    USB Host3 interface from Qseven MXM connector. This board also supports SIM connector to support SIM interface from Mini PCIe connector. Mini PCIe connector (J52) and SIM connector (J40) is physically located at bottom of the board as shown below. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 46 of 164...

  • Page 47: Figure 12: Mini Pcie Connector

    MXM Connector. +3.3V_AUX Power 3.3V 3.3V Power Supply. COEX1 No Connection. Power Ground. COEX2 No Connection. 1.5V Power 1.5V Optional 3G supply. Default NC. CLKREQ# Input 3.3V CMOS Clock Request Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 47 of 164...
  • Page 48 Connected to 158 Pin of Qseven MXM connector through buffer. PERn0 Input Differential PCIe Receive Pair Negative. Connected to PCIe Switch downstream Port1. +3.3V_AUX Power 3.3V 3.3V Power Supply. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 48 of 164...
  • Page 49 3.3V Power Supply. GND11 Power Ground. +3.3V_AUX Power 3.3V 3.3V Power Supply. LED_WWAN# Input 3.3V CMOS LED Enable. Connected to red LED D22 and default populated. GND12 Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 49 of 164...

  • Page 50: Table 14: Sim Connector Pin Out

    SIM Reset from Mini PCIe. Input 3V CMOS SIM Clock from Mini PCIe. Power Ground. Power SIM VPP Power from Mini PCIe. Input SIM IO Data from Mini PCIe. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 50 of 164...

  • Page 51: Figure 13: Pcie X1 Connector

    Note: Optionally PCIe Port1 signals from the Qseven MXM Connector are also connected to this PCIex1 connector through resistors and default not populated. Figure 13: PCIe x1 Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 51 of 164...

  • Page 52: Table 15: Pcie X1 Connector Pin Out

    PCIe Receive Pair negative. Connected to PCIe Switch downstream Port2. GND9 Power Ground. +12V Power 12V Power Supply. +12V Power 12V Power Supply. RSVD1 No Connection. GND1 Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 52 of 164...
  • Page 53 PCIe Transmit Pair negative. PETn0 Output Differential Connected to PCIe Switch downstream Port2. GND4 Power Ground. PRSNT2# No Connection. GND5 Power Ground. M1,M2 Mechanical Mechanical Mechanical Mechanical Support. Support Support Support Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 53 of 164...

  • Page 54: Figure 14: Usb 3.0 Connector

    PCIe switch downstream port3 signals are connected to USB 3.0 controller. Dual stack USB 3.0 host connector is physically located on top of the board for external access as shown below. Figure 14: USB 3.0 connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 54 of 164...

  • Page 55: Table 16: Usb 3.0 Connector Pin Out

    SSRXN Input Differential USB 3.0 Receive Negative from USB3.0 Hub controller port1. Optionally this pin is connected to 76 of Qseven MXM Connector through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 55 of 164...
  • Page 56 USB3.0 Hub controller port1. Optionally this pin is connected to 77 of Qseven MXM Connector through resistor and default not populated. 19, 20, SHLD USB 3.0 Shield Ground. 21, 22 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 56 of 164...

  • Page 57: Figure 15: Pcie Port2 Header

    PCIe port 2 signals from the Qseven MXM Connector are connected to an 18 pin SMD pad header (J49) for add-on purpose. These SMD pads can be accessed at the bottom of the board as shown below. Figure 15: PCIe Port2 Header Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 57 of 164...

  • Page 58: Table 17: Pcie Port2 Header Pin Out

    3.3V CMOS System Management Bus Data. Connected to 62 Pin of Qseven MXM Connector. SMB_CLK Input 3.3V CMOS System Management Bus Clock. Connected to 60 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 58 of 164...

  • Page 59: Figure 16: Pcie Port3 Header

    PCIe port 3 signals from the Qseven MXM Connector are connected to an 18 pin header (J44) for add-on purpose. These SMD pads can be accessed at the bottom of the board as shown below. Figure 16: PCIe Port3 Header Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 59 of 164...

  • Page 60: Table 18: Pcie Port3 Header Pin Out

    3.3V CMOS System Management Bus Data. Connected to 62 Pin of Qseven MXM Connector. SMB_CLK Input 3.3V CMOS System Management Bus Clock. Connected to 60 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 60 of 164...

  • Page 61: Audio/ Video Features

    Qseven Generic Carrier Board supports 3.5mm Audio out Stereo Jack (J24) and 3.5mm Audio In Mono Jack (J23) which are physically located on top of the board as shown below. Figure 17: Audio Jack Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 61 of 164...

  • Page 62: Table 19: Audio Out Jack Pin Out

    Ground MIC1P Input 3.3V Analog Microphone Signal No Connection Microphone Detection. MIC_IN_DETECT Input 3.3V CMOS Connected from 31 Pin of Expansion Connector1. MIC_INT Input 3.3V CMOS Internal MIC connection. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 62 of 164...

  • Page 63: Lvds Display Interface

    Description: 10.39 inch LVDS 6 bits with 800 x 600 (RGB) resolution Manufacturer Name: OPTREX Corporation 3. Part Number: TLM-TA40T3130-01 Description: 10.4 inch LVDS 6 bits with 800 x 600 (RGB) resolution Manufacturer Name: Varitronix Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 63 of 164...

  • Page 64: Figure 18: Lvds0 Connector

    Generic Qseven Carrier Board Hardware User Guide Figure 18: LVDS0 Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 64 of 164...

  • Page 65: Table 21: Lvds0 Connector Pin Out

    Connected to 109 Pin of Qseven MXM Connector. RIN2+ Output LVDS LVDS primary channel differential pair2 positive. Connected to 107 Pin of Qseven MXM Connector. GND5 Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 65 of 164...

  • Page 66: Table 22: Lvds0 Backlight Connector Pin Out

    = Current required for LCD backlight LEDs. 2. Change D14 Zener Diode from 15V to required voltage. (Populated diode part number is BZT52C20-7-F) Note: Refer APPENDIX I for Silkscreen identifier details Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 66 of 164...

  • Page 67: Figure 19: 7`` Resistive Lcd Connector

    LCD Connector Part number: FH12-40S-0.5SH(55) Compatible LCD: Part Number: KWH070KQ13-F02 Description: 7 inch, LCD 18 bit with 800 x 480 (RGB) resolution Manufacturer Name: Formike Electronic Co.Ltd Figure 19: 7`` Resistive LCD Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 67 of 164...

  • Page 68: Table 23: 7`` Rgb Resistive Lcd Connector Pin Out

    Display Green Data 2 (LSB+2). GND5 Power Ground. Input 3.3V CMOS Display Red Data 7 (MSB). Input 3.3V CMOS Display Red Data 6. Input 3.3V CMOS Display Red Data 5. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 68 of 164...

  • Page 69: Table 24: Resistive Touch Connector Pin Out

    Touch Up Signals. Input Analog Touch Right Signals. Input Analog Touch Down Signals. Note: Optionally these touch signals are directly connected to Expansion Connector-2 (J9) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 69 of 164...
  • Page 70 Mating Connector: BHSR-02VS-1 from JST Sales America Inc Compatible LCD: Part Number: ETM070001ADH6 Description: 7 inch, LCD 18 bit with 800 x 480 (RGB) resolution Manufacturer Name: Emerging Display Technologies Corporation Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 70 of 164...

  • Page 71: Figure 20: 7`` Capacitive Touch Lcd Connector

    Generic Qseven Carrier Board Hardware User Guide Figure 20: 7`` Capacitive Touch LCD Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 71 of 164...

  • Page 72: Table 25: 7`` Capacitive Touch Lcd Connector Pin Out

    Display Red Data Input 6. Output 3.3V CMOS Display Red Data Input 5. VSS8 Power Ground. Output 3.3V CMOS Display Red Data Input 4. Output 3.3V CMOS Display Red Data Input 3. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 72 of 164...

  • Page 73: Table 26: Capacitive Touch Connector Pin Out

    Expansion Connector1. VSS1 Power Ground. Table 27: Backlight LED Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination VBL+(A) Power 9.9V LED Anode. VBL-(K) Power LED Cathode. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 73 of 164...
  • Page 74 Description: 10.39 inch LVDS 6 bits with 800 x 600 (RGB) resolution Manufacturer Name: OPTREX Corporation 3. Part Number: TLM-TA40T3130-01 Description: 10.4 inch LVDS 6 bits with 800 x 600 (RGB) resolution Manufacturer Name: Varitronix Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 74 of 164...

  • Page 75: Figure 21: Lvds1 Connectors

    Generic Qseven Carrier Board Hardware User Guide Figure 21: LVDS1 Connectors Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 75 of 164...

  • Page 76: Table 28: Lvds1 Connector Pin Out

    Connected to 110 Pin of Qseven MXM Connector. RIN2+ Input LVDS LVDS secondary channel differential pair2 positive. Connected to 108 Pin of Qseven MXM Connector. GND5 Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 76 of 164...

  • Page 77: Table 29: Lvds1 Backlight Connector Pin Out

    = Current required for LCD backlight LEDs. 2. Change D24 Zener Diode from 15V to required voltage. (Populated diode part number is BZT52C20-7-F) Note: Refer APPENDIX I for Silkscreen identifier details Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 77 of 164...

  • Page 78: Hdmi Interface

    MXM connector are connected to Standard HDMI port with ESD protection circuitry. HDMI connector (J27) is physically located on top of the board as shown below. Figure 22: HDMI Port Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 78 of 164...

  • Page 79: Table 30: Hdmi Port Pin Out

    Display Clock pair negative. CLK- Output TMDS Connected to 133 Pin of Qseven MXM Connector. Consumer Electronic Control. Input/Output 3.3V CMOS Connected to 124 Pin of Qseven MXM Connector. RSV/NC No Connection. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 79 of 164...
  • Page 80 5V Power Supply. Input 3.3V CMOS HDMI Cable Hot plug detect. Connected from 153 Pin of Qseven MXM Connector. M1,M2, Mechanical support Mechanical Mechanical Mechanical support. M3,M4 support support Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 80 of 164...

  • Page 81: Additional Features

    Note: To support this dynamic selection, Qseven module which is connected to this Generic carrier board also should support dynamic selection. By default jumper is open and UART is selected as Debug port. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 81 of 164...

  • Page 82: Table 31: Jtag Connector Pin Out

    MFG1_JATG_TDO Connected to 209 Pin of Qseven MXM Connector. MFG3_JTAG_TMS Input 3.3V CMOS JTAG Test Mode Select. Connected from 210 Pin of Qseven MXM Connector. Power Ground. Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 82 of 164...

  • Page 83: Rtc Battery

    Number of Pins: 2 Connector Part number: ML-2020/V1AN Compatible RTC Battery: CR2032 from Maxell Figure 24: RTC Battery Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 83 of 164...

  • Page 84: Control Buttons

    SOM module. This power button (S1) is physically located at the top of the board as shown below and connected to 20 Pin of Qseven MXM Connector. Figure 25: Power Button Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 84 of 164...

  • Page 85: Figure 26: Reset Button

    This reset button (S2) is physically located at the top of the board as shown below and connected to 28 Pin of Qseven MXM Connector. Figure 26: Reset Button Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 85 of 164...

  • Page 86: Figure 27: Tamper Switch

    Pin of Qseven MXM connector through resistor and default not populated. This switch (S3) is physically located on the top of the board as shown below. Figure 27: Tamper Switch Note: This is not the standard feature of Qseven specification. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 86 of 164...

  • Page 87: Sensors

    The Qseven Generic Carrier Board supports on board Digital eCompass Sensor. This sensor is connected to I2C interface of Qseven MXM connector (66 and 68 Pin) and interrupt is connected to 186 Pin of Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 87 of 164...
  • Page 88 Pin) and interrupt is connected to 189 Pin of Qseven MXM connector. This sensor (U60) is physically located on the bottom of the board as shown in Figure 28 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 88 of 164...

  • Page 89: Add-On Headers

    MXM connector is connected to this SPI header (J29) and physically located at the bottom of board as shown below. Number of Pins: 8 Connector Part number: GRPB081VWVN-RC Mating Connector: LPPB081NFFN-RC from Sullins Connector Solutions Figure 29: SPI Header Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 89 of 164...

  • Page 90: Table 32: Spi Header Pin Out

    Connected to 203 Pin of Qseven MXM Connector. VCC_3V3 Power 3.3V 3.3V Power Supply. SPI Chip select1. SPI_CS1# Output 3.3V CMOS Connected to 202 Pin of Qseven MXM Connector. Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 90 of 164...

  • Page 91: Figure 30: Lpc Header

    Table 33: LPC Header Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination No Connection. No Connection. VGA_HSYNC Output 3.3V CMOS VGA HSYNC. Connected to 74 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 91 of 164...
  • Page 92 SERIRQ/GP6 down signal. Connected to 191 Pin of Qseven MXM Connector. LPC_LDRQ#/GP7 Input/Output 3.3V CMOS GPIO connected to USB power switch. Connected to 192 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 92 of 164...

  • Page 93: Figure 31: Sdvo Header

    Table 34: SDVO Header Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination Ground NC_SDVO_INT+ Input TMDS HDMI differential interrupt positive. Connected to 132 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 93 of 164...
  • Page 94 HDMI differential clock data NC_SDVO_TVCLKIN+ positive. Connected to 144 Pin of Qseven MXM Connector. Ground. NC_SDVO_TVCLKIN- Input TMDS HDMI differential clock data negative. Connected to 146 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 94 of 164...

  • Page 95: Figure 32: Qseven Control Signal

    Control signals from the Qseven MXM Connector are connected to a 12 pin SMD pad header (J53) for Control Signal expansion. These SMD pads can be accessed at the bottom of the board as shown below. Figure 32: Qseven Control Signal Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 95 of 164...

  • Page 96: Table 35: Qseven Control Signal Header

    THRM# Connected from 69 Pin of Qseven MXM Connector. THRMTRIP# Output 3.3V CMOS Thermal Trip indicates overheating condition of the Processor. Connected to 71 Pin of Qseven MXM Connector. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 96 of 164...

  • Page 97: Expansion Connectors

    Mating Connector: DF17(2.0)-80DP-0.5V(57) from Hirose Electric Co Ltd Note: iWave has made careful effort to make these expansion connectors pinout to be same for all iWave Qseven CPU modules. But there are some signals in these connectors may be different between CPU modules because of respective CPU supported interface.
  • Page 98 Generic Qseven Carrier Board Hardware User Guide Figure 33: Expansion Connector 1 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 98 of 164...

  • Page 99: Table 36: Expansion Connector1 Pin Out

    GPPIN_8 Input/Output Connected to 88 Pin of Carrier Board Expansion Connector (J10). GPPIN_9 Input/Output 3.3V CMOS General Purpose Pin9. Connected to 87 Pin of Carrier Board Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 99 of 164...
  • Page 100 Board Expansion Connector (J10). CAN2_PD Input 3.3V CMOS CAN2 Power Down. Connected 73 Pin of Carrier Expansion Connector (J10). Optionally connected to CAN2 transceiver power down through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 100 of 164...
  • Page 101 & to 67 Pin of Carrier Expansion Connector (J10). ADC1_INTREQ Output 3.3V CMOS TV decoder interrupt. Connected to TV decoder INT pin & to 66 Pin of Carrier Expansion connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 101 of 164...
  • Page 102 Carrier Expansion Connector (J10). Power Ground. LVDS_BLEN Input 3.3V CMOS LVDS backlight enable. Default NC. Optionally Connected to 114 of Carrier Expansion Connector (J10) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 102 of 164...
  • Page 103 RS232 transceiver through resistor and default not populated. UART1_RTS Output 3.3V CMOS UART1 Ready To Send signal. Default NC. Optionally Connected to Debug RS232 transceiver through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 103 of 164...
  • Page 104 CAM_PWDN Input 3.3V CMOS CMOS camera power down. Connected to 8 Pin of CMOS Camera Connector (J51) & to 57 Pin of Carrier Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 104 of 164...
  • Page 105 Connected to TV decoder HSYNC pin. Output 3.3V CMOS CSI port1 data enable. CS1_VCLK Default NC. Optionally Connected to 13 Pin of CMOS Camera Connector (J51) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 105 of 164...
  • Page 106 76 Pin of Carrier Expansion Connector (J10). GPIN19_CAN1_TXD Input 3.3V CMOS CAN2 Transmit signal. Connected to CAN2 transceiver & to 75 Pin of Carrier Expansion Connector (J10). Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 106 of 164...
  • Page 107 Generic Qseven Carrier Board Hardware User Guide Figure 34: Expansion Connector 2 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 107 of 164...

  • Page 108: Table 37: Expansion Connector2 Pin Out

    Ground. KP_ROW0 Input/Output 3.3V CMOS Keypad Row0. Connected to 1 Pin of Keypad Header (J46). KP_ROW1 Input/Output 3.3V CMOS Keypad Row1. Connected to 2 Pin of Keypad Header (J46). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 108 of 164...
  • Page 109 EIM Data & address line 5. Connected to 41 Pin of Carrier Expansion Connector (J10). GPEM_DA4 Input/Output 3.3V CMOS EIM Data & address line 4. Connected to 42 Pin of Carrier Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 109 of 164...
  • Page 110 3.3V CMOS EIM Read/Write Enable. Connected to 27 Pin of Carrier Expansion Connector (J10). GPEM_CS0 Input 3.3V CMOS EIM Chip Select0. Connected to 28 Pin of Carrier Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 110 of 164...
  • Page 111 3.3V CMOS SSI Transmit. Connected to 20 Pin of Carrier Expansion Connector (J10). Optionally connected to 47 Pin of Mini PCIe Connector (J52) through resistor and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 111 of 164...
  • Page 112 CSI Port2 data bit9. CSI2_D9 Output Connected to 12 Pin of CMOS Camera Connector (J51). Output 3.3V CMOS CSI Port2 HSYNC. CSI2_HSYNC Connected to 9 Pin of CMOS Camera Connector (J51). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 112 of 164...
  • Page 113 Pin of MIPI Camera Connector (J19) and to 13 Pin of Carrier Expansion Connector (J10) VGA_TV_GRN Input Analog VGA_TV Green Signal. Connected to 5 Pin of VGA Signal Header (J38). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 113 of 164...
  • Page 114 Expansion Connector (J10). Optionally Connected to Ground through resistor and default not populated. GPIF_P7 Input/Output 3.3V CMOS General Purpose Pin 7. Connected to 9 Pin of Carrier Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 114 of 164...
  • Page 115 Pin of Carrier Expansion Connector (J10). CSI2_D0 Input/Output 3.3V CMOS CSI Port2 data bit0. Connected to 24 Pin of CMOS Camera Connector (J51) & to 3 Pin of Carrier Expansion Connector (J10). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 115 of 164...

  • Page 116: Uart2 Header

    (J45) is physically located at the bottom of the board as shown below. Number of Pins: 5 Connector Part number: GRPB051VWVN-RC Mating Connector: LPPB051NFFN-RC from Sullins Connector Solutions Figure 35: Secondary UART Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 116 of 164...

  • Page 117: Can Port2

    (J55). This connector is physically located on top of the board as shown below. Number of Pins: 3 Connector Part number: S3B-PH-SM4-TB(LF)(SN) Mating Connector: PHR-3 from JST Sales America Inc Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 117 of 164...

  • Page 118: Figure 36: Secondary Can Connector

    Description Termination Power Ground. CAN1H Input Differential CAN1 Differential Pair High Side. CAN1L Input Differential CAN1 Differential Pair Low Side. Mechanical Mechanical Mechanical M1,M2 Mechanical Support. Support Support Support Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 118 of 164...

  • Page 119: Tv-In Rca Jack

    Figure 37: TV-IN Connector Table 40: TV-In Connector Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination Power Ground. VIDEO_IN_A Input Analog Analog Video input. Power Ground. Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 119 of 164...

  • Page 120: Cmos Camera Connector

    Expansion connector2 through 2.8V to 3.3V Voltage translator. External reference clock for camera is provided by using on-board 26MHz Oscillator. This Camera connector (J51) is physically located at the bottom of the board as shown below. Figure 38: Camera Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 120 of 164...

  • Page 121: Table 41: Camera Connector Pin Out

    Connected to 56 Pin of Expansion Connector2. DVDD Power 1.8V Digital Power Supply. DOVDD Power 2.8V IO Power Supply. Input 2.8V CMOS Camera Data9. Connected to 55 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 121 of 164...
  • Page 122 Connected to 51 Pin of Expansion Connector2. Input 2.8V CMOS Camera Data1. Connected to 79 Pin of Expansion Connector2. Input 2.8V CMOS Camera Data0. Connected to 80 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 122 of 164...

  • Page 123: Mipi Camera Connector

    Compatible Camera Part Number: LI-OV5640-MIPI-AF Description: 5MegaPixel MIPI Camera based on OV5640 sensor Manufacturer Name: Leopard Leopard’s MIPI Camera Web link: https://www.leopardimaging.com/LI-OV5640-MIPI-AF.html Figure 39: 5MP MIPI Camera connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 123 of 164...

  • Page 124: Table 42: Mipi Camera Connector Pin Out

    Oscillator. MDN1 Input Differential MIPI Lane1 Data Negative. Connected from Expansion Connector2. DGND Power Ground. Input Differential MIPI Clock Positive. Connected to 61 Pin of Expansion Connector2. No Connection Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 124 of 164...
  • Page 125 Pin of Expansion Connector2. No Connection MDN0 Input Differential MIPI Lane0 Data Negative. Connected from Expansion Connector2. AF-VCC Power 1.8V MIPI AF Power 1.8V. AF-GND Power Analog Field Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 125 of 164...

  • Page 126: Keypad Header

    Header (J46) is physically located at the bottom of board as shown below. Number of Pins: 10 Connector Part number: GRPB052VWVN-RC Mating Connector: LPPB052CFFN-RC from Sullins Connector Solutions Figure 40: Keypad Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 126 of 164...

  • Page 127: Table 43: Keypad Connector Pin Out

    Pin of Expansion Connector2. KP_COL2 Input/Output 3.3V CMOS Keypad Column2. Connected to 13 Pin of Expansion Connector2. KP_COL3 Input/Output 3.3V CMOS Keypad Column3. Connected to 14 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 127 of 164...

  • Page 128: Tv Out Header

    Table 44: TV Out Header Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination Power Ground. VGA_TV_RED Output Analog Composite Video Output. Connected to 62 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 128 of 164...

  • Page 129: Vga Interface Header (Optional)

    VGA interface signals from the Expansion connector2 is connected to 10-pin SMD pad header (J38).This SMD pads can be accessed at the bottom of the board as shown below. By default this header will not be populated. Figure 42: VGA Signal Header Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 129 of 164...

  • Page 130: Table 45: Vga Header Pin Out

    Connected to 74 Pin of Expansion Connector2. Power Ground. VGA_VSYNC Output Analog VGA-VSYNC. Connected to 76 Pin of Expansion Connector2. VGA_TV_BLU Output Analog VGA-Blue. Connected to 70 Pin of Expansion Connector2. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 130 of 164...

  • Page 131: Carrier Board Expansion Connector

    This Carrier Expansion Connector (J10) is physically located at the top of the board as shown below. Number of Pins: 120 Connector Part number: QSH-060-01-L-D-A Mating Connector: QTH-060-02-F-D-A from Samtec Inc Figure 43: Carrier Expansion Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 131 of 164...

  • Page 132: Table 46: Carrier Expansion Connector Pin Outs

    General Purpose Pin 5. GPIF_P5 Connected to 69 Pin of Expansion Connector2 (J9). GPIF_P4 Input/Output 3.3V CMOS General Purpose Pin 4. Connected to 67 Pin of Expansion Conenctor2 (J9). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 132 of 164...
  • Page 133 3.3V CMOS EIM Burst Clock. GPEM_BCLK Connected to 37 Pin of Expansion Connector2 (J9). GPEM_CRE Input 3.3V CMOS EIM Memory Register Set. Connected to 38 Pin of Expansion Connector2 (J9). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 133 of 164...
  • Page 134 EIM Data & address line 7. GPEM_DA7 Input/Output Connected to 23 Pin of Expansion Connector2 (J9). GPEM_DA6 Input/Output 3.3V CMOS EIM Data & address line 6. Connected to 24 Pin of Expansion Connector2 (J9). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 134 of 164...
  • Page 135 3.3V CMOS General Purpose Interface. Connected to 34 Pin of Expansion Connector1 (J14). GPPIN_38 Input/Output 3.3V CMOS General Purpose Pin 38. Connected to 41 Pin of Expansion Connector1 (J14). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 135 of 164...
  • Page 136 3.3V CMOS General Purpose Pin 28. Connected to 29 Pin of Expansion Connector1 (J14). GPPIN_27 Input/Output 3.3V CMOS General Purpose Pin 27. Connected to 28 Pin of Expansion Connector1 (J14). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 136 of 164...
  • Page 137 General Purpose Pin 16. Connected to 18 Pin of Expansion Connector1 (J14). Power Ground. Power Ground. GPPIN_15 Input/Output 3.3V CMOS General Purpose Pin 15. Connected to 17 Pin of Expansion Connector1 (J14). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 137 of 164...
  • Page 138 3.3V CMOS General Purpose Pin 4. Connected to 6 Pin of Expansion Connector1 (J14). GPPIN_3 Input/Output 3.3V CMOS General Purpose Pin 3. Connected to 3 Pin of Expansion Connector1 (J14). Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 138 of 164...
  • Page 139 Pin of Qseven MXM Connector (J12) through resistor. NC_USB_P6+ Input/Output Differential USB Host Port6 Data positive. Connected to 78 Pin of Qseven MXM Connector (J12) through resistor. Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 139 of 164...
  • Page 140 VCC Power Supply, 5V. VCC_5V Power VCC Power Supply, 5V. Note: Carrier Board Expansion connector pin-out details of all iWave’s Qseven CPU Modules are mentioned in the APPENDIX II section. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 140 of 164...

  • Page 141: Electrical Specification

    Figure 44: Power Jack Table 47: Power Jack Pin Out Pin No Pin Name Signal Type Voltage Level/ Description Termination Power Positive Terminal. Ground Power Negative Terminal. Ground Power Negative Terminal. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 141 of 164...

  • Page 142: Power Output To Qseven Cpu Module

    Note: PWGIN is the Power Good output to Qseven CPU module. This pin is default pulled to VCC_5V_SB power in Qseven Generic Carrier Board. Generic Carrier Board also optionally supports Power Good circuit and default not populated. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 142 of 164...

  • Page 143: Mechanical Specification

    Qseven Generic Carrier Board PCB form factor is Nano-ITX with size of 120 × 120 mm (4.7inch × 4.7 inch). Qseven Generic Carrier Board PCB dimension with Mounting hole placement detail is shown in the below figure. Figure 46: Board Mechanical Dimension Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 143 of 164...

  • Page 144: Generic Qseven Carrier Board Pcb Silk Screen

    Generic Qseven Carrier Board PCB silkscreen top view and bottom view with Optional Feature’s Identifier highlighted are shown in the below Figures. This will be useful while mounting the Optional Features in Qseven Carrier board. Figure 47: PCB Silkscreen Top Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 144 of 164...

  • Page 145: Figure 48: Pcb Silkscreen Bottom

    Generic Qseven Carrier Board Hardware User Guide Figure 48: PCB Silkscreen Bottom Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 145 of 164...

  • Page 146: Expansion Pin-Out Based On I.mx6 Som

    Generic Qseven Carrier Board Hardware User Guide 6 APPENDIX II The Qseven Generic Carrier Board Expansion connector pin-out for all iWave’s Qseven CPU Modules is mentioned in below Tables. Expansion Pin-out based on i.MX6 SOM Table 50: Carrier Board Expansion Connector pin-out based on i.MX6 SOM...
  • Page 147 EIM Data & address line 10. Expansion Connector 2 Output EIM_DA9 Connected to 25 Pin of Input/ 3.3V CMOS EIM Data & address line 9. Expansion Connector 2 Output Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 147 of 164...
  • Page 148 DISP0_DAT11 Connected to 38 Pin of Output 3.3V CMOS Parallel LCD Data11 (Green Expansion Connector 1 Data3). DSI_D0P Connected to 56 Pin of Output Differential MIPI DSI differential data Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 148 of 164...
  • Page 149 ESAI High Frequency Clock (ENET_RXD0) Expansion Connector 1 Output for Transmitter. Power Ground. Power Ground. SPDIF_OUT1 Connected to 17 Pin of Output 3.3V CMOS SPDIF output line. (GPIO_19) Expansion Connector 1 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 149 of 164...

  • Page 150: Figure 33: Expansion Connector 1

    MIPI DSI differential data1 Expansion Connector 1 positive. 102 DISP0_DAT8 Connected to 45 Pin of Output 3.3V CMOS Parallel LCD Data8 (Green Expansion Connector 1 Data0). 103 GND Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 150 of 164...
  • Page 151 Ground. 117 Power VCC_5V Power VCC Power Supply. 118 Power VCC_5V Power VCC Power Supply. 119 Power VCC_5V Power VCC Power Supply. 120 Power VCC_5V Power VCC Power Supply. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 151 of 164...

  • Page 152: Expansion Pin-Out Based On Am389X Som

    Ground. MDIO_MDCLK Connected to 45 Pin of Output 3.3V Ethernet Clock. Expansion Connector 2 EMAC1_TXD4 Connected to 43 Pin of Output 3.3V Ethernet Transmit Data 4. Expansion Connector 2 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 152 of 164...
  • Page 153 EMAC1_TXCLK Connected to 26 Pin of Input 3.3V Ethernet Transmit Clock. Expansion Connector 2 EMAC1_RXD3 Connected to 23 Pin of Input 3.3V Ethernet Receive Data 3. Expansion Connector 2 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 153 of 164...
  • Page 154 Connected to 56 Pin of Input/ 3.3V General Purpose Pin 7. Expansion Connector 1 Output GP1[21] Connected to 57 Pin of Input/ 3.3V General Purpose Pin 21. Expansion Connector 1 Output Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 154 of 164...
  • Page 155 Connected to 17 Pin of Input/ 3.3V General Purpose Pin 8. Expansion Connector 1 Output MCA0_AFSX Connected to 16 Pin of Input 3.3V McASP Audio Port. Expansion Connector 1 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 155 of 164...
  • Page 156 Video Input 0 Port A data Expansion Connector 1 input 14. 102 VIN[0]A_D[13] Connected to 45 Pin of Input 3.3V Video Input 0 Port A data Expansion Connector 1 input 13. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 156 of 164...
  • Page 157 Ground. 117 Power VCC_5V Power VCC Power Supply. 118 Power VCC_5V Power VCC Power Supply. 119 Power VCC_5V Power VCC Power Supply. 120 Power VCC_5V Power VCC Power Supply. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 157 of 164...

  • Page 158: Expansion Pin-Out Based On I.mx51 Som

    Ground. AUD6_TXC Connected to 45 Pin of Output 1.8V Audio Transmit Clock. Expansion Connector 2 AUD6_TXFS Connected to 43 Pin of Output 1.8V Audio Transmit Frame. Expansion Connector 2 Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 158 of 164...
  • Page 159 1.8V EIM Data & address line 8. Expansion Connector 2 Output EIM_DA7 Connected to 23 Pin of Input/ 1.8V EIM Data & address line 7. Expansion Connector 2 Output Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 159 of 164...
  • Page 160 Pin of Input/ 3.3V General Purpose Pin 32. Expansion Connector 1 Output B_GPIO33 Connected to 57 Pin of Input/ 3.3V General Purpose Pin 33. Expansion Connector 1 Output Power Ground. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 160 of 164...
  • Page 161 Connected to 16 Pin of Input/ 3.3V General Purpose Pin 14. Expansion Connector 1 Output B_GPIO13 Connected to 15 Pin of Input/ 3.3V General Purpose Pin 13. Expansion Connector 1 Output Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 161 of 164...
  • Page 162 Pin of Output 3.3V Audio Output Data. Expansion Connector 1 103 GND Power Ground. 104 GND Power Ground. 105 NC Connected to 75 Pin of No Connection. Qseven Edge Connector Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 162 of 164...
  • Page 163 Ground. 117 Power VCC_5V Power VCC Power Supply. 118 Power VCC_5V Power VCC Power Supply. 119 Power VCC_5V Power VCC Power Supply. 120 Power VCC_5V Power VCC Power Supply. Rev 2.0 iWave Systems Technologies Pvt. Ltd. Page 163 of 164...

  • Page 164: Iwave's Compatible Qseven Cpu Modules

    Generic Qseven Carrier Board Hardware User Guide 7 APPENDIX III iWave’s Compatible Qseven CPU Modules Generic Qseven Carrier Board is board is compatible with the following iWave’s Qseven CPU modules.  Rainbow-G15M-Q7 (i.MX6 Qseven CPU Module): http://www.iwavesystems.com/product/cpu-modules/i-mx6-q7-som/i-mx6-qseven-som.html  Rainbow G12M-Q7 (AM389x Qseven CPU Module): http://www.iwavesystems.com/product/cpu-modules/am389x-dm816x-som/am389x-dm816x-q7-...

Table of Contents
