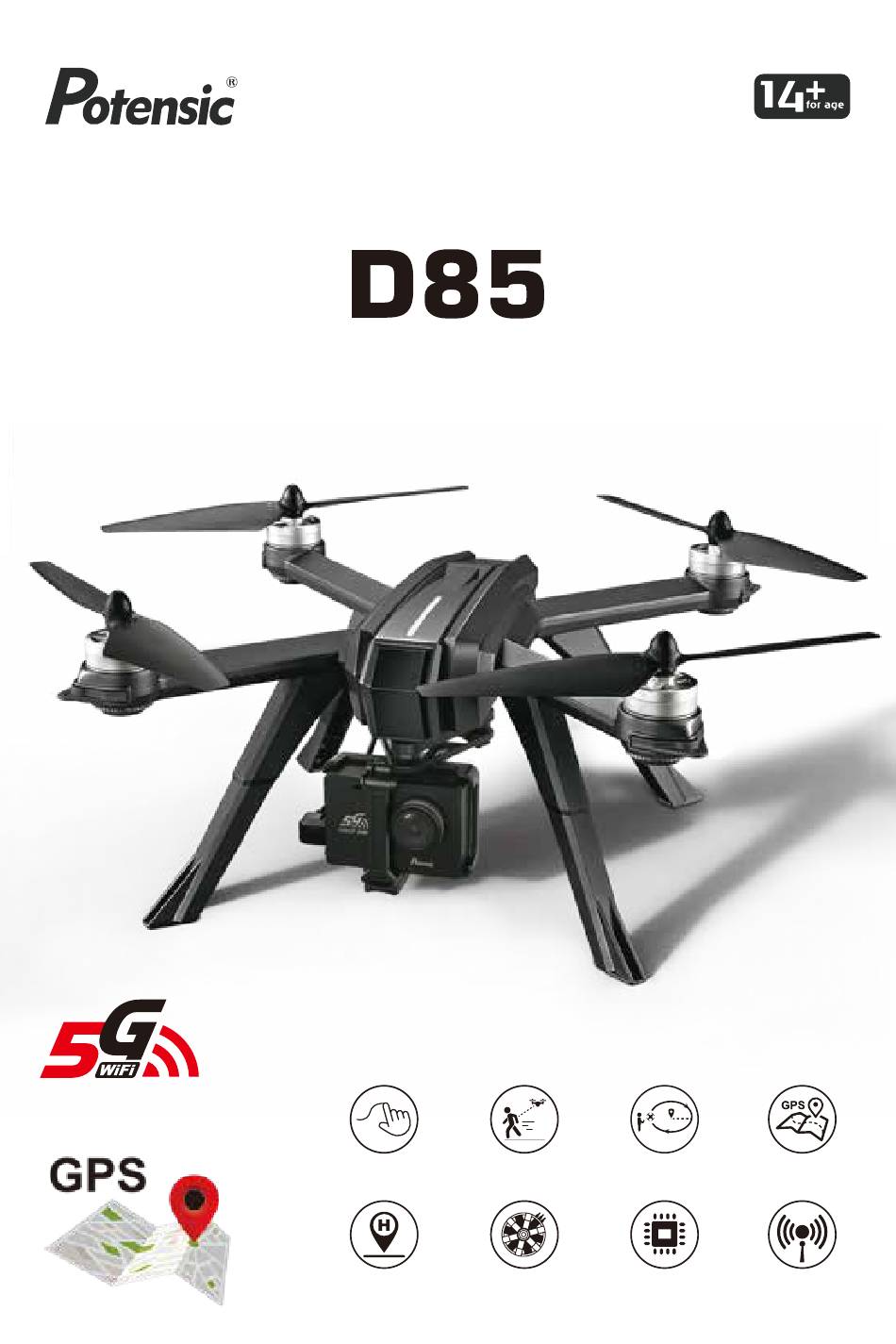

User Manual
Farther.Faster.Clearer
(This camera works with 5G WIFI only.
Please make sure that your device
supports 5G WIFI.)
GPS Positioning
TapFly
Follow me
Point of interest
Brushless motor
Independent ESC
2.4GHz two-way
One key to Return
communication
（2204 1500KV）
(stuck and high-temperature protection)
(weak signal alarm, low voltage alarm)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Potensic D85
Summary of Contents for Potensic D85
- Page 1 User Manual Farther.Faster.Clearer (This camera works with 5G WIFI only. Please make sure that your device supports 5G WIFI.) GPS Positioning TapFly Follow me Point of interest Brushless motor Independent ESC 2.4GHz two-way One key to Return communication （2204 1500KV） (stuck and high-temperature protection) (weak signal alarm, low voltage alarm)
- Page 2 Important statement and safety guidelines Thank you for purchasing Potensic product. Please read this manual carefully before use and retain it for future reference. It should be retained for future reference. Important statement ● This aircraft is not a toy, but hobby grade model. It should be assembled and operated properly. Pilot must operate this aircraft in safe way.
-
Page 3: Product Profile
● Bear proper operation and safe flight guidelines in mind Please take a careful look at the manuals before flights for important information of product functions and operation tips, and learn how to use the accessory, safe flight always comes first. Stay informed of and abide strictly by relevant local laws and regulations. - Page 4 Product assemble How to attach and detach the propellers ● Attach the propellers: Install propeller A and propeller B on the corresponding motor shaft and fix the rotor propellers tightly by rotating them as per the “lock” direction showed on the propellers (indicated as Pic. 1). ●Detach the propellers: Fix the brushless motor by rotor propellers changing tool and then rotate and remove the propellers as per the “unlock”...
- Page 5 Battery installation Slide the battery into the battery compartment at the rear of the aircraft by pushing with appropriate force, the aircraft will make beep sounds with LED lights flashing. Please make sure that the battery is installed firmly before flying. Attention: The battery should be installed firmly, failure to do so may affect the flight safety of your aircraft.
- Page 6 ● When charging is proceeding, the green light keeps flashing and the red light keeps solid on; ● When charging is finished, both of the green light and red light keep solid on; ● If the battery and charging converter is not connected with the balance charger, but the balance charger is connected with the power adaptor, the red light keeps solid on and the green light is off;...
- Page 7 Camera & Camera mount installation Mounted on Potensic original 5G WIFI camera and install “Potensic-M2” APP on mobile device, your aircraft will be capable of flying in the intelligent flight modes: Follow Me, Point of Interest and Waypoint flight.
- Page 8 TF CARD Pic. 1 Pic. 2 Pic. 3 soft Pic. 4 Pic. 5 Pic. 6 Pic. 7 Pic. 8 Pic. 9 Major parts of the aircraft [1] Brushless motor [2] High landing gear [3] Propeller [4] Camera/Camera mount USB aerial camera port [6] Battery compartment [7] Front light Rear light...
- Page 9 Major parts of the remote controller [1] One key to take off / land [2] One key to take off / land [3] Left stick [4] Gesture/ GPS mode switch [5] Power switch [6] Power indicator [7] One key to return [8] Photo/shooting [9] Right stick [10]...
- Page 10 How to install the battery of remote controller Open the battery cover of the transmitter, insert 4*AA batteries following the polarity indicators ( Picture below, battery is not included)and then close it. ●Insert batteries with correct polarity. ●Non rechargeable batteries are not to be charged; the transmitter need 4*AA batteries for work.
- Page 11 Throttle mode switch Left hand throttle and right hand throttle are available for option at the remote controller. User can choose different control stick mode as per operation habit. There are 2 stick modes that could be found as below: Forward control Forward control Throttle control...
- Page 12 Remote controller control stick calibration Step 1. Keep pressing the red locking button and turn on the remote controller (indicated as pic.1) at the same time; Step 2. Press the calibration button for 3 seconds, the remote controller will make 3 beep sounds and the indicator light of the remote controller turns from flashing quickly to slowly.
- Page 13 Aircraft status indicator Indicator status Meanings Aircraft 2.4GHz disconnected. Front and rear lights flash yellow rapidly. Front and rear lights flash red, green and Aircraft is in initialization detection status. yellow alternatively. Front lights glow solid red, rear lights glow No GPS signal, aircraft is in gesture mode.
- Page 14 Aircraft compass calibration Attention: 1. Compass calibration should be performed after successful aircraft initialization detection. 2. Aircraft compass calibration should be done for every flight. That is to say, if changing new battery or the battery is reinstalled, compass calibration should be done again. Two steps of compass calibration: Step 1: Horizontal calibration After successful aircraft initialization detection, the aircraft front and rear lights flash yellow...
- Page 15 Gyroscope calibration After the aircraft and the remote controller are banded, set the aircraft on flat ground and follow the indication photo as below to calibrate the gyro. Once the aircraft front lights turn from flashing to solid on, it means that the gyro calibration is succeeded. Mode ●...
- Page 16 Operate the aircraft Remote controller Aircraft Remote controller Aircraft Rotate Rotate clockwise counterclockwise Front Mode Mode Rear Down Leftward flight Backward Front Mode Mode Rear Forward Rightward flight Flight mode One-key takeoff/landing ● After the aircraft unlocked, short-press the “ ”...
- Page 17 GPS mode Slide the button to position “B” (indicated as below), the aircraft is in GPS mode and can precisely position and hover by the assistance of the GPS module. Mode Headless mode Slide the Headless mode switch button to position “B” (indicated as below); the aircraft enters into headless mode.
- Page 18 Failsafe RTH If the GPS signal is available (more than 7 satellites is presented) and the Home Point is recorded previously. Failsafe RTH will be triggered if the remote controller signal is lost for more than 6 seconds, the flight-control system will control the aircraft automatically and the aircraft will fly back to the last recorded Home Point.
- Page 19 Low voltage warning ●When the battery icon “ ” is shown on the LCD screen, and the aircraft front lights glow solid on and the rear lights keep flashing slowly, it means that the battery of aircraft is nearly low voltage. ●When the battery icon “...
- Page 20 When “ ” legend is shown, it means WiFi connecting is successful. Exit settings and tap “Potensic-M2” APP at your mobile device, then select your aircraft model on the home page; click “ ” to enter into the real-time image transmission interface.
- Page 21 App New Function 1. Refresh button “ ”on left: Please click this button to refresh image if it freezes up during flight. 2. Maps button “ ” “ ” on right: Plane Imagery Map “ ” It shows position and place name only. Satellite Imagery maps “...
- Page 22 Lamp cover of the LED light parts Battery Plastic plug front and rear light B3PROV205 B3PROV206 B3PROV207 B3PROV208 LED Light holder Screws pack Front/Rear light bar Front ESC parts B3PROV209 B3PROV210 B3PRO06 B3PRO07 Flight-control board Clockwise motor Counter-clockwise motor Transparent plastic part B3PRO08 B3PRO09 B3PRO10...
- Page 23 GPS Module Compass Heat sink Camera mount B2C008 B2C011 B80018 G6000 Mobile phone holder Remote controller C5000S GR6221A Optional accessories 720P HD 1080P FHD FHD Recording Camera 5G WIFI Camera 5G WIFI Camera C4000 C5000 C6000 Trouble shooting Phenomenon Solution The Gyro of the aircraft is under signal detecting condition, set The lights are flashing quickly.
- Page 24 Note: a) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
