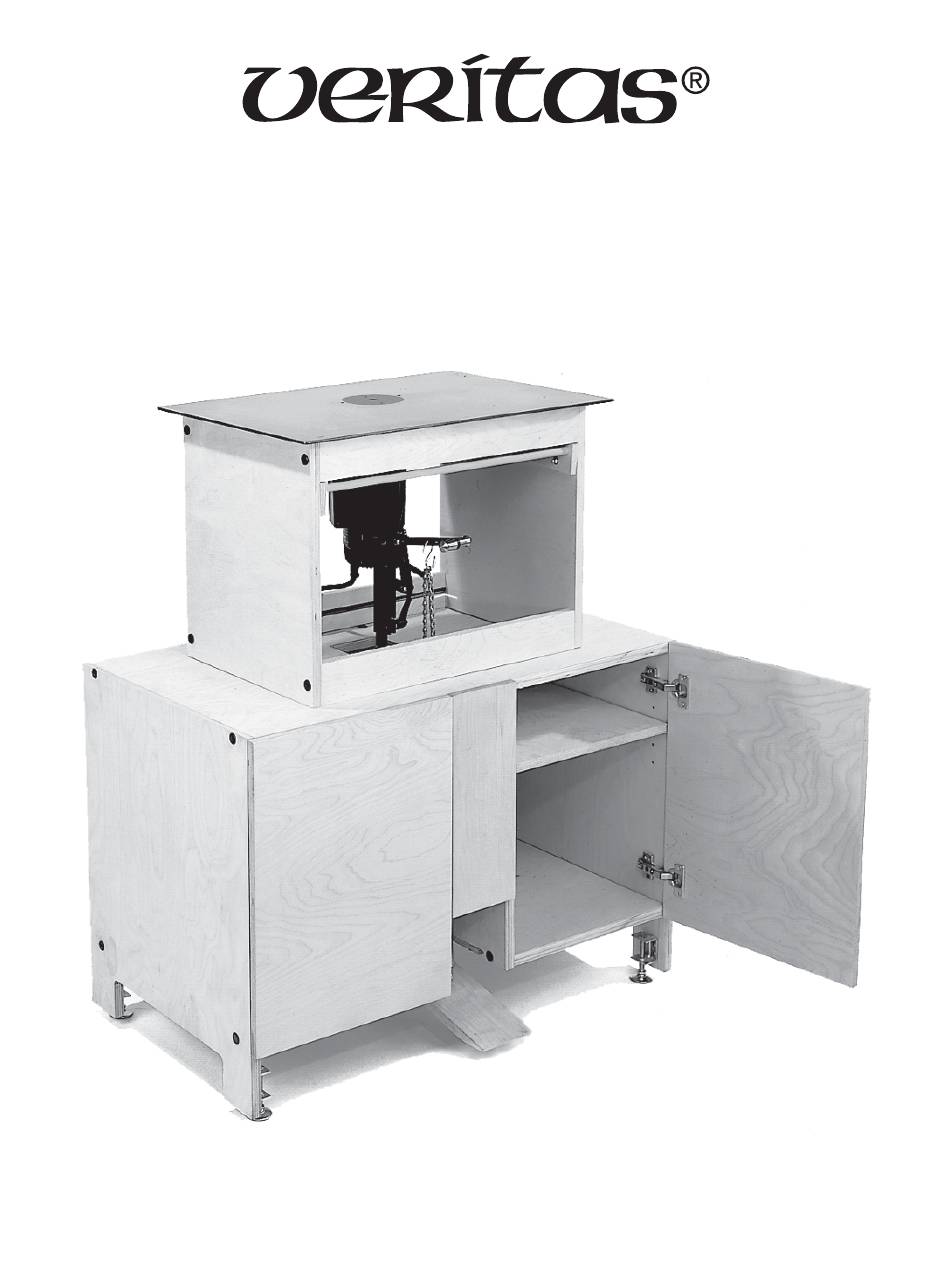

  • Page 1 Router Table Floor Stand Owner’s Manual 05J20.40...

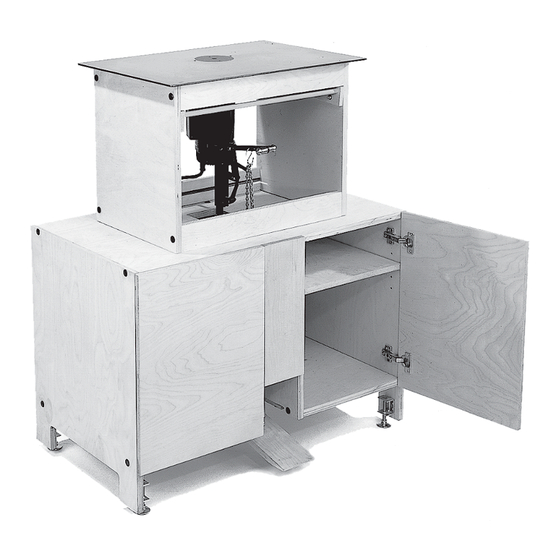

  • Page 2 Veritas Router Table Top and Router Table Stand. It is equipped with a pedal to connect with the Veritas Bit Jack. The fl oor stand offers ample storage area for large accessories such as the Veritas Pin Router Arm, as well as the necessary router bits and tools that are required for typical router table work.
  • Page 3 ® Veritas Router Table Floor Stand Parts and Hardware Assembly The router table fl oor stand is assembled using our Qty. Description patented tension-rod system, ensuring a solid, secure Top Panel assembly. Bottom Panel 1. The first step is to install...
  • Page 4 ® Veritas Router Table Floor Stand 4. Slide the back panel into place. Ensure that it seats into the dado in the top panel. There should be enough flex in the sides to allow this. If not, loosen the connector nuts slightly.
  • Page 5 ® Veritas Router Table Floor Stand 6. Screw the two knock-down connector pins to the 8. Install a third 33 " long tension rod across the non-dadoed face of the interior panels as shown, back of the bottom panel. using the #6 × 1" flat-head screws provided.
  • Page 6 ® Veritas Router Table Floor Stand 13. Install one leveller bracket in each of the four 17. Install the pedal to the underside of the bottom corners as shown. panel. Temporarily tape the pedal to the front brace to keep it from flopping around.
  • Page 7 " screws supplied with the router table stand. Veritas Router Table Top (05J20.01) Router with Veritas Bit Jack (05J24.20, 21, 22, 40) Veritas Router Table Stand (05J20.30) Figure 21: Hinge adjustment. Figure 23: Locating the router table stand and table top.
  • Page 8 #6 × " Flat-Head Screw Note: The Veritas Router Fence is too long to fi t inside the stand. When not in use, it may be placed on the front ledge Knock-Down where the router table stand meets the fl oor stand.
