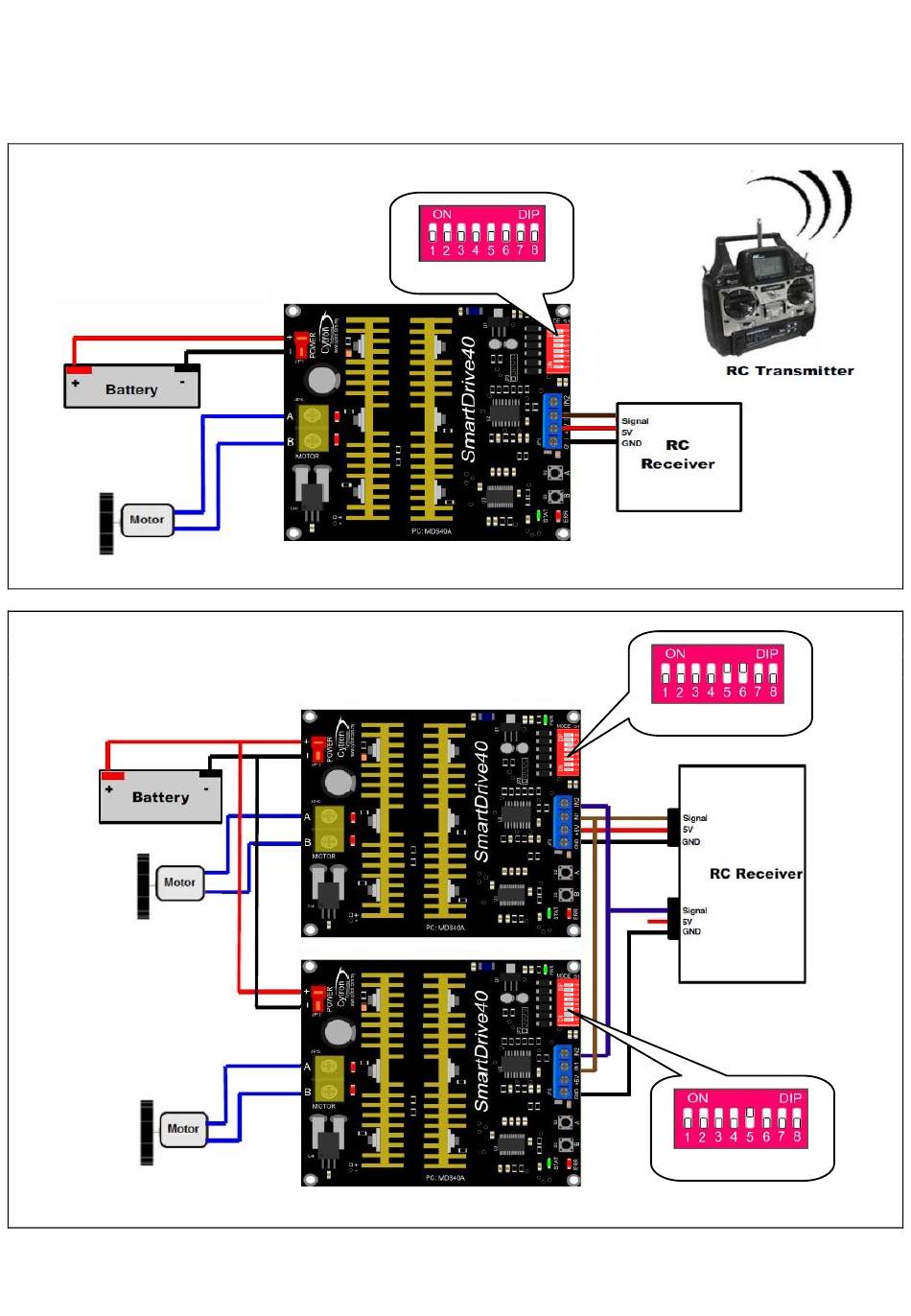

RC INPUT MODE
RC Single Channel Mode:
RC Mixed Mode:
* Please refer to SmarDrive40 User's Manual for more detailed information and other input mode. It can be
downloaded from http://www.cytron.com.my.
SmartDrive40 Quick Start Guide
RIGHT MOTOR
LEFT MOTOR
(00000000)
(00001100)
Speed
Steering
(00001000)
Advertisement
Related Manuals for Cytron SmartDrive40
Summary of Contents for Cytron SmartDrive40
- Page 1 SmartDrive40 Quick Start Guide RC INPUT MODE RC Single Channel Mode: (00000000) RC Mixed Mode: RIGHT MOTOR (00001100) Speed Steering (00001000) LEFT MOTOR * Please refer to SmarDrive40 User’s Manual for more detailed information and other input mode. It can be...
- Page 2 ANALOG/PWM INPUT MODE PWM Single Channel, Sign-Magnitude Mode: (10010001) Analog Mixed Mode: RIGHT MOTOR (00011100) Speed Steering (00011000) LEFT MOTOR * Please refer to SmarDrive40 User’s Manual for more detailed information and other input mode. It can be downloaded from http://www.cytron.com.my.
