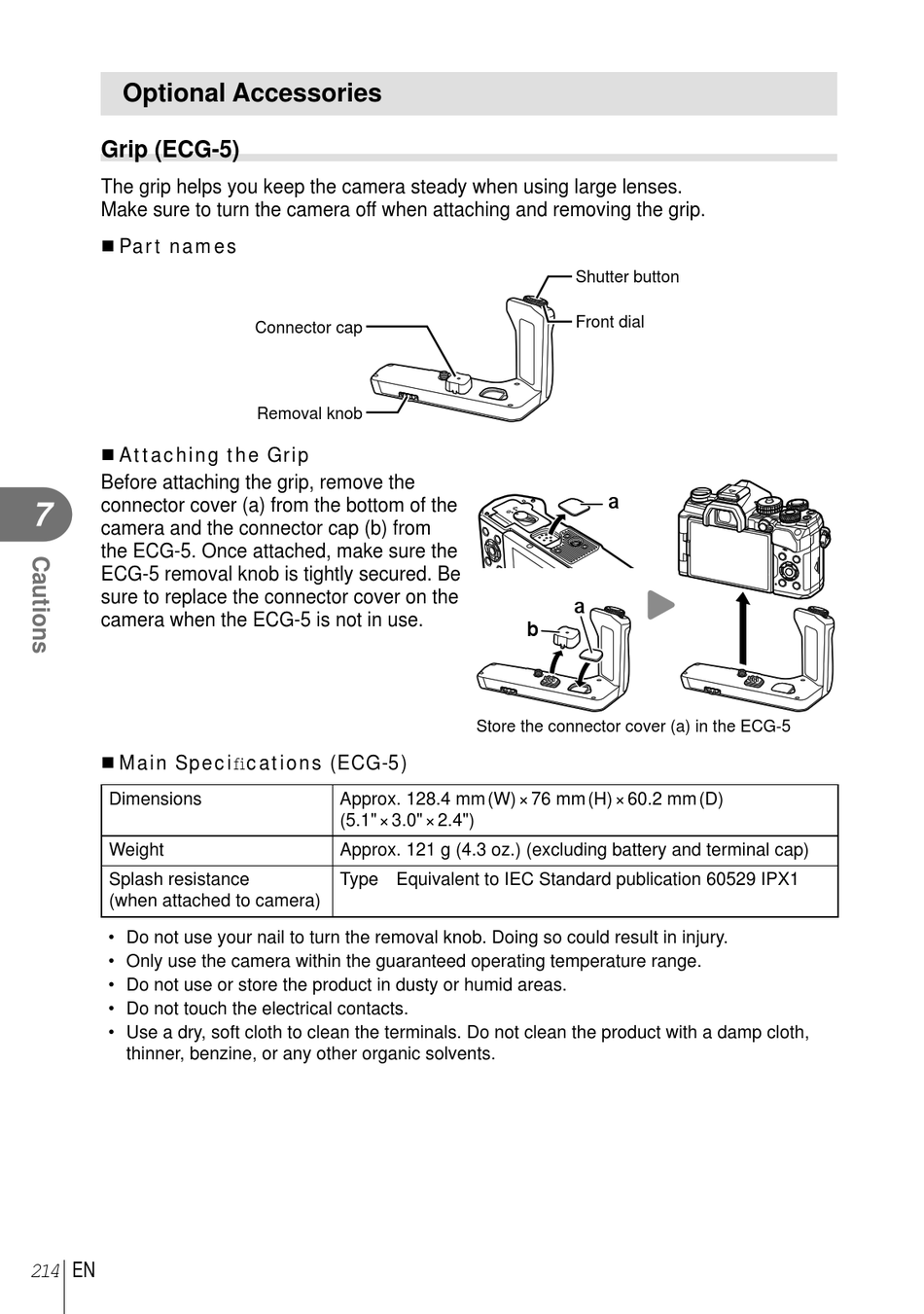

Optional Accessories; Grip (Ecg-5) - Olympus E-M5 Mark III Instruction Manual

Optional Accessories

Grip (ECG-5)

The grip helps you keep the camera steady when using large lenses.
Make sure to turn the camera off when attaching and removing the grip.
 Part names
 Attaching the Grip
Before attaching the grip, remove the
connector cover (a) from the bottom of the
7
camera and the connector cap (b) from
the ECG-5. Once attached, make sure the
ECG-5 removal knob is tightly secured. Be
sure to replace the connector cover on the
camera when the ECG-5 is not in use.
 Main Specifi cations (ECG-5)
Dimensions
Weight
Splash resistance
(when attached to camera)
• Do not use your nail to turn the removal knob. Doing so could result in injury.
• Only use the camera within the guaranteed operating temperature range.
• Do not use or store the product in dusty or humid areas.
• Do not touch the electrical contacts.
• Use a dry, soft cloth to clean the terminals. Do not clean the product with a damp cloth,
thinner, benzine, or any other organic solvents.
214 EN
Connector cap
Removal knob
Approx. 128.4 mm (W) × 76 mm (H) × 60.2 mm (D)
(5.1" × 3.0" × 2.4")
Approx. 121 g (4.3 oz.) (excluding battery and terminal cap)
Type Equivalent to IEC Standard publication 60529 IPX1
Shutter button
Front dial
a
a
b
Store the connector cover (a) in the ECG-5
