PGL5/6 - Parking Garage Luminaire
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
CAUTION: All wiring should be done by a qualified electrician. DO NOT operate luminiare with missing or
damaged lens.
KEEP THIS SHEET FOR FUTURE REFERENCE.
Attention: If your fixture is equipped with a multi-tap
ballast and if no voltage was specified on the purchase
order, the ballast has been wired for operation on a 120 or
277 volt circuit (347V in Canada). If other than 120 or 277
volts is required, i.e.; 208V, 240V, see Ballast Wiring
Information on page 4.
Tool Required:
Flat Blade Screwdriver
PREPARING FOR INSTALLATION:

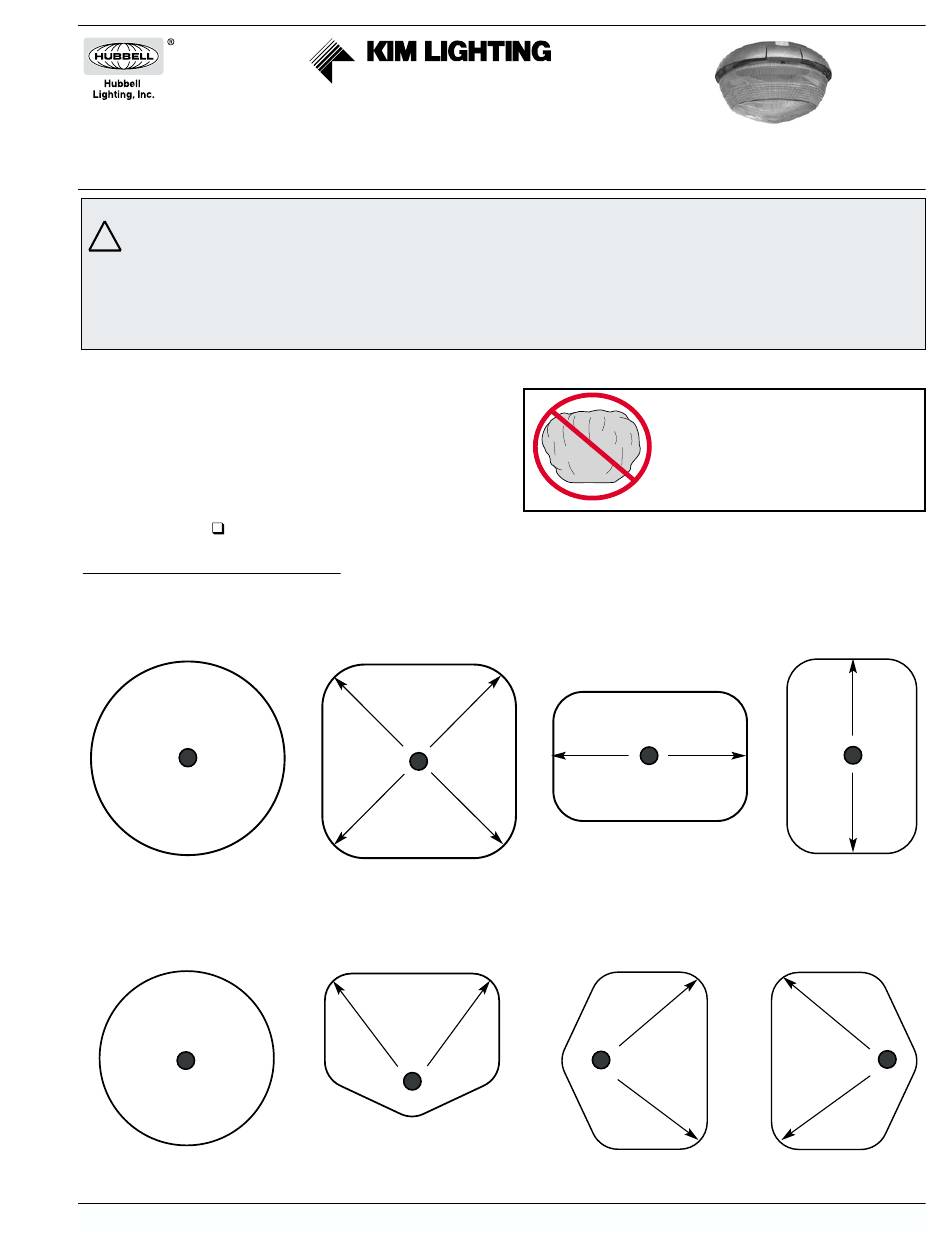

Step 1 - Verify fixture locations: To assure a correct installation, the specifier should key the fixture locations on the
garage plan with the icon for a PGL51/61, PGL52/62, PGL53/63, PGL54/64, PGL55/65, PGL56/66, PGL57/67,
or PGL58/68.
PGL51/61
PGL55/65
ECN 100715008
Revised 7/16/10
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
PGL52/62
SHOWN ARE THE LIGHT PATTERNS FOR EACH FIXTURE.
PGL56/66
Status 7
Installation Instructions
Never energize fixtures with plastic
bag - installed for protection during
construction or painting. This will
cause permanent damage from
overheating.
PGL53/63
PGL57/67
PGL51/61
PGL52/62
PGL53/63
PGL54/64
PGL55/65
PGL56/66
PGL57/67
PGL58/68
WARNING
PGL54/64
PGL58/68
Part No. 95667
