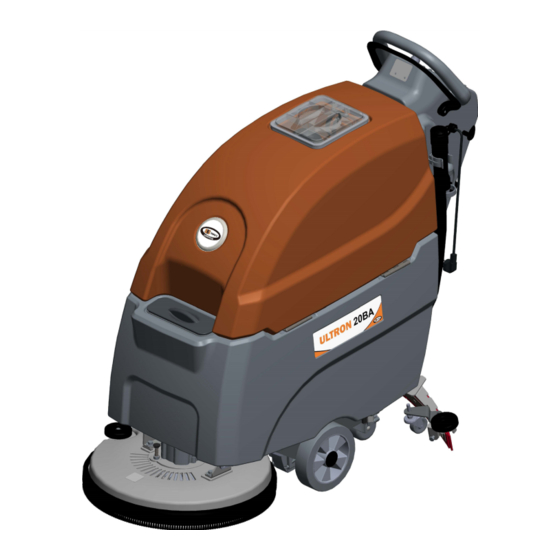

OWNER'S MANUAL
IMPORTANT: READ OWNER'S MANUAL CAREFULLY
MODEL
Ultron 20BA
Ultron 20TD
Ultron 20TO
8130052
REV.01(07-2018)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultron 20BA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triple S Ultron 20BA

Summary of Contents for Triple S Ultron 20BA

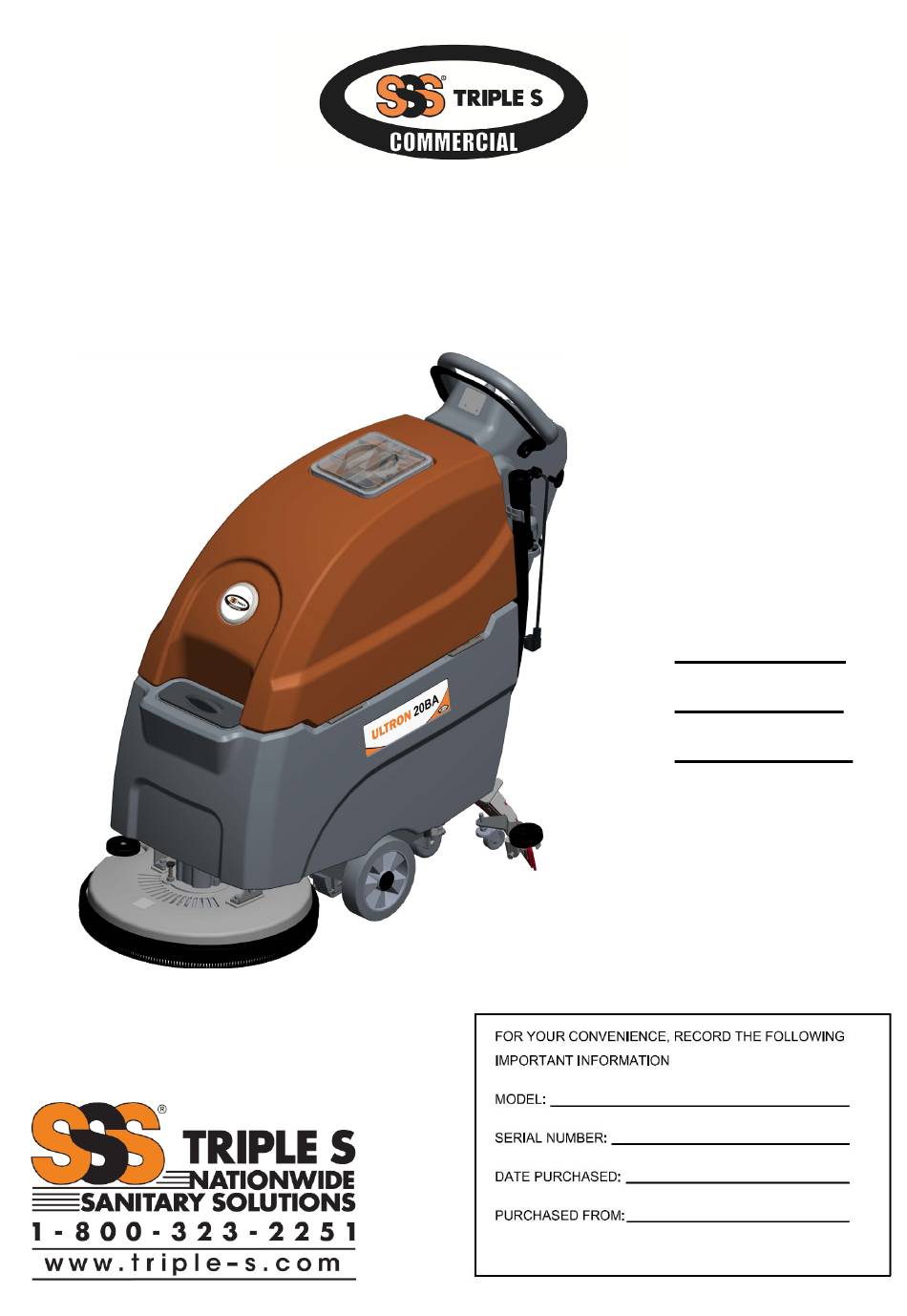

  • Page 1 OWNER'S MANUAL IMPORTANT: READ OWNER'S MANUAL CAREFULLY MODEL Ultron 20BA Ultron 20TD Ultron 20TO 8130052 REV.01(07-2018)
  • Page 2 OPERATOR MANUAL Read opeRatoR manual caRefully! HOW TO ORDER PARTS Please contact your local Triple S distributor, www.triple-s.com. Having the following information available will be helpful: • Machine model name • Serial number from serial plate • Part # and quantity (do not order by page number)

  • Page 3: Table Of Contents

    MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION....................8 WHILE OPERATING MACHINE..................8 TANK DRAINING........................9 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE...................9-10 FAULT CODE & SOLUTION....................11 BASIC TROUBLESHOOTING.....................12 TECHNICAL SPECIFICATIONS..................13 PARTS LIST......................14-42 WEAR AND TEAR PARTS....................43 WIRING DIAGRAM .......................44-45 SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 4: Safety Precautions

    - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 5: Machine Components

    14. LABEL, Logo 32. Recovery Tank Drain Hose 15. Hose Fill-Port 33. Recovery Tank 16. Squeegee Storage Bracket 34. Recovery Tank Cover 17. Main Power Key Switch 18. Control panel (see Panel components) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 6: Panel Components

    3. Brush motor indicator 11. Fault code 4. LED display screen 12. Timer 5. Solution flow indicator 13. Speed control button (-) 6. Solution flow control button (-) 14. Speed indicator 7. Solution flow control button (+) 15. Speed contorl button (+) 8. Fault message display area SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 7: Machine Setup & Installation

    3. Connect the vacuum hose to the squeegee assembly. Loop the hose by using the hose clip provided. 4. Check the squeegee blades for proper adjustment. SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 8: Machine Operation

    #10). water is picked up. 7. Ultron 20BA: Pull the control handle bail (see machine components, item #2) backwards to NOTE: See TANK DRAINING section to learn how start scrubbing by moving the machine forward.

  • Page 9: Tank Draining

    WARNING: Repairs are to be completed or floor drain. by a Triple S Dealer only. Any repairs 2. Remove the cover of the filter assembly (see completed by unauthorized persons will avoid machine components, item #29) to drain the the warrenty. SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 10 2. If any of the ten isolators show signs of wear, 7. Drain the recovery tank. degradation or damage, contact a Triple S 8. Drain the solution tank of all fluid. Dealer to replace all ten isolators. SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 11: Fault Code & Solution

    ● Return Control Unit ● ● Contact service center, Replace Return Control Unit Bad Control Unit ● ● the Control Unit Return Control Unit ● ● Return Control Unit ● ● SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 12: Basic Troubleshooting

    Fully recharge batteries Defective batteries Replace batteries Short run time Faulty battery charger Repair or replace battery charger Down pressure lever is set for extra scrub Lower down pressure lever head pressure SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 13: Technical Specifications

    45 in / 1,143 mm BatteRIeS 2-12, 130AH @ 20 hr Run tIme peR cHaRGe 3.5 Hours 3 Hours VoltaGe dc decIBel Rate at opeRatoR'S eaR, 68dB(A) <70dB(A) IndooRS GRade leVel, maX 5% (3°) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 14: Parts List

    PARTS LIST RECOVERY TANK GROUP SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 15 HEX BOLT M8×30 8111015 FLOAT, SHUT-OFF 2320220 BEND 1321210 SCREW, SELF-TAPPING, ST4×10 2320216 COVER, CLEAR 2320218 GASKET, CLEAR WINDOW 1221410 SCREW M4×10 1421409 FLAT WASHER M4.3×DIA9×0.8 2320217 RUBBER HINGE 8111022 WARNING LABEL SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 16: Parts List

    PARTS LIST VACUUM FAN GROUP SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 17 8112006 STUD M6×92 8132050 VACUUM MOTOR , 24VDC, 2-STAGE, KIT 1421612 FLAT WASHER M6×DIA12×1.6 1123608 LOCK NUT M6 1914300 TIE, NYLON, 5×300 8132007 MUFFLER, VACUUM MOTOR 1221512 SCREW M5×12 8133012 BRACKET SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 18 PARTS LIST SOLUTION TANK GROUP SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 19 LABEL,Ultron 20TO 8119005 BALL VALVE, G1/2 8119007 ELBOW G1/2 8113021 HANDLE, CONNECTOR 8113020 CONNECTOR 8114731 BATTERY CONNECT CABLE, ASSEMBLY 8113013 SPACER, BATTERY 8113011 BATTERY, 12TB115, 115AH, HOPPECKE 8133010 BATTERY, 6-EVF-100, 110AH, CHILWEE SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 20 BRACKET, CONNECTOR MOUNTING 1434300 LOCK WASHER, TOOTH, M3 1211325 SCREW M3×25 8134783 BATTERY CONNECT CABLE, ASSEMBLY 1422513 LOCK WASHER M5 1321110 SELF-TAPPING SCREW ST3.5×10 1421409 FLAT WASHER M4×DIA9×0.8 8133002 CAP, SOLUTION FILL SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 21 PARTS LIST CONTROL CONSOLE GROUP（Ultron 20BA） SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 22 BATTERY CHARGER POWER CORD, KIT 8132010A ON BOARD BATTERY CHARGER 1123406 LOCK NUT M4 8114005 CONNECTOR 1021840 HEX BOLT M8×40 1422821 LOCK WASHER M8 1421828 FLAT WASHER M8×DIA28×3 1021630 HEX HEAD BOLT M6×30, SS SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 23: Drain Hose

    8114402 BRACKET, SPRING 1521616 SCREW M6×16, HEX SCOKET 1534608 SET SCREW M6×8 8134301 LEVER, BAIL 8114300 ACTUATOR 8114306 SPRING 1535630 SET SCREW M6×30 8114101 SHAFT 1021512 HEX HEAD BOLT M5×12, SS SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 24 PARTS LIST CONTROL CONSOLE GROUP （Ultron 20TD） SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 25 LOCK NUT M4 8114005 CONNECTOR 1021840 HEX BOLT M8×40 1422821 LOCK WASHER M8 1421828 FLAT WASHER M8×DIA28×3 1021630 HEX HEAD BOLT M6×30, SS 8134082 CABLE, SQUEEGEE LIFT 8014101 LIFTING ROPE SPACER SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 26 8114402 BRACKET, SPRING 1521616 SCREW M6×16, HEX SCOKET 1534608 SET SCREW M6×8 8134301 LEVER, BAIL 8114300 ACTUATOR 8114306 SPRING 1535630 SET SCREW M6×30 8114101 SHAFT 1021512 HEX HEAD BOLT M5×12, SS SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 27 PARTS LIST FRAME & WHEEL GROUP（Ultron 20BA） SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 28: Sleeve, P/M

    NYLON WASHER DIA12.9×DIA24×2.5 8115404 BEARING, JOURNAL 8145001 BUSHING 1021840 HEX BOLT M8×40 1211325 SCREW M3×25 1434300 LOCK WASHER, TOOTH, M3 8014071 MICRO SWITCH 20A 8115500 CASTER, SWIVEL, 80MM 8115405 SLEEVE, P/M SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 29 PARTS LIST FRAME & TRANSAXLE GROUP（Ultron 20TD） SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 30 NYLON WASHER DIA12.9×DIA24×2.5 8115404 BEARING, JOURNAL 8145001 BUSHING 1021840 HEX BOLT M8×40 1211325 SCREW M3×25 1434300 LOCK WASHER, TOOTH, M3 8014071 MICRO SWITCH 20A 8115500 CASTER, SWIVEL, 80MM 8115405 SLEEVE, P/M SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 31 PARTS LIST SCRUB HEAD GROUP (Ultron 20BA/ Ultron 20TD) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 32: Warning Label

    FLAT WASHER M10×DIA30×2.5 8116202 8116205 SCREW M14×20 8111023 WARNING LABEL 1121913 HEX NUT M14 8116204 SRPING 8116210 KNOB M6 8116078 PROTECTIVE WHEEL 8115404 SLEEVE, P/M 1421824 FLAT WASHER M8×DIA24×2.0 1021825 HEX BOLT M8×25 SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 33: Sss Ultron 20Ba / Ultron 20Td / Ultron 20To

    PARTS LIST ORBITAL HEAD GROUP (Ultron 20TO) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 34 HEX SOCKET BOLT M6×16 8146107 ISOLATORS, M10×25 8146502 PAD DRIVER 1513020 HEX SOCKET SCREW, M10×20 1513625 HEX SOCKET SCREW, M6×25 8146205 PLATE 1513620 HEX SOCKET SCREW, M6×20 8146511 ELBOW, 3/8 8146512 TUBING, WIRE REINFORCED SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 35 PARTS LIST SCRUB HEAD LIFT GROUP (Ultron 20BA / Ultron 20TD) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 36 HEX BOLT M8×60 8117008 SPRING 8113109 BEARING, THRUST 1022845 HEX BOLT M8×45 8117004 ROLLER 1421612 FLAT WASHER M6×DIA12×1.6 1422616 LOCK WASHER M6 1021616 HEX BOLT M6×16 8117009 SPRING 8117001 BRACKET, GUIDE SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 37 PARTS LIST ORBITAL HEAD LIFT GROUP (Ultron 20TO) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 38 JOURNAL BEARING, SS 8125414 SLEEVE, STAINLESS STEEL 8117007 NYLON WASHER DIA 12.9× DIA 24×2.5 1435013 WAVE WASHER 1421824 FLAT WASHER M8× DIA 24×2 1021830 HEX HEAD BOLT M8×30 8146530 BRACKET, ORBITAL HEAD LIFT SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 39 PARTS LIST SQUEEGEE GROUP SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 40 SCREW M5×75 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SHAFT 8118623 SPACER 1123507 LOCK NUT M5 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 8118000-BK SQUEEGEE ASSEMBLY, LINATEX SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 41 PARTS LIST SOLUTION GROUP SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 42 TUBING ID=12MM L=100MM 1221412 SCREW M4×12 1422411 LOCK WASHER M4 1421409 FLAT WASHER M4×DIA9×0.8 8119003 SOLENOID VALVE, 24VDC 1962016 CLAMP, 10-16mm 8119203 TUBING ID=12MM L=135MM 8119204 TUBING ID=10MM L=360MM 8116100 WATER SUPPLY TUBE SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...

  • Page 43: Wear And Tear Parts

    PROTECTIVE WHEEL 8118021 SQUEEGEE BLADE, FRONT, LINATEX 8118022 SQUEEGEE BLADE, REAR, LINATEX 9050020 20" BRUSH, 0.7MM PP BRISTLE, BLACK, Ultron 20BA/TD (OPTIONAL) 9050020E 20" BRUSH, 0.5MM PP BRISTLE, BLUE, Ultron 20BA/TD (OPTIONAL) 9040019 19" PAD HOLDER, Ultron 20BA/TD 9040019K 19" PAD HOLDER, Ultron 20BA/TD (OPTIONAL) 8146116 ISOLATORS, M10×25, Ultron 20TO...

  • Page 44: Wiring Diagram

    EW: Solution solenoid valve switch LED1: Running lights SW3: Control handle start bail switch CHARGER: On board battery charger SW2: Safe switch, Scrub head lifting M1: Brush motor M2: Vacuum motor SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
  • Page 45 WIRING DIAGRAM WIRING DIAGRAM（Ultron 20TD & Ultron 20TO) SSS Ultron 20BA / Ultron 20TD / Ultron 20TO...
