Redback A 4486 Operating Manual

A 4486
1.0
Overview
The A 4486 paging microphone is a simple to use and elegant desk top design which provides paging to a single zone
(when used with the A 4487). A pre-announcement chime is available at the paging console and through the PA system.
Both of these are set by DIP switches on the rear of the unit. Provision has also been made on the rear of the unit for a
3.5mm BGM input for background music. The paging microphone can be used in conjunction with the A 4487 Line Out
Box or the A 4585 16 Zone Paging System.
The A 4487 Line out box provides a MIcrophone or Line level output which can be connected directly to the input of an
amplifier. Connection between the A 4486 and A 4487 is via a Cat5e cable which carries power and the balanced audio
output from the microphone. Power for the system can be connected at the microphone or the Line Out box.
The A 4486 paging microphone provides All Call paging when used with the A 4585. When using the A 4486 with the
A 4585 each paging microphone unit must be assigned an ID number through DIP switch settings on the rear of the A
4486. A maximum of seven paging consoles can be connected to the A 4585.
2.0
Features
• Single zone paging (when used with the A 4487).
• High level balanced output via Cat 5 cable
• 24V DC power supplied via Cat 5 cable
• Chime volume adjustment
• BGM volume adjustment
www.altronics.com.au
Redback® A 4486 Paging Console
• All Call zone paging (when used with the A 4585).
• 3.5mm BGM input on rear
• Pre-announcement chime.
• Mic volume adjustment
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
Operating Manual
A 4486
Paging Console

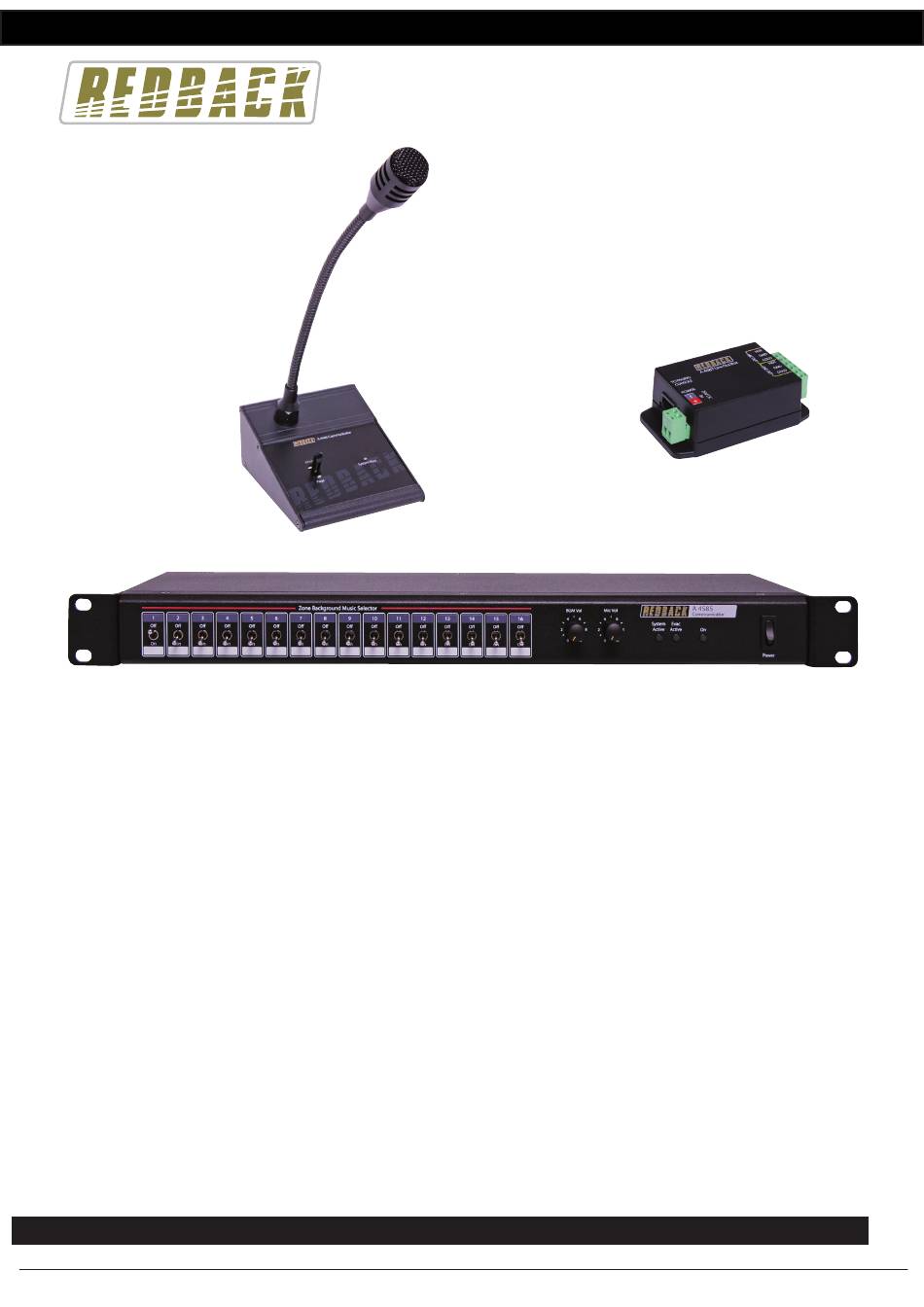

A 4487
