www.altronics.com.au
Operating Manual
A 4486
Paging Console
A 4487
Line Out Box
OVERVIEW

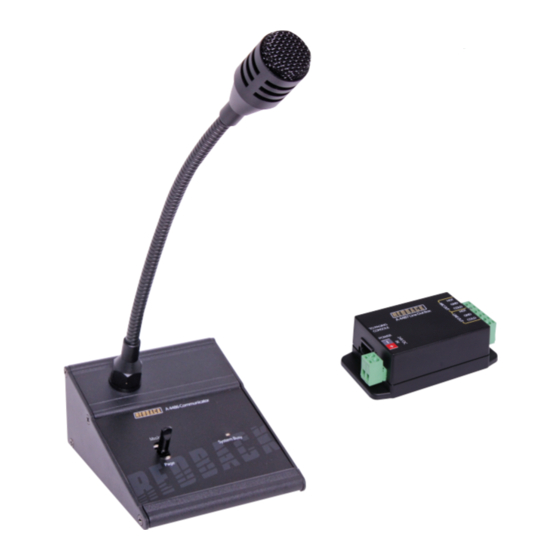

The A 4486 paging microphone is a simple to use and elegant desk top design which provides paging to a single zone. A
pre-announcement chime is available at the paging console and through the PA system. Both of these are set by DIP
switches on the rear of the unit. Provision has also been made on the rear of the unit for a 3.5mm BGM input for back-
ground music.
The A 4487 Line out box provides a MIcrophone or Line level output which can be connected directly to the input of an
amplifier. Connection between the A 4486 and A 4487 is via a Cat5e cable which carries power and the balanced audio
output from the microphone. Power for the system can be connected at the microphone or the Line Out box.
Features
• Single zone paging.
• High level balanced output via Cat 5 cable
• 3.5mm BGM input on rear
• 24V DC power supplied via Cat 5 cable
• Pre-announcement chime.
• Chime volume adjustment
• Mic volume adjustment
• BGM volume adjustment
Distributed by Altronic Distributors Pty. Ltd.
Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au
Redback® Proudly Made In Australia
User manual revision number: 1.1 20/02/2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Redback A 4486
Summary of Contents for Redback A 4486
- Page 1 OVERVIEW The A 4486 paging microphone is a simple to use and elegant desk top design which provides paging to a single zone. A pre-announcement chime is available at the paging console and through the PA system. Both of these are set by DIP switches on the rear of the unit.
- Page 2 24VDC In Fig 1 1 2 3 4 1 2 3 4 A 4486 Rear Panel Connections 24V DC connector 2.1mm DC jack (centre pin positive). RJ45 connector For connection back to the A 4487. Either port can be used.
- Page 3 CAT5e cable to feed the system from either end. If powering the system at the A 4486 end we recommend fitting the power supply with the Altronics P 0602 2.1mm DC Plug with collar which can be screwed onto the DC socket to prevent accidental disconnection of power.
- Page 4 Chime Volume:........Rear Volume BGM Volume:........Rear Volume POWER SUPPLY:........24V DC @ 0.5 Amp DIMENSIONS:≈..... A 4486 - 117W x 135D x 350H DIMENSIONS:≈......A 4487 - 90W x 52D x 30H WEIGHT: ≈............A 4486 - 0.7 kg Redback® Proudly Made In Australia...
