Summary of Contents for Verizon 5G Home Receiver

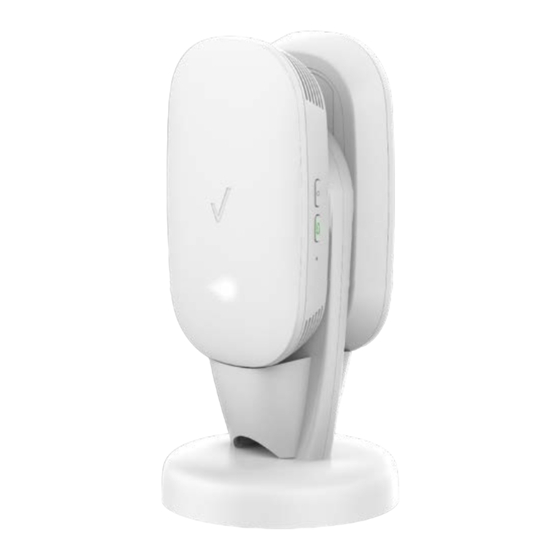

- Page 1 5G Home Receiver User Guide...
- Page 2 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Safety Warnings
AC adapter identified in the list below. Use of another adapter could result in damage to the unit. The following AC adapter is qualified for use with this Verizon 5G Home Router: Delta, model ADP-48GR BA or equivalent UL listed power source rated @ output 12V DC, Maximum 4.0A. -
Page 4: Table Of Contents
1.2 System Requirements ........................1 1.3 Key Features ............................2 1.4 5G Home Receiver ..........................2 1.5 The Indoor Cradle of the 5G Home Receiver ................4 Chapter 2 Connecting the 5G Home Receiver ..................5 2.1 Installation Overview .......................... 5 2.2 Powering Up ............................ -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction This chapter includes a list of items included with the Verizon 5G Home Receiver, the minimum system requirements for, and an overview of the receiver’s features. Unboxing Information Inside the product package for the Verizon 5G Home Receiver, you should find the following items: •... -
Page 6: Key Features
• World's first 5GNR home broadband receiver (n260 and n261) • Self-installation: No professional installation necessary • Supports Wi-Fi 6 and 2.5 Gbps Ethernet • Aesthetically designed 5G Home Receiver 5G Connection LED (Front LED) Installation Mode • Solid white: Receiver is on. - Page 7 Reset Button Installation Mode • No function Regular Usage Mode • Press and hold for 3 seconds to reboot the receiver. • Press and hold for 20 seconds to restore to factory default settings. 2. Pair Button (with LED indicator) Installation Mode •...
-
Page 8: The Indoor Cradle Of The 5G Home Receiver
The Indoor Cradle of the 5G Home Receiver When the cradle is connected to a power supply: • Solid green: Battery is fully charged. • Solid red: Battery is not fully charged. When the cradle is not connected to a power supply: •... -
Page 9: Chapter 2 Connecting The 5G Home Receiver
Installation Overview Powering Up The 5G Home Receiver consists of three components - ODU (outdoor receiver), IDU (indoor receiver) and the cradle on which the ODU and the IDU are mounted. 2. Remove the decoration cover and make sure that the USB cable and the DC cable are properly plugged in. -
Page 10: Finding The Best Location
Receiver will enter the installation mode by default. 2. Download the My Verizon app, then connect your phone to the receiver via Bluetooth. 3. At the chosen location, please hold/place the cradle in such a way that the IDU always faces inside (towards you). -
Page 11: Connecting To The Verizon 5G Home Router
WPS pairing as a client. Note: Please note that the Wi-Fi connection between the receiver and the router is only possible with the Verizon 5G Home Router. If you are using your own router, please connect it with an Ethernet cable. -
Page 12: Chapter 3 Product Specifications
Chapter 3 Product Specifications Cradle • Battery: 3.6V 3450mAh • Wi-Fi: 5G 802.11 ax MIMO 4 × 4. WPS, WPA, WPA2 • Ethernet: CAT6 2.5Gbps • Memory: DDR3: 512MB, NAND: 256MB • Embedded Antenna x 4 • 5G Wi-Fi 4x4 •... - Page 13 Mechanical Specifications 5G Home Receiver Cradle • LED (Dual LED) x 1 • DC jack x 1 • Battery button x 1 • Cable with DC plug x 1 • LED for 5G signal quality indication × 1 (Tri LED) •...
- Page 14 Environmental • Power: LVSKIDU: 12V/4A • Operating Ambient Temperature: 5°C to 40°C (IDU); -30°C to 55°C (ODU) • Operation Relative Humidity: 5% to 90% non-condensing • Storage Temperature: –45°C to 70°C • Shipping and Storage Relative Humidity: 5% to 85%...
