PROBES AND ACCESSORIES

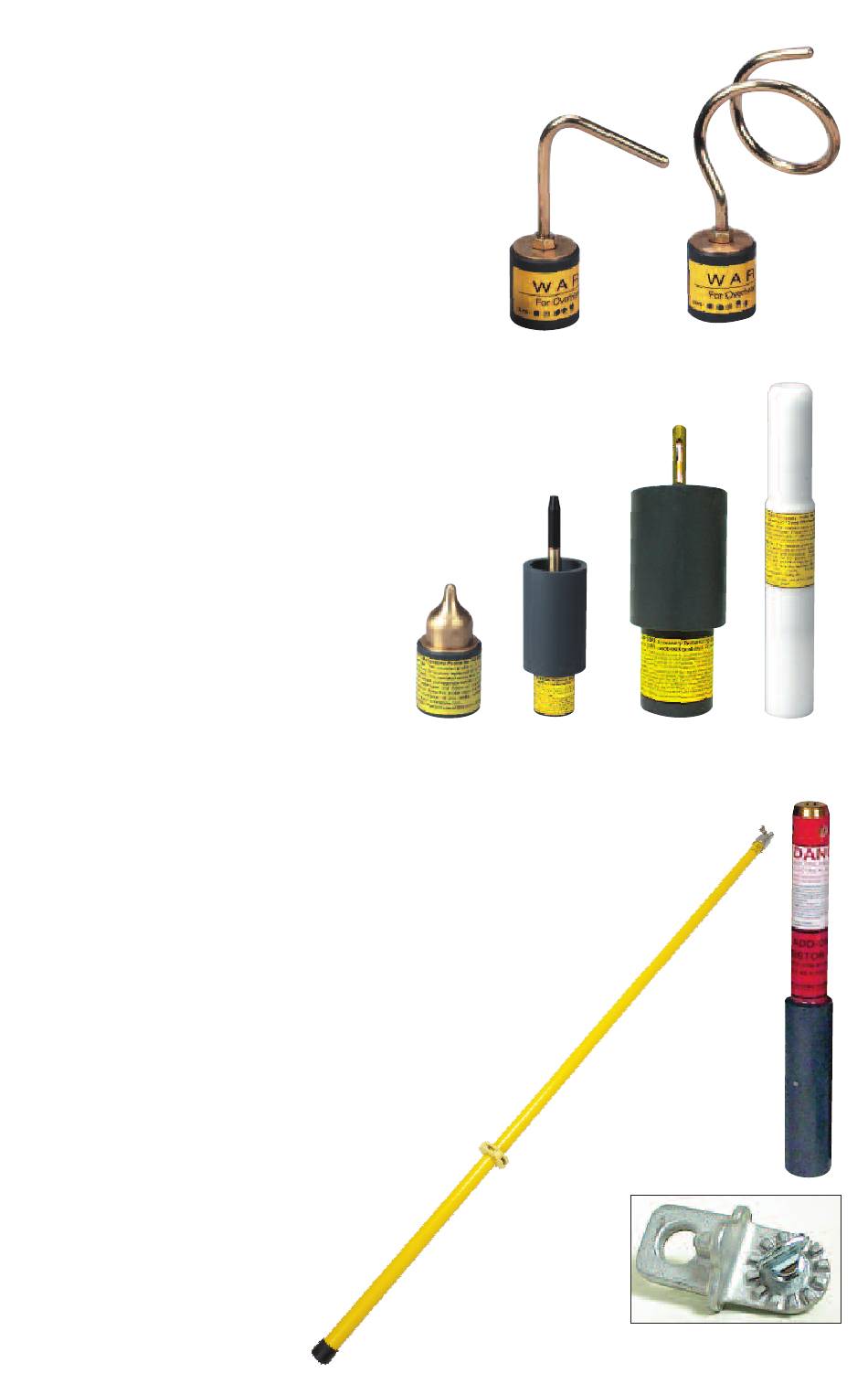

OVERHEAD PROBES
• 025-OLPS-5 brass hook probe
• 025-OLPS-6 brass pigtail probe
UNDERGROUND
DEAD FRONT
BUSHING PROBES
• ASP-15/25 for use in 15kV and 25kV
loadbreak bushings
• ASP-35U for use in 35kV
loadbreak bushings
UNDERGROUND
ELBOW PROBE
EA-15/25 for insertion in loadbreak elbows
NOTE: The elbow must be firmly
supported when using this probe
INSULATED
UNDERGROUND
PROBE
GCP-1 for general underground use
on grounded terminals, exposed high
voltage terminals or elbow test points.

ADD-ON RESISTOR STICK

R-80 Resistor Sticks are used to take readings above 40kV . Always
completely remove the voltmeter from the live circuit before adding
or removing add-on resistor sticks. Always use the add-on
resistor sticks in pairs, one on each voltmeter stick, then
attach the appropriate overhead or underground probe
to be used. When a reading is displayed, multiply that
reading by two (for example, if the display reads 30kV
with add-on resistor sticks installed, multiply
30 times 2 = 60kV). Do not exceed 80kV
with the R-80 resistor sticks attached.

HOT STICK

A range of hot sticks are available
in lengths starting at 4'. Contact
HD Electric for more details.

HOT STICK ADAPTER

HSA-2500 shotgun
hot stick adapter
