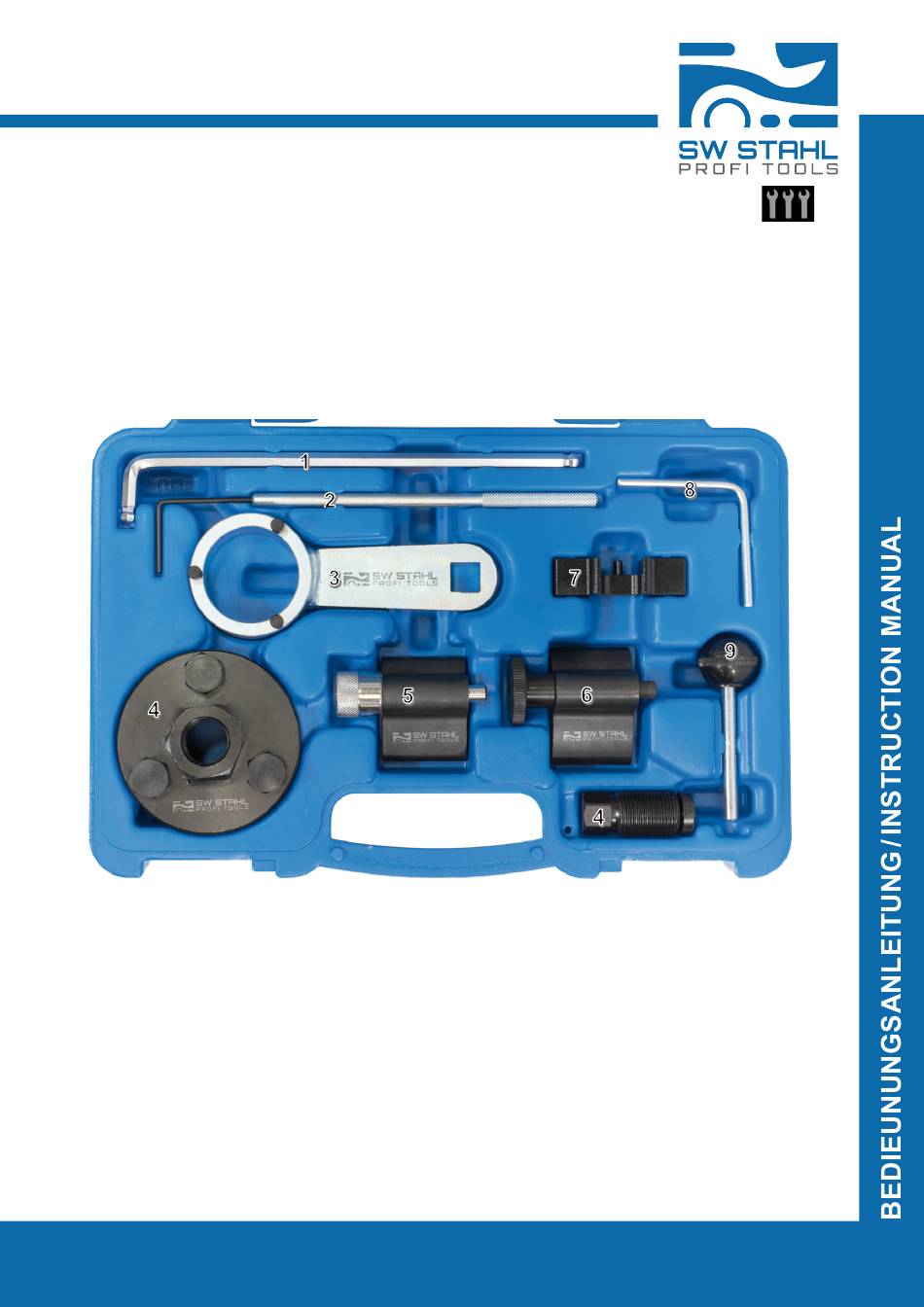

26131L
Motor Einstellwerkzeugsatz
Beinhaltet wichtige Werkzeuge z.B. für folgende Arbeiten an VAG 1.6l / 2.0l TDI
Common-Rail Diesel Motoren.
- Zum Arretieren der Nocken- und Kurbelwelle
- Zur De- und Montage der Nockenwellenräder
- Zum Fixieren der Ausgleichswellen
- Zum Wechseln des Zahnriemens oder Motorreparaturen
Geeignet für:
- VW Golf V, VI, Plus, EOS, Polo V, Jetta V, VI, Scirocco III, Beetle II, Caddy II, Passat
B6, B7, CC, Touran II, Tiguan, Sharan II, T5, Amarok
- Audi A1, A3 (8P), A4 (B8), A5, A6, (C6, C7), TT (8J), Q3, Q5
- Skoda Fabia II, Roomster, Praktik, Octavia II, Superb II, Yeti
- Seat Ibiza (6J), Leon III, Exeo, Altea, Alhambra II
Mit Motorcode: CAYB, CAYC, CBAB, CBBB, CBAA, CFFB, CAGA, CAHA, CAGB,
CAHB, CAGC, FCA, CAAA, CAAB, CAAC, CCHA, CAVA, CBAB,
CBDA, CBDD, CBAC, CBDA, CBDC
SW-Stahl GmbH
An der Hasenjagd 3
D-42897 Remscheid
Tel. +49 (0) 2191 / 46438-0
Fax +49 (0) 2191 / 46438-40
E-Mail: info@swstahl.de
www.swstahl.de
Advertisement
Table of Contents
Related Manuals for SW Stahl PROFI Tools 26131L
Summary of Contents for SW Stahl PROFI Tools 26131L
- Page 1 26131L Motor Einstellwerkzeugsatz Beinhaltet wichtige Werkzeuge z.B. für folgende Arbeiten an VAG 1.6l / 2.0l TDI Common-Rail Diesel Motoren. - Zum Arretieren der Nocken- und Kurbelwelle - Zur De- und Montage der Nockenwellenräder - Zum Fixieren der Ausgleichswellen - Zum Wechseln des Zahnriemens oder Motorreparaturen Geeignet für:...
- Page 2 26131L Verwendbar wie: 1 Spannrollenschlüssel 6 mm Innensechskant OE-Nummer T10264 2 Spannrollenschlüssel Ø 2,5 mm OE-Nummer T10265 3 Gegenhalter Nockenwellenrad OE-Nummer T10051 4 Abzieher Nockenwellenrad OE-Nummer T10052 5 Arretierung Kurbelwelle OE-Nummer T10050 6 Arretierung Kurbelwellen (ovalem Zahnrad) OE-Nummer T10100 7 Arretierung Ausgleichswellen OE-Nummer T10255...
- Page 3 26131L Bei den Werkzeuge 5 und 6 handelt es sich um Arretierwerkzeug für die Kurbelwelle. Diese funktionieren nach dem gleichen Prinzip, sind aber von der Bauart unterschiedlich. Beachten Sie die Herstellerangaben bei der Auswahl des Werkzeugs. Hinweis: Motoren, bei denen das Werkzeug 5 (T10050) erforderlich ist, fluchtet die Einstellmarkierung mit einem Zahn.
- Page 4 26131L Engine adjustment tool set For VAG 1.6l / 2.0l TDI Common-Rail Diesel Engines - Locking and positioning the crankshaft - Locking and aligning the camshaft wheels - Locking the balance shaft - Adjustment of the engine timing at motor repairs Suitable for (e.g.):...
- Page 5 26131L 1 Tensioner Pulley Adjustment tool (2.4mm Hex key) to be used as OEM T10264 2 Tensioner Pulley Locking tool to be used as OEM T10265 3 Sprocket Holding Tool to be used as OEM T10051 4 Cam Sprocket Hub Puller to be used as OEM T10052...
- Page 6 26131L Note: A crankshaft pulley requiring the T10050 has its timing mark aligned with a tooth where as a pulley requiring the T10100, the timing mark is between the teeth. Tool 1 allows the user to adjust the camshaft drive belt tensioner pulley.
