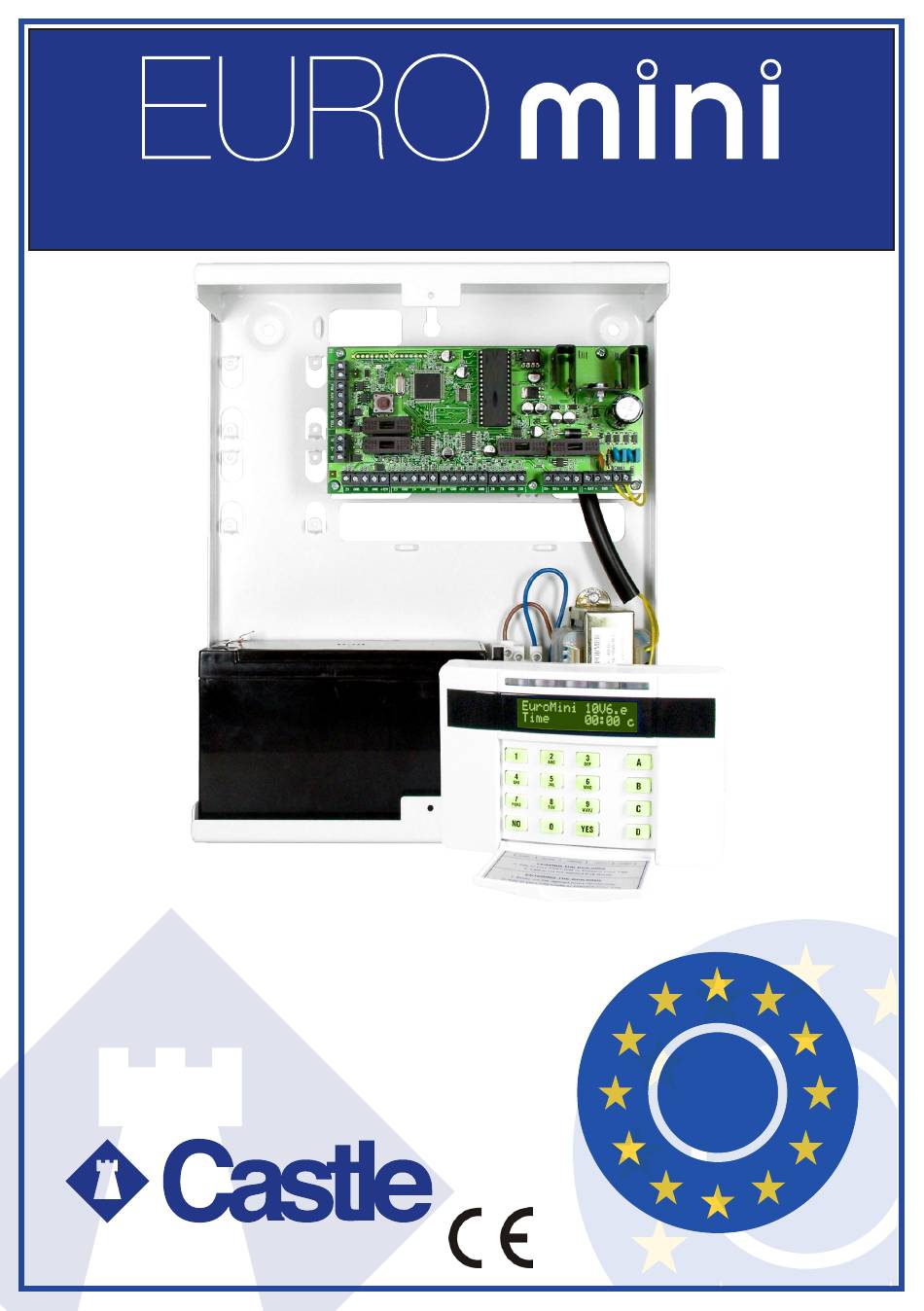

- Page 1 Pr og r a mmi n g Ma n u a l EN50131-1 RINS1210-6 Grade 2 Compliance...
- Page 2 uick Find Guide Main Menu Item Description Page Software Control panel version number Revision Wiring Choice Double Pole, DEOL 4K7,2K2 or 4K7, 4K7. Change Inputs Inputs types, part sets, attributes and input names Assign Keypads/ Keypad and reader addresses and keypad names Readers System Displays Sign on message and ‘Display when set’...
-
Page 3: Table Of Contents
Change Outputs continued... Intelligent Set Site Options Site Options continued... Review Logs Engineer Tests Engineer Tests Continued... Diagnostics Clean Start Appendix A Input Types Input Attributes Appendix B Output Types Appendix C Defaults Appendix D Fault Codes Castle Care-Tech Page:3... -
Page 4: Introduction
The EURO mini offers the reassurance and peace of mind for protecting your customer’s property whilst meeting all the relevant standards. Programming of the EURO mini is the same as EURO MERiDIAN panels so this is the perfect alternative for your smaller installations. -
Page 5: Descriptions
This chapter outlines the features and functionality the EURO mini can offer: Level Set System: The EURO mini can operate up to 4 part sets: A, B, C, and D. An example of how these can be programmed are as follows: Part Set A: (All) All house is set. -
Page 6: The Contemporary Keypad
Indicates a tamper has occurred Fault Indicates a fault has occurred Unset Illuminates briefly after the system has been unset NOTE: If a EUR-068 has been purchased, the keypad has the prox enabled which allows arming/disarming via card/tag. Page:6 Castle Care-Tech... -
Page 7: The Contemporary Keypad
Enter ‘2000’ to reset all keypad functions to default 0 = Backlight off (until key pressed/entry route active) Backlight Force 1 = Backlight on all time How many seconds keys 1 and 7 must be held for a PA to PA/Fire Timer activate. Castle Care-Tech Page:7... -
Page 8: Powering Up
‘KEYPAD CODE’ is displayed. Enter ‘2000’. This will take you to the keypad screens described above. Any keypad that is new to the EURO mini must first be initialised with this function, and then enabled in the Engineering menu on the master keypad (address 00). -
Page 9: Engineering Menu
Time 10:01 c SET / UNSET SYSTEM? SYSTEM? SYSTEM? unset the EURO mini without a user code. Press the NO key. ‘SOFTWARE REVISION?’ will be SET / UNSET displayed, and the panel is now in SOFTWARE SOFTWARE... -
Page 10: Software Revision
WIRING CHOICE? EuroMini EuroMini Selects the EURO mini to perform as a double pole system, or a double end of line EuroMini system (either 4K7 alarm, 2K2 tamper, or 4K7 alarm, 4K7 tamper). All wiring diagrams can be found in the installation manual. -
Page 11: Change Inputs
Input Name? Input Name? Input Name? To create an Input name, press the Input Name? Input Name? Input Name? Input Name? ‘YES’ key and use the letters on the buttons to create a name. Press the ‘YES’ key. Castle Care-Tech Page:11... -
Page 12: Assign Keypads/Readers
Assign Keypads/Readers Keypads can be allocated to different part sets and up to four keypads can be added to the EURO mini. For Example, if 2 keypads are installed on the system (one upstairs, one down- stairs), the location of the keypad downstairs will be A (for a full set), and the location of the keypad upstairs will be B (for a part set). -
Page 13: System Displays
A Entry Time A Entry Time each level set. Then enter the re-arm [030] [030] number and the fire siren time. To move through each option, press the ‘YES’ key. Castle Care-Tech Page:13... -
Page 14: Set Date And Time
Timed: The EURO mini will set when the exit time expires (programmed in ‘Change Timers’) Final Door: The EURO mini will set when the final exit door has been opened and A Exit Mode Timed Year (00-99) A Exit Mode closed. -
Page 15: Change Codes
‘YES’ key. TO CHOOSE THEN User Name? User Name? User Name? User Name? User Name? User Name? To create an user name, enter the User Name? text using the letters on the keypad. Press the ‘YES’ key. Castle Care-Tech Page:15... -
Page 16: Change Codes Continued
E/E Keypads Only entry/exit sounds will be heard from E/E Keypads Only E/E Keypads Only the keypad only. Use the ‘D’ key to toggle the option. Press the ‘YES’ TO CHOOSE THEN key. TO CHOOSE THEN TO CHOOSE THEN Page:16 Castle Care-Tech... -
Page 17: Alarm Responses
Fire Starts At Full Alarm Full Alarm There are a total of 7 programmable outputs on the EURO mini. 4 outputs are used in conjunction with 4 inputs (Inputs 7 to 10) and are labelled ‘XPGM O/P’ in TO CHOOSE THEN TO CHOOSE THEN the keypad. -
Page 18: Change Outputs Continued
When intelligent set is enabled, then level set B will start to set (if the user code is enabled in level set B). Then if a Final Exit input is activated which is programmed in level set A during the exit time, then the EURO mini will automatically ‘quick set’ in level set A. -
Page 19: Site Options Continued
Use the ‘B’ and ‘D’ keys to scroll back and forth through the log. If 26/10 15:41:52 26/10 15:41:52 Final Set Final Set more information is required about an event, press the ‘C’ key. When finished, press the ‘NO’ Key to exit. THEN THEN Castle Care-Tech Page:19... -
Page 20: Engineer Tests
Once all inputs have been walk Walk Test Walk Test Walk Test Complete! Complete! Walk Test Walk Test Complete! tested successfully ‘Walk Test Complete! Complete! Complete’ will be displayed. Press the ‘YES’ key. Page:20 Castle Care-Tech... -
Page 21: Engineer Tests Continued
Test in Progress Logs have been Test in Progress Logs have been Test in Progress Logs have been Test in Progress Logs have been cleared! cleared! cleared! output type will be activated. Press cleared! the ‘NO’ key to de-activate. Castle Care-Tech Page:21... -
Page 22: Diagnostics
TO CHOOSE THEN TO EXIT TO CHOOSE THEN TO EXIT TO CHOOSE THEN TO EXIT Calibration? Calibration? Calibration? Calibration? Calibration: Do not alter this unless Calibration? Calibration? Calibration? instructed to by customer support. Press the ‘NO’ key. Page:22 Castle Care-Tech... -
Page 23: Clean Start
Menu Clean Start Clean Start To reset the EURO mini to defaults (see page 26) a ‘Clean Start’ may be performed. CLEAN START? CLEAN START? CLEAN START? CLEAN START? CLEAN START? CLEAN START? Use the ‘B’ and ‘NO’ keys to scroll to ‘CLEAN START’. -
Page 24: Input Types
Enables the input to be manually omitted during the setting procedure Normally Open Enables the input to work with normally open contact devices Double Knock An alarm will only be generated if this input is triggered twice within a pre-set period (programmed in Change Timers), Page:24 Castle Care-Tech... -
Page 25: Output Types
No battery Low Volts Low voltage on auxiliaries Global Fault 1 Battery, keypad, mains and fuse faults when set Global Fault 2 Battery, keypad, mains and fuse faults any time Engineer Access When the engineering menu is accessed Castle Care-Tech Page:25... -
Page 26: Defaults
First Alarm Part Sets A, B, C and D: Full Alarm CHANGE OUTPUTS? Bell: Siren Any, STB: Strobe Any, PGM: PIR Latch 1 XPGM 1,2,3,4: Unused INTELLIGENT SET? SITE OPTIONS? Strobe At Set: No. 2 Key Hold Up: None. Simple Set: No. Page:26 Castle Care-Tech... -
Page 27: Fault Codes
Case Tamper 100 Case tamper open (the terminals TAMPER or the tamper spring) 485 Fail 2xx Keypad failure. xx = the address of the keypad that has failed Mains Absent No mains supply detected to the control panel. Castle Care-Tech Page:27... - Page 28 Contact Details Castle Care-Tech Ltd First Floor 6 Bracknell Beeches Old Bracknell Lane West Bracknell Berkshire RG12 7BW Customer Support: +44(0)845 6434 999 (local rate) Or telephone: +44(0)1709 535225 Opening Hours: 7.00am - 7.30pm Monday to Friday E-mail: support@castle-caretech.com Website:...
