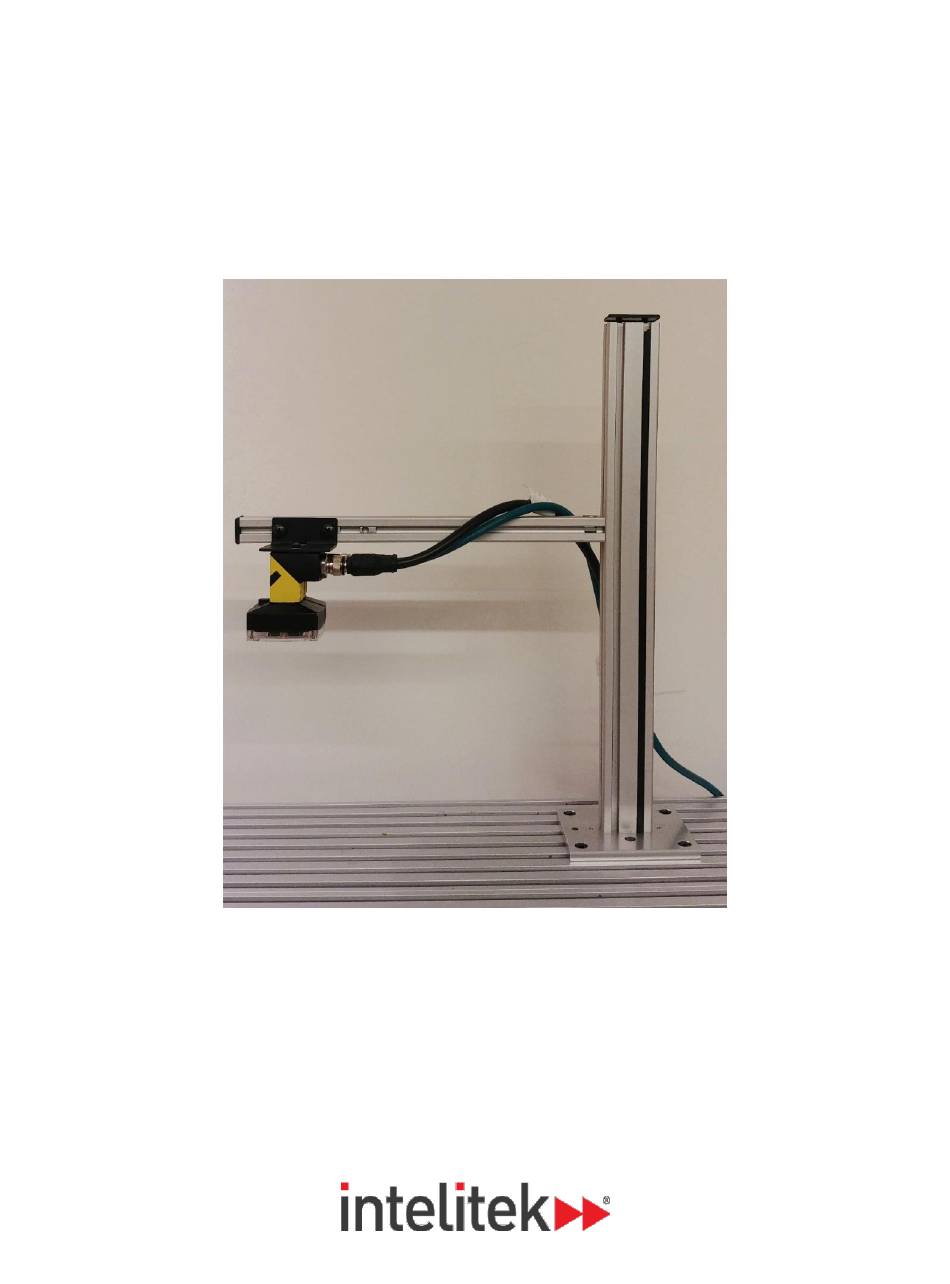

- Page 1 ViewFlex Camera ASSEMBLY INSTRUCTIONS Catalog # 101971 Rev. B April 2019...
- Page 2 Every effort has been made to make this guide complete and as accurate as possible. However, no warranty of suitability, purpose or fitness is made or implied. Intelitek Inc. is not liable or responsible to any person or entity for loss or damage in connection with or stemming from the use of the software, equipment and/or the information contained in this publication.
- Page 3 This manual only details the assembly and wiring instructions for your Cognex 2000 Vision Sensor. For more information about the Cognex 2000 and its use, see the Cognex 2000 user manual. Visit https://www.cognex.com/support for the most up-to-date software. ViewFlex Ca mera Assembl y Ins tructions © 2019 Intelitek - Al l Rights Reserved...
- Page 4 1. Assembling the Camera Stand The camera stand for the Cognex (#00-1430 -0000) is used to hold the Cognex Vision Sensor (QC camera) in position in order to carry out ViewFlex operations. This section describes how to attach the camera to the camera stand.
- Page 5 M5 flat head Allen screws and T-slot nuts, and to a Formica table with pan head Phillips screws. ViewFlex Ca mera Assembl y Ins tructions © 2019 Intelitek - Al l Rights Reserved...
- Page 6 3. Connect the adapter to the power supply. 4. Connect the power supply to a wall adapter. 5. Ensure that the vision sensor’s green power LED is lit. ViewFlex Ca mera Assembl y Ins tructions © 2019 Intelitek - Al l Rights Reserved...
- Page 7 Black Green OUTPUT COMMON Orange Trigger Blue HS OUT 0 Grey HS OUT 1 If hardware handshaking is required, an I/O module must be used. ViewFlex Ca mera Assembl y Ins tructions © 2019 Intelitek - Al l Rights Reserved...
