- Page 1 ViewFlex Camera ASSEMBLY INSTRUCTIONS Catalog # 101915 Rev. C November 2017...
- Page 2 Every effort has been made to make this guide complete and as accurate as possible. However, no warranty of suitability, purpose or fitness is made or implied. Intelitek Inc. is not liable or responsible to any person or entity for loss or damage in connection with or stemming from the use of the software, equipment and/or the information contained in this publication.

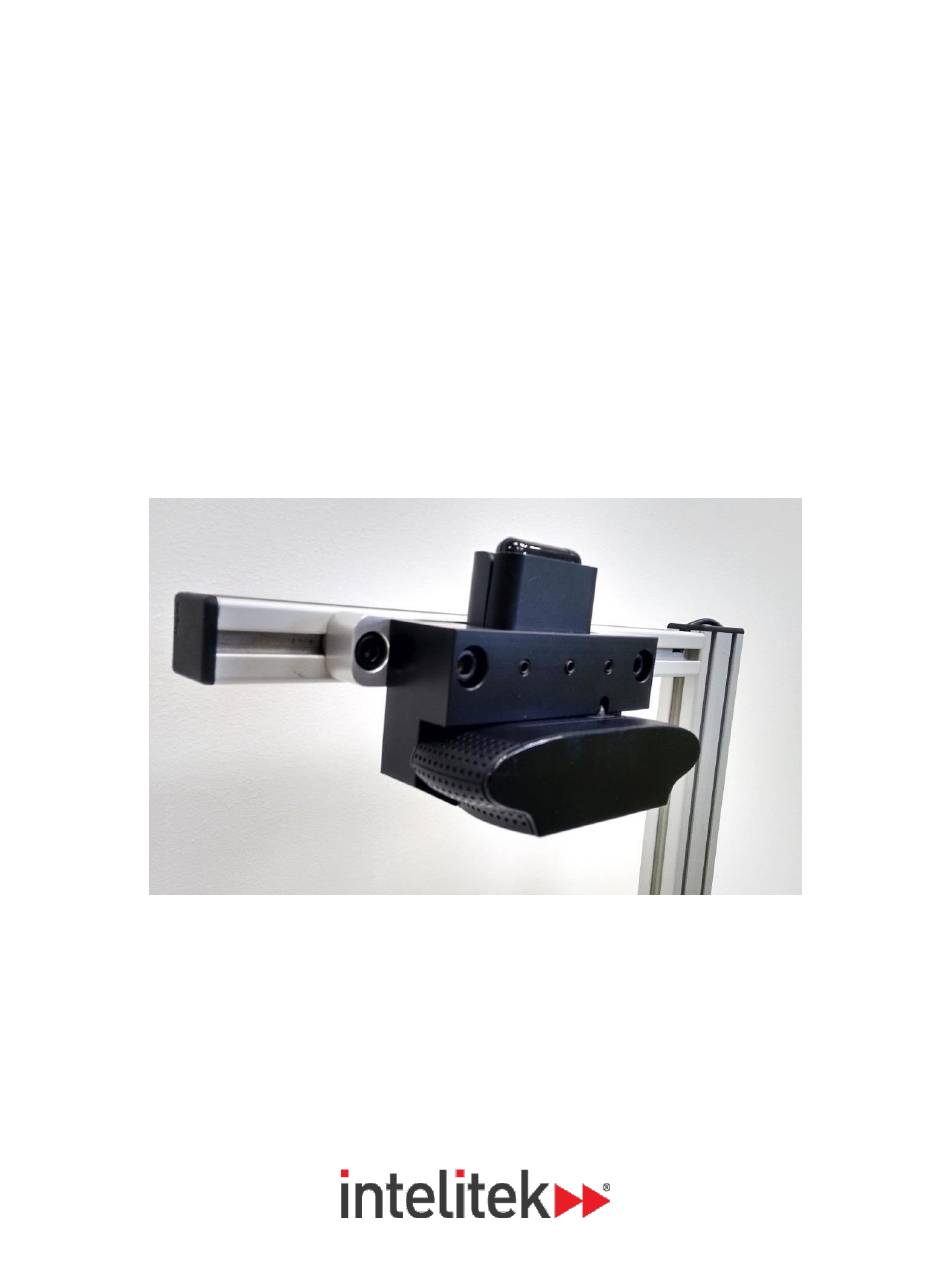

- Page 3 The camera stand (#00-1422 -0000/ #00-1423-0000 / #00-1425-0000 / #00-1426-0000) is used to hold the Webcam in position in order to carry out ViewFlex operations. The camera is attached to the camera stand by means of an aluminum support (#115131) and a plastic camera holder (#113424). This document describes how to attach the camera to the camera stand as shown here.
- Page 4 2. Place the camera holder over the camera. Keep the camera firmly in place while sandwiching it with the holder and the support. Ensure that the wire is fitted through the small opening of the camera holder. ViewFlex Camera Assembly Instructions © 2017 Intelitek - All Rights Reserved...
- Page 5 3. Fasten the camera holder to the support using two M5 Allen screws. 4. On the support side of the assembly, screw in a 1/4 inch Allen screw. ViewFlex Camera Assembly Instructions © 2017 Intelitek - All Rights Reserved...
- Page 6 6. Tighten the three small Allen screws of the camera holder. These screws further stabilize the camera, preventing it from wobbling. Note: You must ensure that the camera is not free to move once attached. ViewFlex Camera Assembly Instructions © 2017 Intelitek - All Rights Reserved...
- Page 7 8. Secure the remainder of the wire to the table using cable clamps and nylon cable ties. The clamps should be secured to a slotted table with M5 flat head Allen screws and T-slot nuts, and to a Formica table with pan head Phillips screws. ViewFlex Camera Assembly Instructions © 2017 Intelitek - All Rights Reserved...
