- Page 1 JAVAC PCS-2 and PCS-2A(Automotive) CS Series CD Series (110/240V/60/50Hz) Quality Endorsed JL Series Company Operating Instructions JLT Series Lic. QEC24519 SAI Gobal * READ THIS MANUAL BEFORE OPERATING THE MACHINE * PORTABLE CHARGE STATION COMMERCIAL & LABORATORY VACUUM PUMPS...

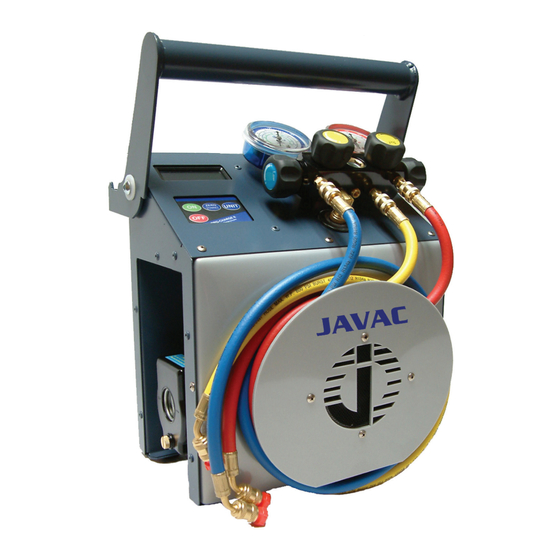

- Page 2 Thank you for purchasing a JAVAC PCS-2 Portable Charging Station! The PCS-2 combines the benefits of a 2 stage vacuum pump, multi gas refrigerant manifold set and an 80kg refrigeration electronic scale in a lightweight, durable case. Safety First! When found on the machine, this international symbol is intended to alert the user to the presence of important operating, safety and maintenance (servicing) instructions in this Manual.
-
Page 3: Table Of Contents
CONTENTS JAVAC PCS-2 and PCS-2A (Automotive) Table of Contents: Page No. SAFETY PRECAUTIONS..........1 SPECIFICATIONS, FEATURES AND WARRANTY..2 SET UP AND OPERATION..........4 STORAGE AND MAINTENANCE ........7 TROUBLESHOOTING ...........8 SERVICE ...............8 Service Return ..........Refer to Back Cover... -
Page 4: Safety Precautions
(MSDS) and the Temperature - Vapour Pressure information. PERFORM LEAK DETECTION in accordance with recommended practice only. For best results use only a refrigerant detector such as the JAVAC D-TEK or TEK-Mate. NEVER USE OXYGEN for this process as it can become an explosive mixture in the presence of oil and pressure. -
Page 5: Specifications, Features And Warranty
Automotive R134a couplers (PCS-2A model only) * R410a Adaptors are only to be used on PCS-2, not on any other manifold or hose fitting * R410a Adaptors are only to be used on PCS-2, not on any other manifold or hose fitting... - Page 6 JAVAC shall have no liability in excess of the price paid to JAVAC for the machine plus return transportation charges prepaid. JAVAC shall have no liability for any incidental or consequential damages. All such liabilities are EXCLUDED.
-
Page 7: Setup And Operation
3.0 SETUP AND OPERATION Evacuation: Close all valves on PCS-2 manifold assembly. Connect suction and discharge hose (if discharge connection exists) to the refrigeration system. Ensure fittings are firm and that there is no pressure in the system Connect PCS-2 to mains power. - Page 8 CHARGING: Lower the scale platform by depressing the locking button located near the pivot point of the handle, right side of unit. Pull handle forward while holding the scale platform. Lower platform by hand so it sits horizontal. See pictures below...
- Page 9 CHARGING (cont) If using a large bottle the scale platform can be removed for convenience. First lower the scale platform to the horizontal position, pull the scale platform away from the unit, now raise the platform to the vertical position and pull away from the unit. Picture below shows platform removed from unit.
-
Page 10: Storage And Maintenance
MAINTENANCE Your PCS-2 will provide many years of reliable service if it is properly maintained. The actual maintenance requirements are minimal but important. Keep the unit clean by wiping it down with a damp cloth to remove dirt, oils, etc. -
Page 11: Troubleshooting
Or the Organisation where you purchased your PCS-2 The vacuum pump oil used for the PCS-2 is specific and has been certified as safe and reliable to use. Do not use generic vacuum pump oil as its viscosity index is too high.
