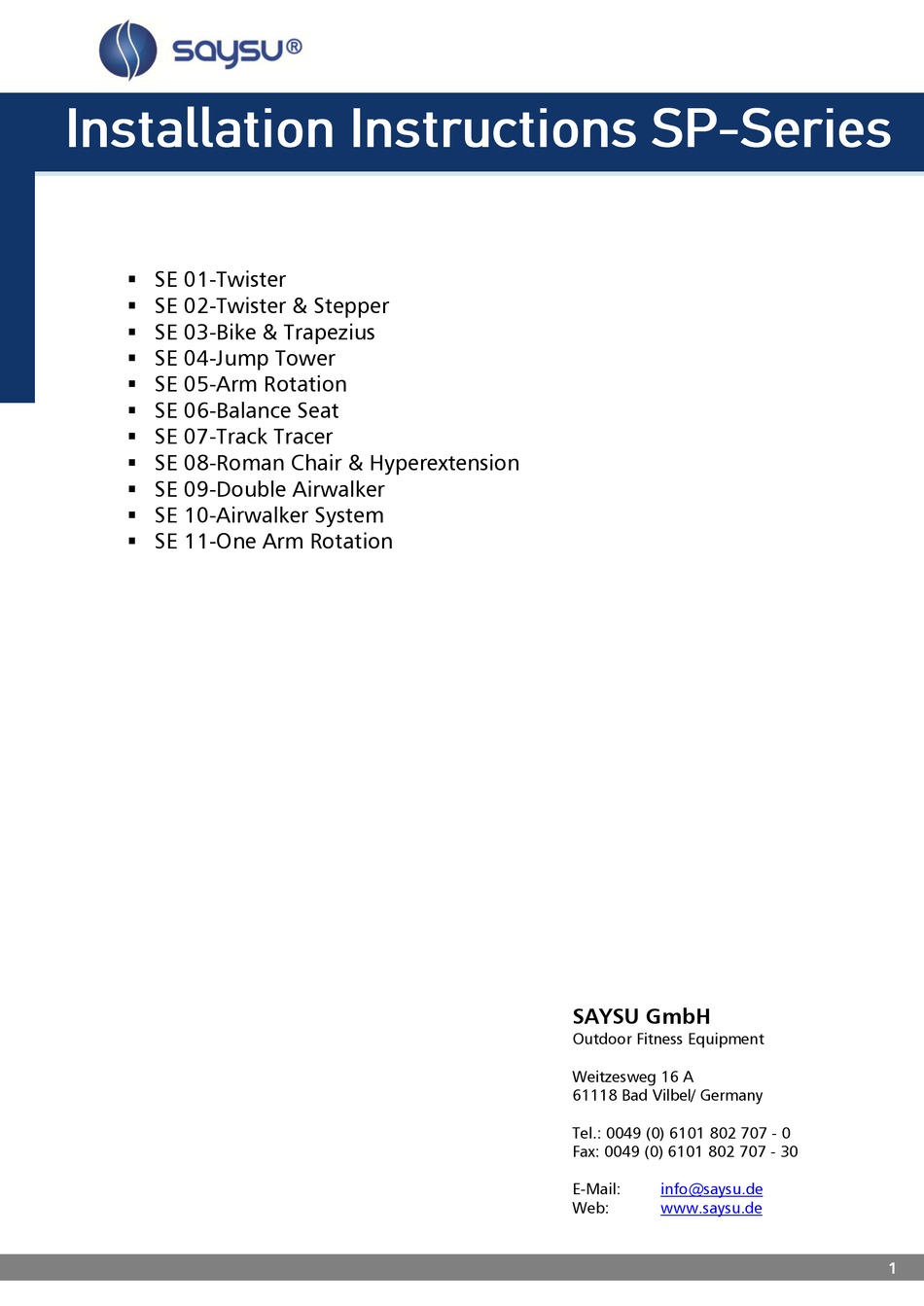

SAYSU SP Series Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
 SE 01-Twister
 SE 02-Twister & Stepper
 SE 03-Bike & Trapezius
 SE 04-Jump Tower
 SE 05-Arm Rotation
 SE 06-Balance Seat
 SE 07-Track Tracer
 SE 08-Roman Chair & Hyperextension
 SE 09-Double Airwalker
 SE 10-Airwalker System
 SE 11-One Arm Rotation
SAYSU GmbH
Outdoor Fitness Equipment
Weitzesweg 16 A
61118 Bad Vilbel/ Germany
Tel.: 0049 (0) 6101 802 707 - 0
Fax: 0049 (0) 6101 802 707 - 30
E-Mail:
info@saysu.de
Web:
www.saysu.de
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP Series and is the answer not in the manual?

Questions and answers

Related Manuals for SAYSU SP Series

Summary of Contents for SAYSU SP Series

  • Page 1  SE 07-Track Tracer  SE 08-Roman Chair & Hyperextension  SE 09-Double Airwalker  SE 10-Airwalker System  SE 11-One Arm Rotation SAYSU GmbH Outdoor Fitness Equipment Weitzesweg 16 A 61118 Bad Vilbel/ Germany Tel.: 0049 (0) 6101 802 707 - 0...
  • Page 2 Underground Before the installation you have to decide on which underground the equipment will be installed. Possible undergrounds are (more precisely defined in DIN 1176-1.2008; table F.1):  Concrete/stone  Bitumen  Top soil  lawn  shock absorbing underground according to DIN EN 1177 ...

  • Page 3: Under-Ground Installation

    Under-ground installation For underground installation the foundation is created 60mm below ground level and the anchoring will be filled up to the ground level (see mark on main column) with the filling material (see figure (a)). Then only the main column of the equipment rises out of the ground. The top ends of the screws have to be carried out in compliance with DIN EN 1176-1:2008 (D) 4.2.5.
  • Page 4 Foundation system 1  SE 01-Twister  SE 02-Twister & Stepper  SE 03-Bike & Trapezius  SE 05-Arm Rotation  SE 06-Balance Seat  SE 08-Roman Chair & Hyperextension  SE 09-Double Airwalker  SE 11-One Arm Rotation 1. Assemble the foundation anchor according to figure (i) on page 11. 2.
  • Page 5 Foundation system 2  SE 04-Jump Tower 1. Assemble the foundation anchor according to figure (i) on page 11. 2. Dig a hole for the foundation as shown in figure (c), with the minimum dimensions of (l) 800mm, (w) 800mm, (h) 1000mm. (When Under-ground installation: 1060 mm deep, When Under-ground installation with loose filling material: 1200 mm deep.) 3.
  • Page 6 Foundation system 3  SE 07-Track Tracer  SE 10-Airwalker For these units, a twin anchoring system is used. 1. Assemble the foundation anchors according to figure (i) on page 11. 2. Dig a hole for the foundation with the following minimum dimensions (as shown in figure (e)): For SE 07: (l) 2500mm, (w) 700mm, (h) 1000mm or (l) 2x700mm, (w) 700mm, (h) 1000mm For SE 10: (l) 1700mm, (w) 700mm, (h) 1000mm (When Under-ground installation: 1060 mm deep, When Under-ground installation with loose...
  • Page 7 Figure (e) foundations seen from the long side Distance of the foundation anchors for Distance of the foundation anchors for SE 07 Track SE 10 Airwalker. Tracer. A positioning device for the distance A positioning device for the distance is included in is included in the delivery.
  • Page 8 Positioning of the foundation anchor The foundation anchor and distance piece included in the delivery should be positioned in the concrete as shown in figure (f). The equipment fixing bolts have to be above the concrete. Avoid concrete remaining on the mounting plates or the equipment fixing bolts.

  • Page 9: Mounting Of Equipment

    Mounting of equipment Before mounting the totally assembled delivered equipment to the foundation, it has to be assured the concrete has dried completely. The drying time is changing depending on the weather conditions. The drying time of concrete at normal weather conditions is approximately 15 days. After the concrete has dried, the respective equipment can be mounted on the foundation anchor by screwing the included nuts onto the equipment fixing bolts as shown in figure (g).

  • Page 10: Ground Level

    Beveling of the foundation with loose filling material To avoid edges of the foundation looking out of the covering, it is required to bevel the foundation along the mounting plate on all sides as shown in figure (a) (see DIN EN 1176-1). applicable only when loose filling material is used! Figure (h) Beveling of the foundation in case of above- ground installation with loose material...
  • Page 11 Assembling of the foundation anchor Screw the six threaded rods to both plates, with a nut bolt from each side. Make sure that you allow 6mm on the top plate for the hub flange of the fitness units. Figure (i) Foundation anchor Stand August 2012...
