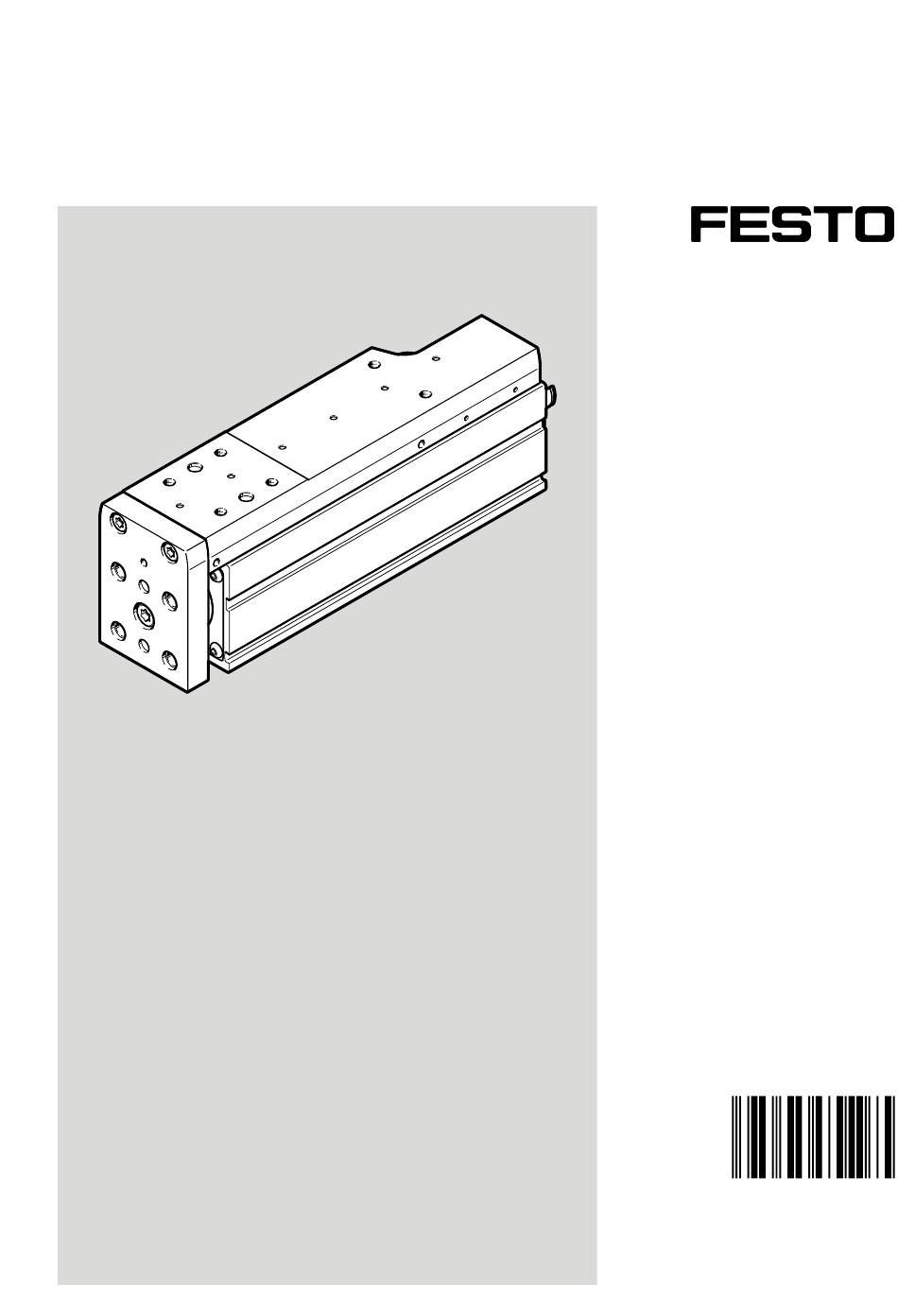

- Page 1 EGSC-BS-KF Mini slide Instructions | Operat- 8099637 8099637 2018-11c [8099639]...
- Page 2 Translation of the original instructions Festo — EGSC-BS-KF — 2018-11c...
-
Page 3: Table Of Contents
Additional information....................4 Service..........................4 Product overview......................5 Function........................5 Design........................... 5 Transport........................6 Assembly........................7 Preparation........................7 Mounting........................8 Attachment........................9 Mounting accessories....................10 Commissioning......................12 Service..........................13 Disassembly........................ 14 Disposal........................14 Fault clearance......................15 Technical data......................16 Festo — EGSC-BS-KF — 2018-11c... -
Page 4: About This Document
About this document About this document All available documents for the product è www.festo.com/pk. The mini slide EGSC-BS-KF is designated as product in these operating instructions. Read the operat- ing instructions carefully before starting all work on the product. Safety Safety instructions –... -
Page 5: Product Overview
(retracted end position). Design 1 Drive hub 4 Venting hole with filter element 2 Interface for motor mounting kit 5 Slide with ball guide 3 Guide rail 6 Thread/centring holes for attachment com- ponents Fig. 2 Festo — EGSC-BS-KF — 2018-11c... -
Page 6: Transport
Fig. 3 Transport NOTICE! Unexpected movement of components. The mini slide is unbraked. Without input torque, the slide is freely movable. • Secure slide during transport. • Take product weight into account è 13 Technical data. Festo — EGSC-BS-KF — 2018-11c... -
Page 7: Assembly
Exception: if immediate modification is required based on these operating instructions. – Select the motor and motor mounting kit from the Festo catalogue è www.festo.com/catalogue When using other motors: observe the critical limits for forces, torques and speeds è 13 Technical data. -
Page 8: Mounting
For example, with profile mounting EAHF-L2 1) Accessoriesè www.festo.com/catalogue Tab. 1 Mounting alternatives 1. Select mounting components according to the hole pattern è www.festo.com/catalogue 2. Mount the mounting components outside the positioning range to avoid collisions. 3. Mount the mini slide. 4. Tighten screws evenly. -
Page 9: Attachment
Set down rated load in such a way that the tilt moment resulting from the force (parallel to the axis of movement) and lever arm are kept as small as possible. – Avoid collisions of the mounting part and payload with other mounting parts è Fig.6. Fig. 6 Festo — EGSC-BS-KF — 2018-11c... -
Page 10: Mounting Accessories
This protects against excess travel beyond the end position, if the proximity sensor cable is broken. If proximity sensors are used as reference switches: – Use proximity sensors that correspond to the input of the controller being used. Festo — EGSC-BS-KF — 2018-11c... - Page 11 Fig. 8 Prevention of contamination Connect sealing air. To do so, remove the filter element 4 from the housing and connect the com- pressed air. Use the recommended fittings from the Festo accessories è www.festo.com/catalogue. 4 Filter element Fig. 9 Festo — EGSC-BS-KF — 2018-11c...
-
Page 12: Commissioning
Moving mass – Mounting position • When designing the spindle axis, use the Festo engineering software "PositioningDrives" è www.festo.com NOTICE! Block-shaped acceleration profiles (without jerk limitation) cause high peaks in the drive force that can lead to an overloading of the drive. Due to overshooting effects, positions outside of the permiss- ible range may also occur. -
Page 13: Service
Regularly check the reversing backlash of the slide for spindle nut wear. The wear on the ball screw will lead to increased noise in the long term and eventually cause the ball screw drive to block or the spindle nut to break. The maximum permissible reversing backlash is 0.2 mm. Festo — EGSC-BS-KF — 2018-11c... -
Page 14: Disassembly
Observe transport information è 6 Transport. – Remove motor cables and mounting components. Disposal – Dispose of the packaging and slide at the end of the production service life according to the valid provisions for environmentally sound recycling. Festo — EGSC-BS-KF — 2018-11c... -
Page 15: Fault Clearance
The reversing backlash is too Wear Exchange the mini slide. large 9 Service. è The idling torque increases. Slide travels over end position. Proximity sensor does not Check proximity sensor, connec- switch. tions and controller. Tab. 6 Festo — EGSC-BS-KF — 2018-11c... -
Page 16: Technical Data
Max. perm. forces at the midpoint of the guide 1314 4937 Max. permissible torques at the midpoint of the guide [Nm] [Nm] è The "PositioningDrives" engineering software is available for sizing tasks www.festo.com/sp. 2) at a speed of 0.05 m/s. Tab. 7 Festo — EGSC-BS-KF — 2018-11c... - Page 17 Anodised aluminium Guide, screws, ball Steel bearing, spindle Coverings PA, NBR Weight Zero stroke length [kg] 0.176 0.331 0.608 1.555 Per 100 mm stroke [kg] 0.186 0.305 0.629 0.95 1) PWIS = paint-wetting impairment substances Tab. 8 Festo — EGSC-BS-KF — 2018-11c...
- Page 18 Copyright: Festo AG & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 Reproduction, distribution or sale of this document or communic- e-mail: ation of its contents to others without express authorization is service_international@festo.com...
