Remarks:
Technical parameters and pictures in this manual are for reference only and subject to change without notice.
The actual product may differ.
Before using our product please read this manual carefully and keep for future reference if required.
This manual should not be copied fully or partially in any kind or manner without written approval of HDi.

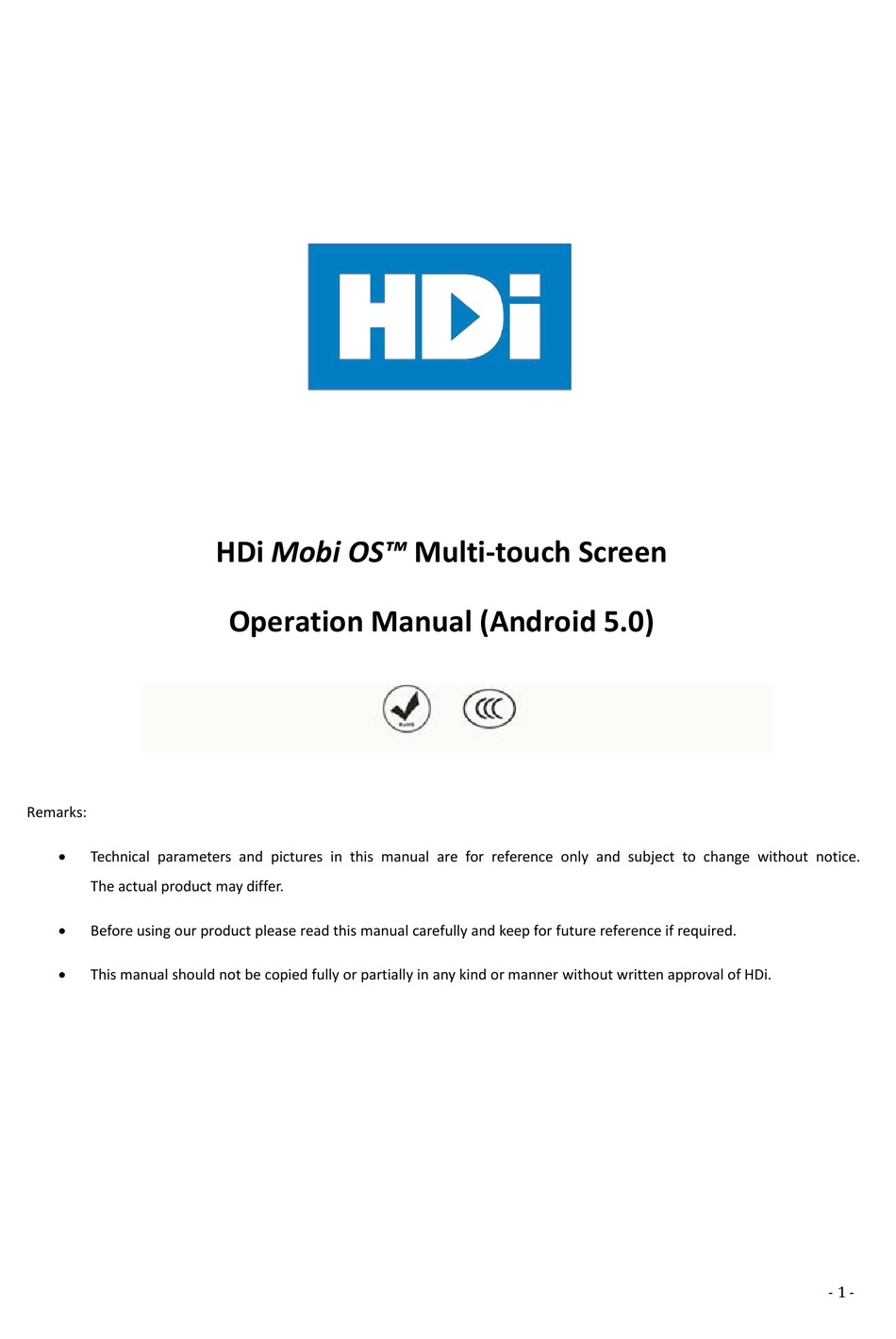

HDi Mobi OS™ Multi-touch Screen
Operation Manual (Android 5.0)
- 1 -
Advertisement
Table of Contents
Related Manuals for HDI Mobi OS Series
Summary of Contents for HDI Mobi OS Series
- Page 1 Before using our product please read this manual carefully and keep for future reference if required. This manual should not be copied fully or partially in any kind or manner without written approval of HDi. - 1 -...
-
Page 2: Introduction
HDi is dedicated to developing and improving the performance and reliability of our products. We have designed and manufactured this device with one objective in mind and that is to ensure that our customers’ needs and user experience are fulfilled. -
Page 3: Safety Considerations
Safety considerations WARNING Do not place containers with liquid on or near this product. Use only dry cloth to clean. Do not block any ventilation holes. Install this product according to manufacturer’s specifications A distance of at least 160mm must be kept from this product and other objects and/or walls. Do not install this product near heat sources. -
Page 4: Table Of Contents
Contents Introduction..............................- 2 - Safety considerations...........................- 3 - Main functions............................- 5 - Technical specification..........................- 6 - Front panel of interactive display ......................- 9 - Rear view of interactive display......................- 10 - RCU (Remote Control Unit)........................- 14 - Introduction of OSD........................... -
Page 5: Main Functions
The HDi multi-touch display is a combination of two advance technologies. The IR (Infrared) touch technology and high definition (HD) digital display technology (MTS) creating the HD Interactive Android Version Multi Touch Screen (MTS). This combination provides the user the ability to interact with an MTS screen using a finger or any solid object. -
Page 6: Technical Specification
Technical specification size 55’’ 65’’ OSD language English Up to 1920X1080(standard) Panel Resolution Up to 1920X1080 Up to 3840 X 2160 (4K/2K)(optional) Color System PAL / NTSC / SECAM Composite (in) 1.0 Vp-p±5%@75ohm Audio (in) 500mV rms Analog RGB (PC) Mode Up to 1920X1080@60Hz Component... - Page 7 Technical Specification (continued) size 75’’ 84’’ OSD language English Panel Resolution Up to 3840 X 2160 (4K/2K) Up to 3840 X 2160 (4K/2K) Color System PAL / NTSC / SECAM Composite (in) 1.0 Vp-p±5%@75ohm Audio (in) 500mV rms Analog RGB (PC) Mode Up to 1920X1080@60Hz Component...
- Page 8 Technical Specification (touch parameters) Working temperature 0°C～40°C Set up As per this Operations Manual Touch points Single/Two/Four/Six points available Writing mode Finger, writing pen or any non-transparent object Positioning technology IR technology Positioning accuracy <2mm Positioning resolution 4096*4096/16384*16384/32768*32768 Writing response time <8ms Cursor speed >120 dot/sec...
-
Page 9: Front Panel Of Interactive Display
Front panel of interactive display M-RCU receiver and button lamp A-POWER (Turn On/Off) P-Android USB B-Source (Source input) Q-PC USB C-Menu R-HDMI 3 D-Volume+ S-TOUCH USB E-Volume- F-Channel+ L&N - Speaker G-Channel-(Menu item+/-) H-PC (Built-in OPS power On/Off key (If no OPS, no functions) I-ES Turn (On/Off Energy-saving) J-Enter (enter above choice) K-Home (back to Android home screen) -
Page 10: Rear View Of Interactive Display
Rear view of interactive display Note: Reference only may differ from actual product Back I/O Ports T Number NAME FUNCTION PC USB For external PC USB port transfer to front PC USB port SPDIF Coaxial output RS232 serial communication transmission of data control SD CARD SD card slot, support max 32GB SD CARD Headphone output... - Page 11 Back I/O Ports O Number NAME FUNCTION WIFI WIFI antenna RJ45 Wired network port TOUCH USB Touch port HD multimedia signal input 1 HDMI 1 HDMI 2 HD multimedia signal input 2 VGA1 External computer video input AUDIO1 External computer audio input 1 Supports playing documents, pictures, audios, and videos USB3.0 directly under android...
- Page 12 Side/rear port description Side View Remark: For reference only. Video Input: Connect VGA cable with interactive touch MTS and source. Audio Input: When using VGA input, an audio cable is needed to connect PC and MTS. Touch Input: Using a USB cable to connect PC and interactive touch MTS - 12 -...
-
Page 13: Packing List
Packing List Part name Quantity RCU (Remote Control Unit) Warranty Card USB cable (1.5 metre, B-type) USB cable (1.5 metre, A-type) Stylus (3 pieces with different color) Telescopic Accessory Box User Manual Wall Mount Screws Power cable (1.8 metre, Australia specification) VGA cable (1.8 metre, black) HDMI cable (2 metre, black) Audio cable (1.5 metre, black) -
Page 14: Rcu (Remote Control Unit)
RCU (Remote Control Unit) 1） Standby: turn on or turn off the machine 2） Mute: mute or restore the sound 3） 0-9 numeric key: selection or input number 4） Info: display the screen information 5） E.S: energy-saving. On E.S mode, display will be turned off, audio keep working. -
Page 15: Introduction Of Osd
Introduction of OSD Operation of OSD — How to choose source channel Three ways as follows to choose the source channel: 1.1: Touch the source you want and already connect on the screen Step 1: Touch the source you want, such as HDMI1 Step 2: Touch the source screen - 15 -... -
Page 16: Introduction Of "Menu
1.2 Press slip menu to select Step 1: Touch screen bottom and slip up some distance, there will be menu show as below Step 2: Touch “input” Step 3: Touch the source you want 1.3 Use remote controller or press front source button and press" ◄►" and "OK" for confirmation Introduction of “Menu”... - Page 17 Picture menu Includes Picture mode, Contrast, Brightness, Hue, Sharpness, Saturation, Back Light, PC image Mode, Color temperature, Color Temperature, Zoom mode. 1. Press ▲/▼ to choose sub-menu. 2. Press “OK”to enter the channel. 3. Press ◄/► to adjust. 4. Press “OK”or “EXIT” to save or back to the previous menu.
- Page 18 Channel Menu Not available, when chose this Menu, will show previous menu content. Set Menu Including Menu Time, No signal shutdown time, Boot setting, Restore To Default. 1. Entering sub menu by pressing ▲/▼. 2. Entering into option by pressing “OK”. 3.
-
Page 19: Connecting Pc
Connecting PC Leave the MTS unit powered off Using the VGA or HDMI cable connect the MTS unit VGA or HDMI port with that of the PC Connect USB cable to the PC and to the touch port of the MTS unit. ... -
Page 20: Troubleshooting
Troubleshooting No Signal Possible Causes: Connecting ports damage, VGA or HDMI line failure, Source input selection error, VGA or HDMI line not fixed connected Corrective actions: Re-connect VGA or HDMI line and check if it is fixed firmly Select the right input source No Audio Possible causes: audio line not connected, check audio output from PC (e.g. - Page 21 Picture but no audio Check volume Check if the mute button is activated in the RCU No picture or only black and white picture Adjust color setting Check if the color format is right Disturbance in audio and picture ...
- Page 22 RoHS Standards Marking for toxic and hazardous substances and elements Toxic and Hazardous Substances or Elements Part name Lead Mercury Cadmium Hexavalent Chromium Polybrominated Biphenyl Polybrominated Diphenyl Ether Cr(VI)） (PBB） （Pb） （Hg） （Cd） （PBDE） Housing ○ ○ ○ ○ ○ ○...
