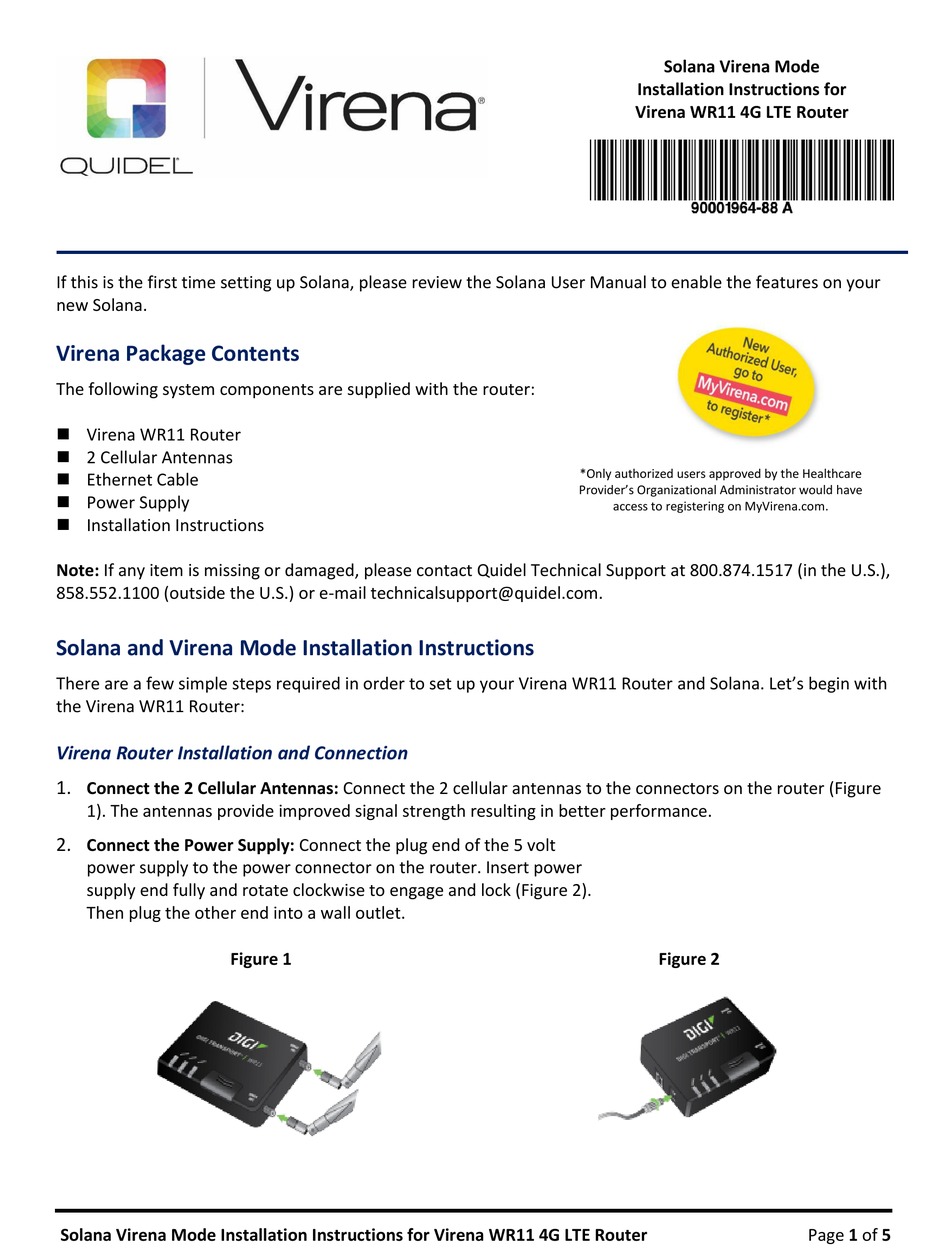

Quidel Virena WR11 Installation Instructions

Solana virena mode for 4g lte router
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

If this is the first time setting up Solana, please review the Solana User Manual to enable the features on your
new Solana.

Virena Package Contents

The following system components are supplied with the router:
◼ Virena WR11 Router
◼ 2 Cellular Antennas
◼ Ethernet Cable
◼ Power Supply
◼ Installation Instructions
Note: If any item is missing or damaged, please contact Quidel Technical Support at 800.874.1517 (in the U.S.),
858.552.1100 (outside the U.S.) or e-mail technicalsupport@quidel.com.
Solana and Virena Mode Installation Instructions
There are a few simple steps required in order to set up your Virena WR11 Router and Solana. Let's begin with
the Virena WR11 Router:

Virena Router Installation and Connection

1.
Connect the 2 Cellular Antennas: Connect the 2 cellular antennas to the connectors on the router (Figure
1). The antennas provide improved signal strength resulting in better performance.
2.
Connect the Power Supply: Connect the plug end of the 5 volt
power supply to the power connector on the router. Insert power
supply end fully and rotate clockwise to engage and lock (Figure 2).
Then plug the other end into a wall outlet.
Figure 1
Solana Virena Mode Installation Instructions for Virena WR11 4G LTE Router
Solana Virena Mode
Installation Instructions for
Virena WR11 4G LTE Router
*Only authorized users approved by the Healthcare
Provider's Organizational Administrator would have
access to registering on MyVirena.com.
Figure 2
Page 1 of 5
