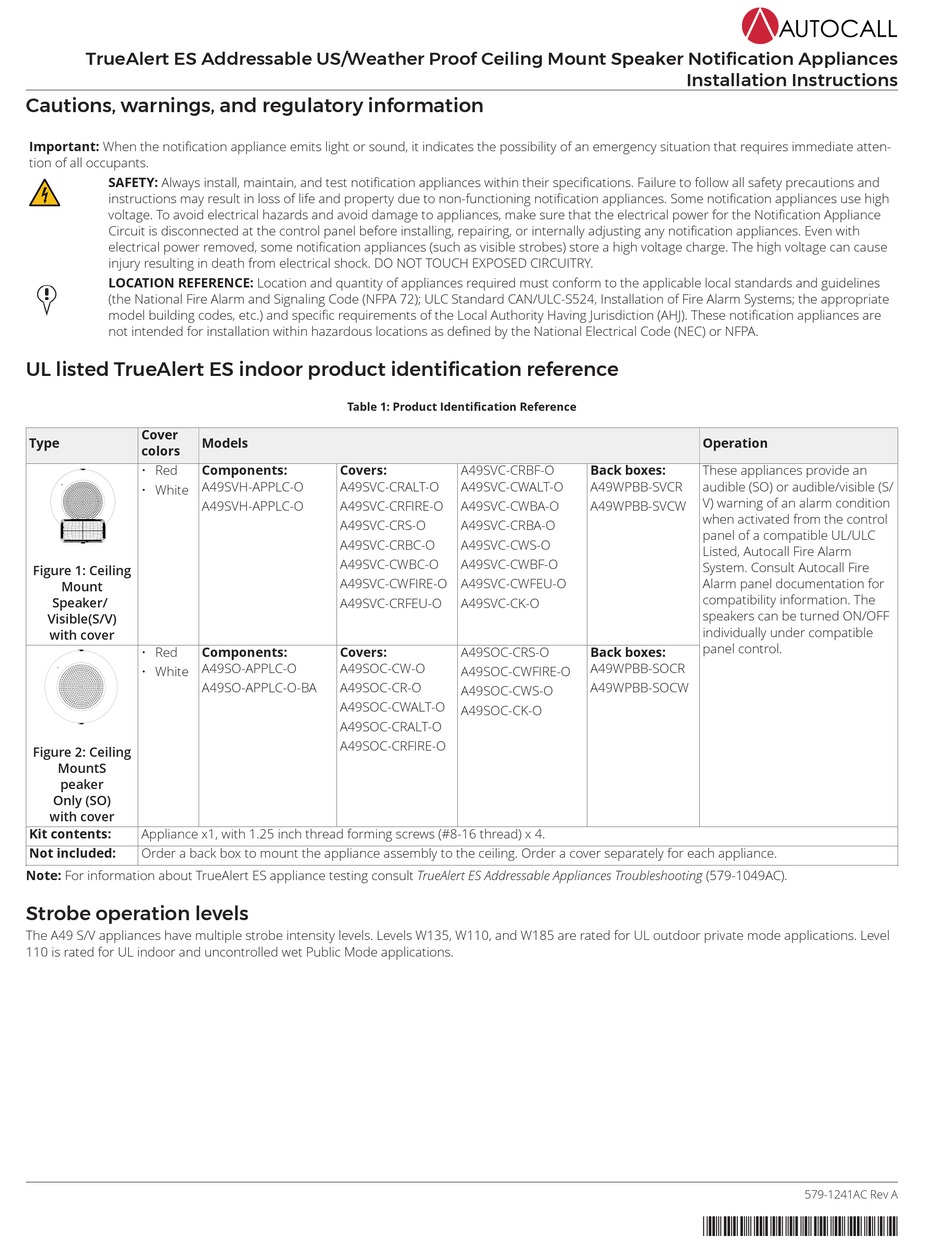

Autocall A49SVH-APPLC-O Installation Instructions Manual

TrueAlert ES Addressable US/Weather Proof Ceiling Mount Speaker Notification Appliances
Cautions, warnings, and regulatory information
Important: When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that requires immediate atten-
tion of all occupants.
SAFETY: Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety precautions and
instructions may result in loss of life and property due to non-functioning notification appliances. Some notification appliances use high
voltage. To avoid electrical hazards and avoid damage to appliances, make sure that the electrical power for the Notification Appliance
Circuit is disconnected at the control panel before installing, repairing, or internally adjusting any notification appliances. Even with
electrical power removed, some notification appliances (such as visible strobes) store a high voltage charge. The high voltage can cause
injury resulting in death from electrical shock. DO NOT TOUCH EXPOSED CIRCUITRY.
LOCATION REFERENCE: Location and quantity of appliances required must conform to the applicable local standards and guidelines
(the National Fire Alarm and Signaling Code (NFPA 72); ULC Standard CAN/ULC-S524, Installation of Fire Alarm Systems; the appropriate
model building codes, etc.) and specific requirements of the Local Authority Having Jurisdiction (AHJ). These notification appliances are
not intended for installation within hazardous locations as defined by the National Electrical Code (NEC) or NFPA.
UL listed TrueAlert ES indoor product identification reference
Cover
Type Models
colors
Components:
• Red
A49SVH-APPLC-O
• White
A49SVH-APPLC-O
Figure 1: Ceiling
Mount
Speaker/
Visible(S/V)
with cover
• Red Components:
A49SO-APPLC-O
• White
A49SO-APPLC-O-BA
Figure 2: Ceiling
MountS
peaker
Only (SO)
with cover
Kit contents:
Appliance x1, with 1.25 inch thread forming screws (#8-16 thread) x 4.
Not included: Order a back box to mount the appliance assembly to the ceiling. Order a cover separately for each appliance.
Note: For information about TrueAlert ES appliance testing consult TrueAlert ES Addressable Appliances Troubleshooting (579-1049AC).
Strobe operation levels
The A49 S/V appliances have multiple strobe intensity levels. Levels W135, W110, and W185 are rated for UL outdoor private mode applications. Level
110 is rated for UL indoor and uncontrolled wet Public Mode applications.
Table 1: Product Identification Reference
Covers:
A49SVC-CRBF-O
A49SVC-CRALT-O A49SVC-CWALT-O
A49SVC-CRFIRE-O A49SVC-CWBA-O
A49SVC-CRS-O A49SVC-CRBA-O
A49SVC-CRBC-O A49SVC-CWS-O
A49SVC-CWBC-O A49SVC-CWBF-O
A49SVC-CWFIRE-O A49SVC-CWFEU-O
A49SVC-CRFEU-O A49SVC-CK-O
Covers: A49SOC-CRS-O
A49SOC-CW-O
A49SOC-CWFIRE-O
A49SOC-CR-O
A49SOC-CWS-O
A49SOC-CWALT-O
A49SOC-CK-O
A49SOC-CRALT-O
A49SOC-CRFIRE-O

Installation Instructions

Operation
Back boxes:
These appliances provide an
A49WPBB-SVCR audible (SO) or audible/visible (S/
V) warning of an alarm condition
A49WPBB-SVCW
when activated from the control
panel of a compatible UL/ULC
Listed, Autocall Fire Alarm
System. Consult Autocall Fire
Alarm panel documentation for
compatibility information. The
speakers can be turned ON/OFF
individually under compatible
panel control.
Back boxes:
A49WPBB-SOCR
A49WPBB-SOCW
*05791241ACA*
579-1241AC Rev A
