- Page 1 Quick Start Guide IP2032-SUB2-QS, Rev AA May 2012 Mobrey Submersion Shield for the MSP900SH and MSP900FH...
- Page 2 MSP900SH Level and MSP900FH Flow transmitters. It does not provide installation instructions for the transmitters (or their optional accessories). Refer to the MSP900SH or MSP900FH installation manuals for detailed instructions. Product data sheets, reference manuals, and quick-start guides are available electronically on the Mobrey brand pages at www.delta-mobrey.com.
- Page 3 Mobrey MSP900SH/MSP900FH Submersion Shield The Mobrey Submersion Shield (MSP-SUB2) is recommended for installations, e.g. wet wells, where a MSP900SH/MSP900FH transmitter may be at risk of being flooded. It is easily fitted over the transducer cup, but requires the transmitter to be kept firmly vertical so that flood water causes an air pocket and keeps the transmitter face clear.
- Page 4 May 2012 Quick Start Guide Fitting the submersion shield Step 1: Check the transmitter mounting The transmitter mounting must ensure that the transmitter is firmly kept in place, and ideally at 90 degrees to the liquid surface. This is essential for an air pocket to be formed at the base of the shield as flood water rises and passes it.

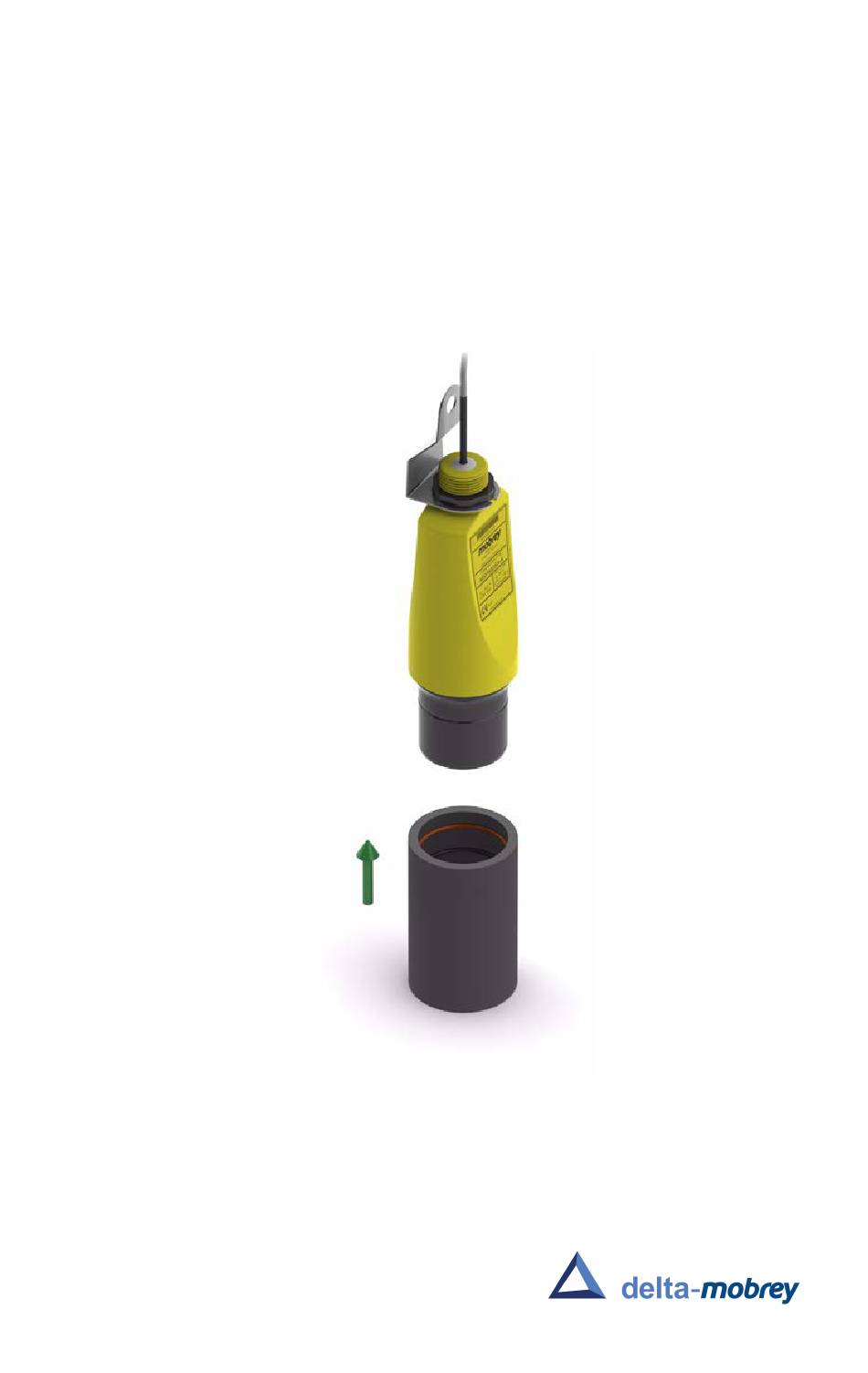

- Page 5 Quick Start Guide May 2012 Removing the submersion shield This is only necessary for occasional cleaning or inspection in the event of contamination from flood water. Follow this procedure: 1. Holding the transmitter, pull the shield downwards firmly until the red O-ring Figure 4 is released from the recess on the transducer cup ( 2.
- Page 6 May 2012 Quick Start Guide...
- Page 7 Quick Start Guide May 2012...
- Page 8 Quick Start Guide IP2032-SUB2-QS, Rev AA May 2012 Linkedin.com/company/delta-mobrey-ltd Twitter.com/DeltaMobreyUK Head Office Delta Mobrey Limited Riverside Business Park, Facebook.com/DeltaMobreyUK DogfludWay, Farnham, GU9 7SS, UK +44 (0)1252 729140 Standard Terms and Conditions of Sale can be found +44 (0)1252 729168 at: www.delta-mobrey.com mobrey@delta-mobrey.com...
