Summary of Contents for Opencockpits B737 MCP V3
-
Page 1: Installation And Use Manual For B737
Date:22/02/13 Rev.:1.0 Installation and Use Manual for B737 MCP V3. -
Page 2: Table Of Contents
ESCRIPTION OF BUTTONS STARTING THE MCP: ..........................5 : ..........................5 HECKING THE MODULE : ........................6 NSTALLING THE SOFTWARE Our own configuration: ......................... 6 Use of files configured by third or Opencockpits: ................. 6 LINKS OF INTEREST: ..........................11 www.opencockpits.com... -
Page 3: Introduction

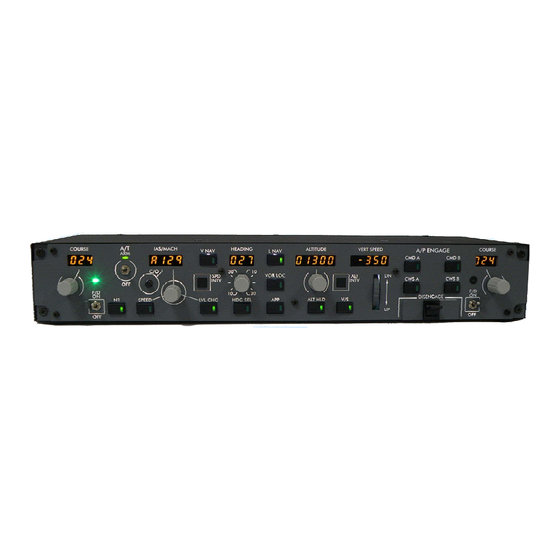

Installation and Use Manual for B737 MCP V3. Introduction: The MCP is a system of instruments commonly called cockpit autopilot wich the crew can handle different flight modes. MCP V3 B737: The Opencockpits MCP V3 module is ideal for managing these modes flight simulation. -
Page 4: Description Of Buttons
Installation and Use Manual for B737 MCP V3. Description of buttons: Note: All components of the module and its operations, are subordinated to MCP and model airplane and / or add-on that is used. 1. COURSE: It shows the course of the VOR or ILS selected (CPT).. -
Page 5: Starting The Mcp
Installation and Use Manual for B737 MCP V3. 29. V/S: Button for mode pitch VERTICAL SPEED. 30. V/S SELECTOR: With the wheel select vertical speed. 31. DISENGAGE: Disable any autopilot mode, except the SPEED. 32. F/D: Arming Switch for Flight Director (FO). -
Page 6: Installing The Software
Once downloaded the programs and scripts we will use (available in the "Downloads" tab of module web page). Connect the module to the PC B737 MCP V3, run Sioc.exe, we see on the upper right window the value of USB (Device) where the module is connected and note the number,... - Page 7 Specific configurations for add-ons: Keep in mind that some add-on need special configurations or specific drivers such as ProSim, PMDG 737NGX or iFly 737 wich we have the drivers in Opencockpits help page and in the "Download" tab of product page.
- Page 8 Installation and Use Manual for B737 MCP V3. Assuming that ProSim is properly configured about IOCP server IP address and port, the only configuration to make is into the software ProSimMCP.exe, where we enter the value of the IOCP server IP address and port (those in the SIOC window: In ProSimMCP.exe be copied the same configuration of ports and ip:...
- Page 9 2.- IFly: This add-on requires an intermediary IOCP client software. In the market there are various and almost all free. Some are more popular than others by the amount of offsets that implement, Opencockpits offers one free but not all operational offsets, the IOCP_if737.exe, downloadable from the Opencockpits support page.
- Page 10 3.- PMDG 737NGX: This add-on requires a client software like iFly without need FSUIPC. Currently only there is available a program called OC4BA (Opencockpits for Boeing Airplanes). This software has differents requirements than the above concerning the configuration of Sioc.
-
Page 11: Links Of Interest
Bank Angle function is activated leaving pressed and rotating button number 9. With this gives end to this manual, we invite you to read the manuals of the others Opencockpits elements and of the SIOC software and give you the thanks for trusting in we. Links of Interest: Support area for clients: http://www.opencockpits.com/catalog/info/...
