- Page 1 USER Manual Wi-Fi Endoscope www.dbpower.co...

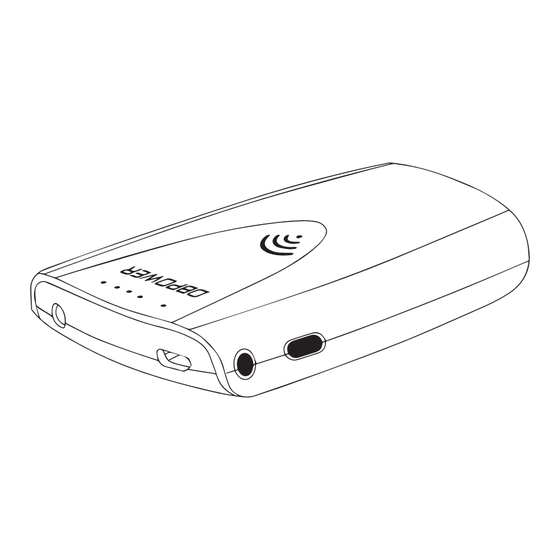

- Page 3 AT A GLANCE WI-FI Indicator LED battery indicator Flashlight Switch Power on/off Flashlight USB Port USB Charger...
- Page 4 METHOD OF USING (Note: Please make sure that the Wi-Fi transmitter is fully charged before using.) 1. Download and install the “Wi-Fi View” app on your device from Google Play Store or the APP Store. 2. Connect the endoscope camera and the Wi-Fi transmitter via the Micro USB cable.
- Page 5 4. Access your phone's Wi-Fi settings, find the wireless signal named “PLX_Camera”, select that and input the password “12345678" to connect to it. 5. Open the application “Wi-Fi View” and the endoscope image will be displayed automatically. Take a photograph...
- Page 6 HOW TO USE THE CAMERA WITHOUT THE WI-FI TRANSMITTER FOR LAPTOP DEVICES: 1. Install the Smart Camera.exe software from the supplied CD, and then double-click it to open. 2. Connect the OTG adapter with the camera. 3. Plug it into the laptop’s USB port and the endoscope...
- Page 7 FOR USE VIA ANDROID PHONE/TABLET MICRO USB PORT: 1. Download and install the “Wi-Fi View” app on your device from Google Play or the App Store. 2. Plug into an android phone though Micro USB port Only applies to 3m and 5m cable.
-
Page 8: Battery Level
3.Open the application “Wi-Fi View” and the endoscope image will be displayed automatically. HOW TO USE THE LED FLASHLIGHT Activate the light switch to turn on the endoscope’s LED light. Turn on the flashlight HOW TO CHARGE THE DEVICE AND CHECK THE... - Page 9 Pull out the USB connector on the back of the Wi-Fi transmitter. Plug it into the USB port of a computer or other suitable charging device. On the Wi-Fi transmitter, four blue LED lights indicate 100%, 75%, 50%, and 25% of battery power, respectively. If no lights are displayed, the device is powered off.
-
Page 10: How To Use The Accessories
HOW TO USE THE ACCESSORIES 1. Telescopic Handle 2. Magnet 3. Hook 4. Mirror... -
Page 11: Product Parameters
PRODUCT PARAMETERS: Sensor: 2.0 mega pixel Resolution: 1600x1200 (YUV), 1280x720 (MJPG) Photo resolution: 1600x1200 Video resolution: 1280x720 Viewing angle: 60° Focal distance: 3-6CM Interface: USB2.0 LEDs: 6 White LED Adjustable Lighting Waterproof: IP67 PRODUCT LIST: ( x1 ) Wi-Fi... - Page 12 Q&A Q: How long does it take to fully charge the Wi-Fi transmit- ter? A: Approximately 2 hours. This will give about 1-hour of use. Q: Does it work directly connected to a device, without the using the Wi-Fi transmitter? A: Yes.
- Page 13 A: A black image with the letter “U” means there is a problem with the camera. Please check if the USB cable and port are well connected. You can also test the camera by connecting it with a computer.
- Page 14 CUSTOMER SERVICE TWO-YEAR LIMITED WARRANTY LIFETIME TECHNICAL SUPPORT Contact us to get warranty or technical support support@dbpower.co...
- Page 15 FCC ID :2AKMMPLXWF2016 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
