- Page 1 USER Manual Wi-Fi Endoscope...
- Page 2 User Manual WIFI Endoscope I. Description and Instructions This product is alightweight and portable Endoscope, which adopts the latest wireless connection technology to connect with your mobile phone / computer equipment. It provides reliable signal transmission and stable image transmission, and it can support multiple terminal devices tobrowse online at the same time! The product can be used in automotive maintenance, industrial testing, pipeline testing,...

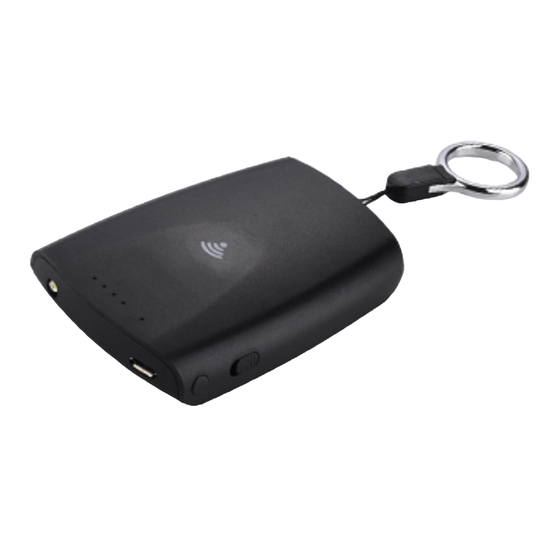

- Page 3 ①Battery LED Signal ② WiFi Operation Signal ③USB Charger ④ LED Light ⑤ Camera Port ⑥Power ⑦ LED Light Switch II.Usage scenarios Maintenance and check of the car Check of the pipeline and sewer Check of the air-conditioning and other equipment Outdoor adventure(mouse hole and anthill) III.WIFI camera operation method 1.
- Page 4 3. Android user: Search Mo-view in GooglePlay to download and install. Or scan QR code below to download. IOS user: search Mo-view in APP STORE to download and install. Or scan QR code below to download. 4.Open phone’s WLAN or WIFI settings (phones have a slight difference in setting), find wireless signal named PLX_Camera (PLX camera), click it and then input the password 12345678 to connect.
- Page 5 5. Open the application for Mo-view, and the image will be displayed automatically. Mainly explained : On the WIFI box, the right four green LED lights lit indicates that the battery is 100% , three lights indicates 75% battery power, two lights indicates 50%, one light indicates 25%.
- Page 6 View1.0.4.exe to computer, double-click it to install and open. Click the Start button in the software, and real-time image transmission starts. If you want to directly connect the phone through the use of Micro USB (must be Android system and the phone itself opens OTG function), methods of operation as follows：...
- Page 7 IV.Trouble clearing 1. Why can not it boot after pressing the power button, and the battery power light will light up？ Answer：In order to avoid misoperation, you can not boot to press the power button in short time, WIFI box will work till you are sure to press for 1.5 seconds.
- Page 8 wipe the glass surface and then use 5. After a period of time, the screen will appear splash screen or blurred screen, why ? Answer: This phenomenon may be due to low battery, please fully charged before using the product; then if the battery is less than 5%, the image will exhibit unstable behavior, such as the screen flash, blurred screen and so...
- Page 9 V. Product Parameters and Product List Product parameters： Sensor: 2.0Mega pixel Resolution: 1600x1200(YUV), 1280x720（MJPG） Photo resolution: 1600x1200 Video resolution: 1280x720 View angle: 60° Focal distance: 3-6CM Interface: USB2.0 Light: 6LEDS Waterproof: IP67 Product List： WIFI box USB endoscope User manual CD Driver Hook Magnet...
