Summary of Contents for FAAC XTR B INOX

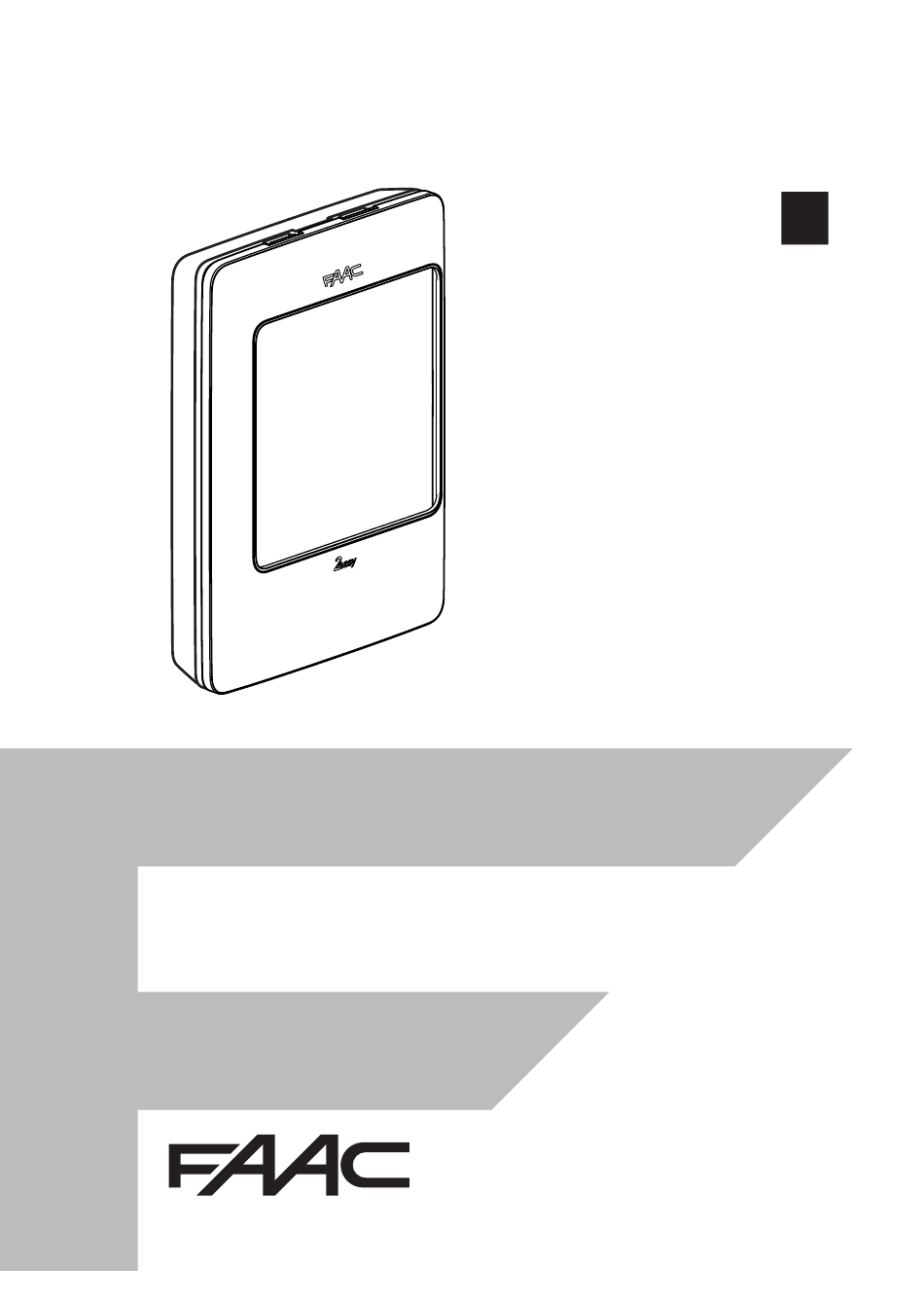

  • Page 1 XTR B...
  • Page 2 © Copyright FAAC S.p.A. dal 2017. Tutti i diritti © Copyright FAAC S.p.A. from 2017. All rights riservati. reserved. Nessuna parte di questo manuale può essere ripro- No part of this manual may be reproduced, archived, dotta, archiviata, distribuita a terzi né altrimenti...
  • Page 3 786040 13.56 MHz Made in Ireland 2051 Etichetta di identificazione prodotto Product identification plate A. Codice identificativo del modello A. Model identification code B. Leggere le istruzioni B. Operating instructions C. Smaltire secondo le direttive vigenti C. Dispose in accordance with current regulations D.
  • Page 4 MAX 45° Guarnizione di tenuta IP • IP sealing gasket • Joint d'étanchéité IP • IP Dichtung • Junta de estanqueidad IP • IP-afdichting Ø 15 mm  • XTR B INOX •  Ø 4 mm   MAX 45°...
  • Page 5 2 1 2 3 4 5 Dip-switch • Dip-switch • Dip-switch • Dip-Schalter • Dip-switch • DIP-schakelaar Pulsante • Button • Bouton • Taste • Botón • Drukknop Jumper • Jumper • Jumper • Jumper • Jumper • Jumper BUS 2easy Morsetti • BUS 2easy Terminals • BUS 2easy bornes • BUS 2easy Klemmen • BUS 2easy Bornes •...
  • Page 6 • Joint d'étanc- héité IP • IP Dichtung • Junta de estanqueidad IP • IP-afdichting • XTR B INOX • Guarnizione di tenuta IP • IP sealing gasket • Joint d'étanc- héité IP • IP Dichtung • Junta de estanqueidad IP •...
  • Page 7 4 • XTR B INOX •  5 • XTR B • XTR B 532109 - Rev.A...
  • Page 8 6 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5   XTR B (A) XTR B (B)   7 BUS 2easy BUS-RELAY 4CH BUS-RELAY 2CH - 1CH max 14 XTR B 1CH/2CH max 4 XTR B - 2CH max 4 XTR B Tag-Group1...

  • Page 9: Table Of Contents

    Description: Tag reader Models: XTR B, XTR B INOX comply with the following applicable EU legislations: RED Directive 2014/53/EU ROHS 2 Directive 2011/65/EU Furthermore, the following harmonised standards have been applied:...

  • Page 10: Xtr B

    (see catalogue). Commands. If the XTR B is connected to the The XTR B only recognises dedicated FAAC Tags BUS 2easy of a board, the commands are defined (see catalogue). A limited number of Tags can by the dip-switches on the reader. If the XTR B be enabled.

  • Page 11: Technical Data

    Connection type Mode (§ Dip-switch con- No. of control devices that can be connected figuration) max 14* Board with BUS 2easy * Theoretical no.: The actual max 4* number of control devices that can be connected depends on the max 4* BUS-RELAY 4CH interface total absorbed power of all the max 4*...

  • Page 12: Safety Information

    2. SAFETY INFORMATION 3. INSTALLATION 1. Prepare the connecting cables and install the The packaging materials (plastic, polysty- base. Follow the instructions in  1. rene, etc.) must not be left within reach 2. Connect to the BUS 2easy terminals on the of children as they are potential sources board or the BUS-RELAY interface.

  • Page 13: Connecting To The Board With Bus 2Easy

    3.1 CONNECTING TO THE BOARD WITH order to identify which commands are already used. For future reference, you can make a BUS 2EASY note of the IDs of the installed devices in the table at the end of this manual. Any CONFIGURING THE DIP-SWITCHES BUS 2easy photocells or BUS 2easy safety Position the dip-switches ( 1 or ...

  • Page 14: First Storage Of Tags

    FIRST STORAGE OF TAGS FIRST STORAGE PROCEDURE The XTR B must be in standby. The memory must be empty. 1. Press and release the button once. - After 2 s, the XTR B will BEEP once and flash once. - It will flash for 20 s (storing enabled). 2.

  • Page 15: Connecting To A Bus-Relay Interface

    3.2 CONNECTING TO A BUS-RELAY INTERFACE CONFIGURING THE DIP-SWITCHES Position the dip-switches ( 3) in order to specify: - 1CH or 2CH mode of operation (Dip-switch 5) CORRESPONDENCE BETWEEN GROUP/RELAY - ID device identifier (Dip-switches 1-2) Group 1 Dip-switches 3-4 are irrelevant. XTR B (1CH) Relay 1 Each control device connected to the BUS line must have a different ID.

  • Page 16: First Storage Of A Tag-Group

    FIRST STORAGE OF A TAG-GROUP FIRST STORAGE OF A Tag-GROUP The XTR B must be in standby. The memory of the Group selected must be empty. N times (N = Group number) 1. Select the group: press the button the same number of times as the number of the Group (eg.: Group 3, press 3 times).

  • Page 17: Deleting All Tags

    4. DELETING ALL TAGS This procedure permanently deletes all Tags from memory. The XTR B must be in standby. TOTAL DELETION 1. Press and hold the button throughout the entire sequence:  ~20 s - After 2 s the XTR B will BEEP once and starts to flash for 10 s.

  • Page 18: Troubleshooting

    6. TROUBLESHOOTING Indication Explanation Necessary action The LEDs do not light up when No power or the XTR B is not Check that the power supply is connected it is switched on. working. and live. If there are no errors, replace the XTR B.

  • Page 19: Usage

    8. USAGE 1CH MODE: 1 COMMAND mediately. 1. Bring the Tag up to the reader in standby: B. Maintained action command: move the Tag - The XTR B will BEEP once and the LEDs will come away only when you wish to stop the command. on steadily When the Tag is moved away, the LEDs turn off.
  • Page 20 Maintained action command 1 Maintained action command 2 1. Bring the Tag close to the reader in standby and 1. Bring the Tag close to the reader in standby and hold it there: hold it there: - The XTR B will BEEP once and the LEDs will - The XTR B will BEEP once and the LEDs will come on steadily come on steadily...

  • Page 21: Adding Tags

    9. ADDING TAGS ADDING TAGS You must have a Master Tag that has already been stored and be close to the XTR B (without having  ~ 5 s to open it). Tag NOT stored If the XTR B is connected to a BUS-RELAY interface, use a Master Tag of the required Group.
  • Page 22 ID dispositivo • Device ID • Comando • Command • Note • Notes • Remarques • Anmerkung • ID dispositif • Geräte-ID • Commande • Steuerung • Notas • Opmerkingen ID dispositivo • ID apparaat Comando • Commando XTR B 532109 - Rev.A...
  • Page 23 ID dispositivo • Device ID • Comando • Command • Note • Notes • Remarques • Anmerkung • ID dispositif • Geräte-ID • Commande • Steuerung • Notas • Opmerkingen ID dispositivo • ID apparaat Comando • Commando XTR B 532109 - Rev.A...
  • Page 24 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 758518 www.faac.it - www.faacgroup.com XTR B 532109 - Rev.A...
