BIKE DEPOT

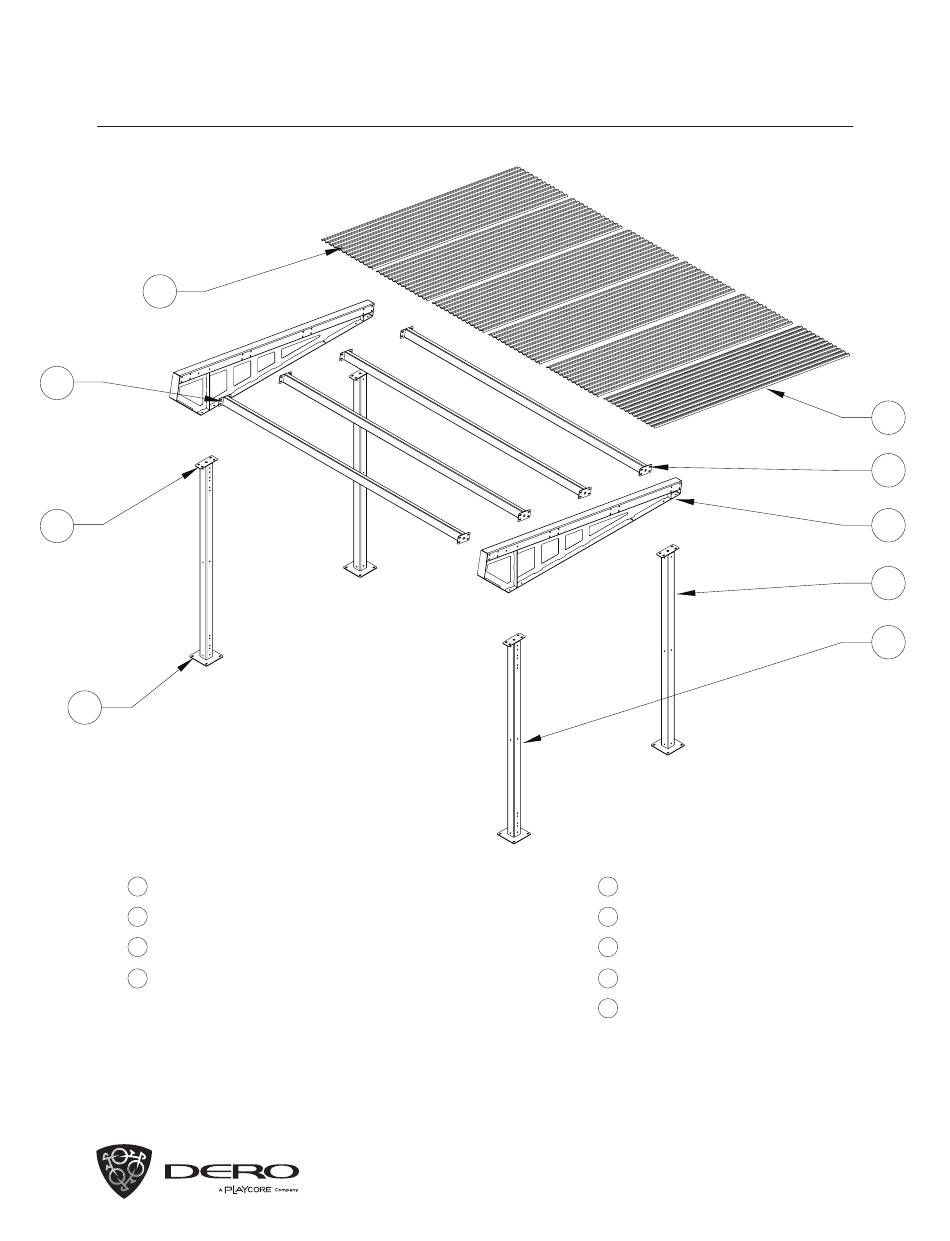

Parts List
A
B
C
D
A
(12) 1/4" SELF-DRILL SCREWS
B
(4) 1/2" BOLTS
C
(4) 1/2" BOLTS
D
(4) 1/2" DIA. SIMPSON STRONG
BOLT 2 ANCHORS
3.5" MIN. EMBEDMENT
www.dero.com
|
1-888-337-6729
© 2018 Dero
1
UPRIGHT BACK WELDMENT
2
TRUSS WELDMENT
3
UPRIGHT FRONT WELDMENT
4
PURLIN WELDMENT
5
TYPE S DECK 2.5 X .5625
5
4
2
1
3
Advertisement
Table of Contents
Related Manuals for Playcore DERO BIKE DEPOT
Summary of Contents for Playcore DERO BIKE DEPOT
-
Page 1: Parts List
BIKE DEPOT Parts List (12) 1/4” SELF-DRILL SCREWS UPRIGHT BACK WELDMENT (4) 1/2” BOLTS TRUSS WELDMENT (4) 1/2” BOLTS UPRIGHT FRONT WELDMENT (4) 1/2” DIA. SIMPSON STRONG PURLIN WELDMENT BOLT 2 ANCHORS TYPE S DECK 2.5 X .5625 3.5” MIN. EMBEDMENT www.dero.com 1-888-337-6729 ©... -
Page 2: Tools Needed
BIKE DEPOT Installation Instructions - Main Structure TOOLS NEEDED Tape Measure Material Lift or Fork Lift Level Wrenches: 9/16”, 3/4” Hammer Drill Socket Wrench with Sockets: 7/16”, 1/2”, 9/16”, 3/4” Large Hammer Drive Socket 5/16” Chalk Line Tall Ladder Masonry Bits: 3/8”, 1/2” Customer is responsible for preparing the slab with minimum strength of 3,000psi as shown DETAIL E SCALE 1 : 6... -
Page 3: Installation Instructions
BIKE DEPOT Installation Instructions www.dero.com 1-888-337-6729 © 2018 Dero... - Page 4 BIKE DEPOT Installation Instructions - Main Structure Rear uprights Front uprights (more holes) Place uprights on concrete pad over footings (see Lift trusses into place and fasten to uprights step 1). Confirm all uprights are properly spaced with (4) ½” x 1.5” carriage bolts, (4) lock washers, and square.
- Page 5 BIKE DEPOT Installation Instructions - Panels Place a side panel in the upper position and Place a side panel in the lower position and attach with (2) 3/8” x 5.5” carriage bolts, (2) 3/8” attach with (4) 3/8” x 5.5” carriage bolts, (4) 3/8” carriage bolt washers, (2) 3/8”...
- Page 6 BIKE DEPOT Installation Instructions - Panels For shelters with front panel in place of doors, Attach (4) hinges with (4) 3/8 x 5” carriage bolts, attach rear panels in the front of the shelter. (4) 3/8” carriage bolt washers, (4) 3/8” washers, and (4) Penta nuts at each hinge.
- Page 7 BIKE DEPOT Installation Instructions - Panels Line up top and bottom door stops Anchor the lower door stops to the concrete with Fill the (8) 3/8” holes in the left door with (8) ¼ x (2) 3/8 x 3” wedge anchors and (2) Penta nuts 2.5”...
