Safety 1st GlideFix User Manual

Child restraint system (0-7 years)
Hide thumbs
Table of Contents

Advertisement

Quick Links

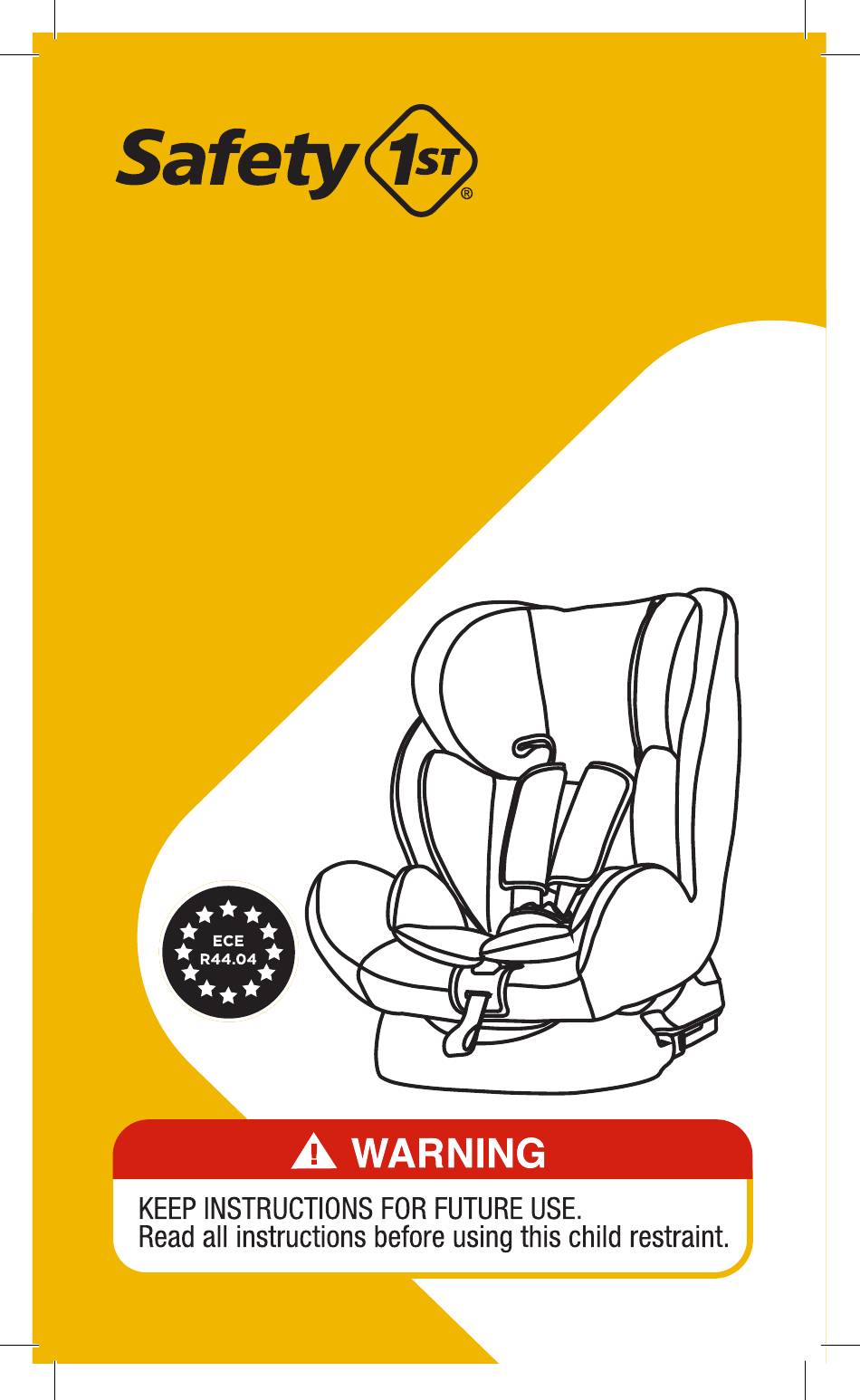

GlideFix
Child Restraint System
User Guide
Group : 0+/1/2
Weight : 0-25kg, from birth up to approx. 7 years
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlideFix and is the answer not in the manual?

Questions and answers

Related Manuals for Safety 1st GlideFix

Summary of Contents for Safety 1st GlideFix

  • Page 1 GlideFix Child Restraint System User Guide Group : 0+/1/2 Weight : 0-25kg, from birth up to approx. 7 years...
  • Page 2 Congratulations on your purchase! To ensure maximum protection and optimum comfort for your child, it is essential that you read through the entire manual carefully and follow all instructions. IMPORTANT — DO NOT USE FORWARD FACING BEFORE THE CHILD’S WEIGHT EXCEEDS 9 kg! DOREL AUSTRALIA PTY LTD 655-685 Somerville Road...
  • Page 3 This restraint system is ‘Universal’ when used in group 0+/1/2 (0-25 kg) with vehicle belt: NOTICE This is a ‘Universal’ child restraint. It is approved to Regulation No. 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a ‘Universal’...

  • Page 5: Table Of Contents

    Table of Contents Understanding Your Car seat ................Parts ...........9 Installation Position Installation in Vehicle .......10 Gr0+ Vehicle Belt Installation ........13 Gr1 Vehicle Belt Installation ..........16 Gr1 ISOFIX Installation ........18 Gr2 Vehicle Belt Installation ....23 Gr2 Vehicle Belt+ISOGO Installation General Use ............26 Harness System ........27...

  • Page 6: Parts

    Parts...
  • Page 7 Parts...
  • Page 8 Parts ⑱ ⑳...

  • Page 9: Installation Position

    Installation Position IMPORTANT — Only suitable if the approved vehicles are fitted with 3 point with retractor safety- belts, approved to UN/ECE Regulation No. 16 or other equivalent standards. Prohibition Correct position See Car Fitting List...

  • Page 10: Gr0+ Vehicle Belt Installation

    Gr0+ Vehicle Belt Installation Group 0+(0-13 kg), Rear Facing, Vehicle Belt Installation NOTE: The Top Tether must be removed when used in Group 0+. 1. Rotate the top tether's 2 metal retainers, pull out them to remove the top tether. 2.
  • Page 11 Gr0+ Vehicle Belt Installation 4. Pass the seat belt from the back of the seat. 5. Pass the shoulder belt from the back of the seat guide hook, make sure the shoulder belt is limited in the guide hook. 6. Pass the lap belt from the Gr0+ belt guide and make sure the lap belt is limited in the guide...
  • Page 12 Gr0+ Vehicle Belt Installation 7 . Pass the lap belt from the bottom of the seat base as shown. 8. Pull out the lap belt from the other side of the Gr0+ belt guide, lock the tongue into the buckle until you hear the "click!"...

  • Page 13: Gr1 Vehicle Belt Installation

    Gr1 Vehicle Belt Installation Group 1 (9-18 kg), Forward Facing, Vehicle Belt Installation 1. Recline the car seat to the proper position. 2. Pull out the vehicle belt and put it above the car seat. 3. Pull out the tongue, thread the shoulder belt and lap belt to the Gr1 belt guide.
  • Page 14 Gr1 Vehicle Belt Installation 4. Pass the shoulder belt and lap belt from the back of the seat as shown, then thread to the other side of the Gr1 belt guide. 5. Pull out the tongue, shoulder belt and lap belt as shown.
  • Page 15 Gr1 Vehicle Belt Installation Tighten the lap belt. 8. Tighten the shoulder belt, make sure the car seat is already secured.

  • Page 16: Gr1 Isofix Installation

    Gr1 ISOFIX Installation Group 1 (9-18 kg), Forward Facing, ISOFIX and Top Tether Installation NOTE: Consult your vehicle owner's manual to find the ISOFIX and Top Tether positions. 1. Thread the 2 metal retainers to the hooks, rotate them and secure the Top Tether.
  • Page 17 Gr1 ISOFIX Installation 4. Push the ISOFIX connectors into the vehicle anchorages, until you hear the "click". Push the seat backward until it clings to the vehicle seat. 5. Push and pull the car seat from side to side, make sure it is secured. 6.

  • Page 18: Gr2 Vehicle Belt Installation

    Gr2 Vehicle Belt Installation The 5-point harness system should be removed in group 2 when use vehicle belt to install. Please follow the step 1-12 to remove and store the harness. 1. Unzip the Velcro of the cushion, remove the seat cushion from the shouler belt and crotch.
  • Page 19 Gr2 Vehicle Belt Installation 4. Remove the harness end from the mounting plate and remove the harness from the front of the car seat. 5. Remove the 2 harness covers' straps from the lever, then secure the back cover with 3 screws.
  • Page 20 Gr2 Vehicle Belt Installation 7. Pull out the seat cover from the shell as shown. 8. Lift the seat cover to show the shell. 9. Lift the sponge pad, fold the harness belt as shown.
  • Page 21 Gr2 Vehicle Belt Installation 10. Put back the sponge pad. 11. Install back the seat cover. 12. Roll up the adjust strap, put it into the adjust button slot.
  • Page 22 Gr2 Vehicle Belt Installation Group 2 (15-25 kg), Forward Facing, Vehicle Belt Installation NOTE: The group 2 mode can only be used in upright position. 1. Put the vehicle belt above the car seat, thread the shoulder belt into GII belt guide at the head rest.

  • Page 23: Gr2 Vehicle Belt+Isogo Installation

    Gr2 Vehicle Belt+ISOGO Installation Group 2 (15-25 kg), Forward Facing, ISOGO + Vehicle Belt Installation NOTE: The group 2 mode can only be used in upright position. 1. Press the release button of ISOFIX, push backward the ISOFIX connector emphatically at both sides.
  • Page 24 Gr2 Vehicle Belt+ISOGO InstallationI 4. Put your child into the car seat. 5. Pull out the shoulder and lap belt from the GII belt guide at the armrest, push buckle tongues into buckle, until you hear the "click". CLICK! NOTE: Don't use top tether when installed with ISOGO and vehicle belt at group 2.

  • Page 26: General Use

    General Use Harness System Unbuckle Harness Press in towards the top of the red button. Pull buckle tongues out. Buckle Harness 1.  C ombine the right and left buckle tongues. 2. P u s h b u c k l e to n g u e s into buckle.

  • Page 27: Harness System Adjustments

    General Use 3. Until you hear the"click". CLICK! Harness System Adjustments Loosen Harness Straps Push down on harness adjuster button while pulling out on harness straps as shown. Tighten Harness Pull on harness adjustment strap to tighten harness snugly.

  • Page 28: Reclining Child Restraint

    General Use Reclining Child Restraint To recline, pull out on recline handle and push top of child restraint back. For upright, pull out on recline handle and pull top of child restraint forward. Warning: Only the upright position can be used in Group 2 (15-25 kg) Group 0+ Group I...

  • Page 29: Adjusting Headrest Height

    General Use Adjusting Headrest Height Pull upward the headrest adjustment handle, move the headrest up or down to the proper height for your child. Forward-Facing Rear-Facing Infant Cushion Please use the infant cushion attached to this car seat when your baby's weight is less than 13 kg.

  • Page 30: Warning

    Warning • This car seat has been approved in accordance with the latest European safety standards (ECE R44/04) and is suitable for children from newborn to 25 kg. • Do not use forward facing before your child's weight exceeds 9 kg. DO NOT place rear-facing child seat on front seat with airbag! •...
  • Page 31 If you use the Glidefix on the front seat, it is recommented to deactivate the airbag of the seat in question and move the passenger seat back to a maximum (Please consult your car manual).
  • Page 32 Warning • Make sure that any luggage and other objects liable to cause injuries in the event of a collision shall be properly secured. • After putting the child in the car seat, ensure that the harness is sufficiently tight by pulling the belt. Before every use, make sure the harness is not damaged or twisted.

  • Page 33: Care

    Care Fabric Before cleaning check the label sewn into the fabric, you will find the wash symbols indicating the method of washing each item. Please remove air protect bags (2x) from headrest trim before washing. Refit air protect bag once headrest is dry.

  • Page 34: Warranty

    Warranty Warranty Dear Customer, Thank you for the confidence you have shown in us by choosing one of our products. We hope it will meet all your expectations. This certificate indicates that this product has been manufactured according to the quality standards applicable and that it has been subjected to numerous checks during the various manufacturing stages.
  • Page 35 Warranty first purchaser benefits from this. What do you have to do? After you purchase your product, you must keep the sales receipt showing the date of purchase. If a problem should arise, the product must be taken back to the retailer from whom it was bought. Any product sent directly to the manufacturer will not be covered by the guarantee.
  • Page 36 Notes...
  • Page 37 Notes...
  • Page 38 Notes...
  • Page 39 Notes...
  • Page 40 DOREL AUSTRALIA PTY LTD 655-685 Somerville Road Sunshine West Victoria 3020 Hours: 8:30 am - 5:00 pm Mon-Fri Email: customerservice@dorel.com.au Phone: 1300 809 526 IGC DOREL NEW ZEALAND LTD 14 Sir William Avenue East Tamaki Auckland 2013 Hours: 8:00 am - 5:00 pm Mon-Fri Email: customerservice@dorel.co.nz Phone: 0800 628 000 (toll free) Specifications are subject to change without notice.
