Dynabrade 52715 Safety, Operation And Maintenance

Dynabrade 52715 Safety, Operation And Maintenance

1hp cone or plug grinder governor controlled

Advertisement

Quick Links

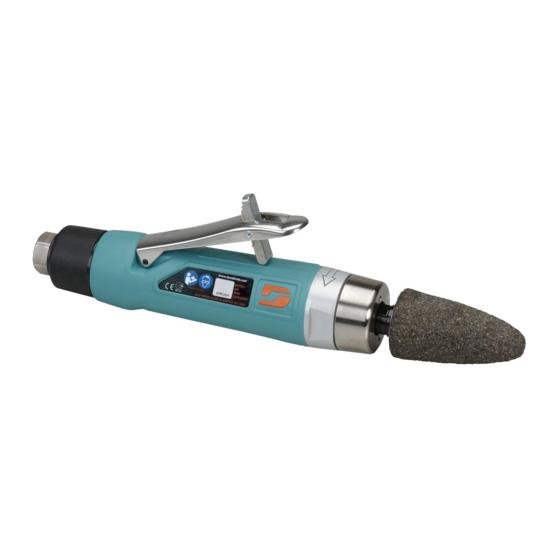

1Hp Cone or Plug Grinder
Governor Controlled
Models:
52715 – 12,000 RPM
52716 – 15,000 RPM
52717 – 18,000 RPM
52718 – 20,000 RPM
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed written consent from Dynabrade, Inc.
Tool Intent:
Cone or Plug Grinders are ideal for smoothing weld seams, cleaning castings and preparing surfaces for plating or painting.
Training:
Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide cone or plug grinder operators with safety instructions and training for safe use of tools and accessories.
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Mount only recommended accessories. See back page of manual and Dynabrade catalog.
• Follow tool specifications before choosing size and type of accessory.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure rating of 150 PSIG (10 bars, g) or 150
percent of the maximum pressure produced in the system, whichever is higher. (See tool Machine Specifications table.)
• DO NOT use – cut off wheels or router bits.
Warning:
Always wear eye protection. Operator of tool is responsible for following: accepted eye, face, respiratory, hearing and body protection.
WARNING

SAFETY LEGEND

WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

®
Do Not Use Tool For Anything Other Than Its Intended Applications.

OPERATING INSTRUCTIONS

(Continued on next page.)
Abrasive Power Tool.
WARNING
WARNING
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52715 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynabrade 52715

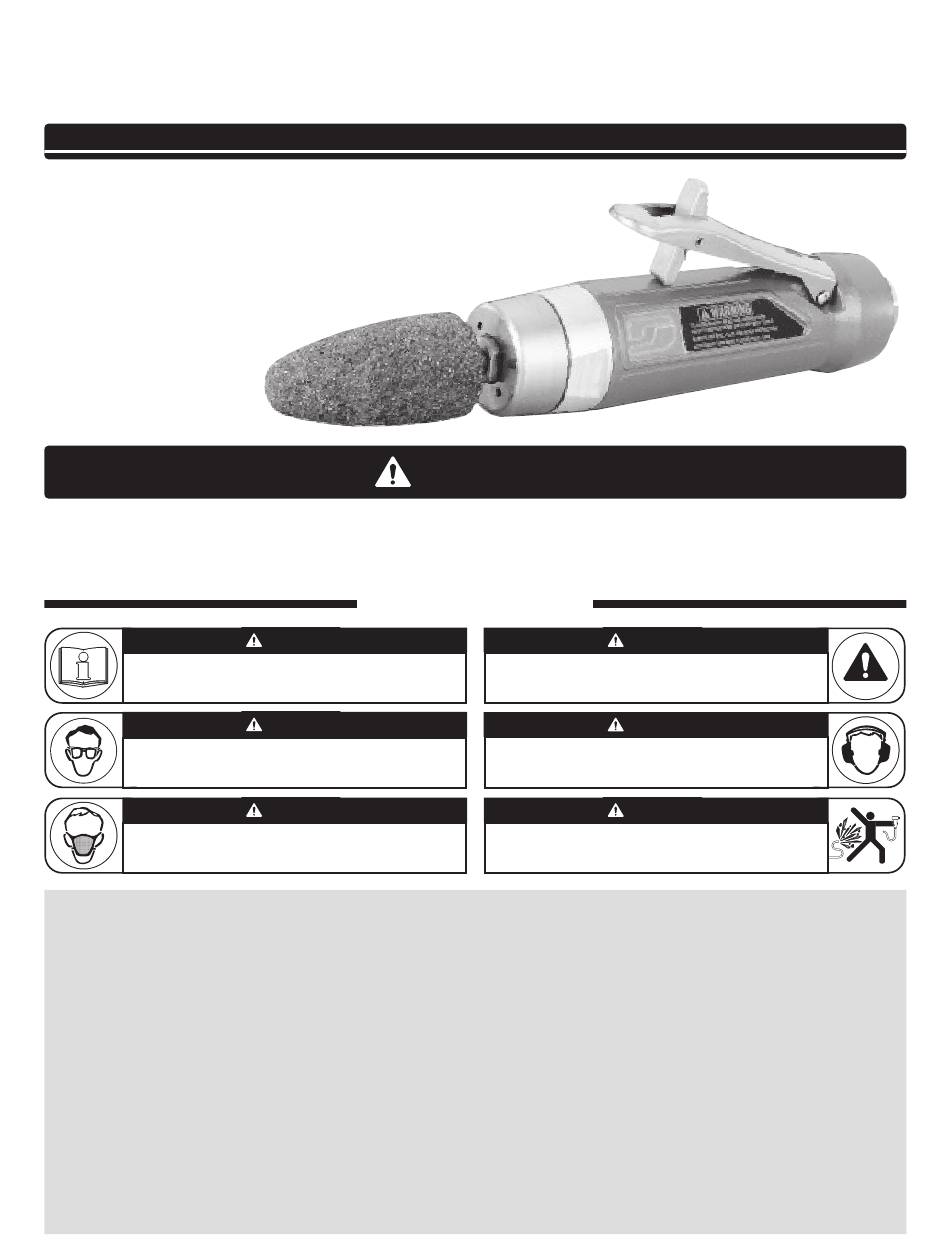

  • Page 1 Abrasive Power Tool. ® Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed written consent from Dynabrade, Inc. Tool Intent: Cone or Plug Grinders are ideal for smoothing weld seams, cleaning castings and preparing surfaces for plating or painting.
  • Page 2 (Sloped in the direction of air flow) To Tool Station Regulator Refrigerated Air Dryer Filter Lubricator Dynabrade Air Power Tools are designed to Ball • operate at 90 PSIG (6.2 Bar/620 kPa) maximum Valve Ball air pressure at the tool inlet, when the tool is...
  • Page 3 Air Filter-Regulator-Lubricator (FRL) – Provides accurate air pressure regulation and two stage filtration of water contaminants. Operates 55 SCFM/1,558 LPM @ 90 PSIG with 1/2" NPT female ports. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specification states 40 SCFM, set the drip rate on the •...
  • Page 4 20,000 RPM 96444 51949 Safety Lever Assembly 51946 2 N•m Valve Stem Assembly Left Hand Threads 96443 (Incl. O-Ring) 53738 52715 Housing – Model 53739 52716 Housing – Model 53740 52717 Housing – Model 53741 52718 Housing – Model 51945...
  • Page 5 .001" - .0015". Adjust clearance by repeating steps 4 and 5 with different shims if necessary. 51926 Once proper rotor gap clearance is achieved, install well lubricated Blades (4) into rotor slots. Dynabrade 95842 recommends lubricating blades with Air Lube.
  • Page 6 Tool Assembly Complete. Please allow 30 minutes for adhesives to cure before operating tool. Important: 95842 Before operating, places 2-3 drops of Dynabrade Air Lube (P/N ) directly into inlet with throttle lever depressed. Operate tool for 30 seconds to allow Air Lube to properly lubricate internal motor components. Motor should now be tested for proper operation at 90 PSIG max.
  • Page 7 This service chart is published as a guide to expectant life of component parts. The replacement levels are based on average tool usage over one year. Dynabrade Inc. considers one year usage to be 1,000 hours or 50% of a man year. Parts included in motor tune-up kit are identified by High Wear and Medium Wear items.
  • Page 8 93351 – 1/8" Kit 93350 – 1/4" Kit 93380 – 6 mm Kit Dynabrade Air Lube Formulated for pneumatic equipment. Absorbs up to 10% of its weight in water. Collet Inserts Prevents rust and formation of sludge. 50065 – 1/8"...
