Simplex 4090-9118 Installation Instructions

Cautions and Warnings

Introduction

Installation

©
. All rights reserved.
2005, 2010 SimplexGrinnell LP
Specifications and other information shown were current as of publication and are subject to change without notice.
Simplex and the Simplex logo are trademarks of Tyco International Ltd. and its affiliates and are used under license.
4090-9118 Relay IAM with T-Sense
DO NOT INSTALL ANY SIMPLEX
DAMAGED. Upon unpacking your Simplex product, inspect the contents of the
carton for shipping damage. If damage is apparent, immediately file a claim with
the carrier and notify an authorized Simplex product supplier.
ELECTRICAL HAZARD - Disconnect electrical field power when making any
internal adjustments or repairs. All repairs should be performed by a
representative or authorized agent of your local Simplex product supplier.
STATIC HAZARD - Static electricity can damage components. Handle as
follows:
•
Ground yourself before opening or installing components.
•
Prior to installation, keep uninstalled component wrapped in anti-static
material at all times.
The 4090-9118 Relay IAM with T-Sense provides the 4100U FACP output control
of one Form-C contact set and input status from a T-Sense monitoring zone. The
Relay IAM with T-sense provides the 4100U FACP with the status/state of the
monitored zone. The 4 states that it can indicate are: OPEN, NORMAL,
LIMITED, and SHORT. The LIMITED state occurs when a normally-open
device, electrically located between the series resistor and the EOL resistor,
activates. The FACP can then annunciate the status of closed devices depending
on whether they are before or after the series resistor.
The IDNet channel provides the communication link between the Relay IAM with
T-Sense and 4100U FACP while powering the entire circuit.
The range of possible temperatures under which the 4090-9118 Relay IAM with T-
Sense can function is between 32° F (0° C) and 120° F (49° C). This Relay IAM
operates normally under non-condensing humidity conditions up to 93% relative
humidity at 90° F (32° C).
Relay IAM with T-Sense installation consists of the following:
•

Setting the address of the Relay IAM with T-Sense

•

Making electrical connections to the Relay IAM with T-Sense

•
Mechanically installing the Relay IAM with T-Sense
Mounting
Bracket
T-Sense Input
Terminals
IDNet
Terminals
DIP Switch
(Under Re-sealable
Label)
Note: The LED flashes approximately once every three seconds to indicate
valid communications with the 4100U FACP.

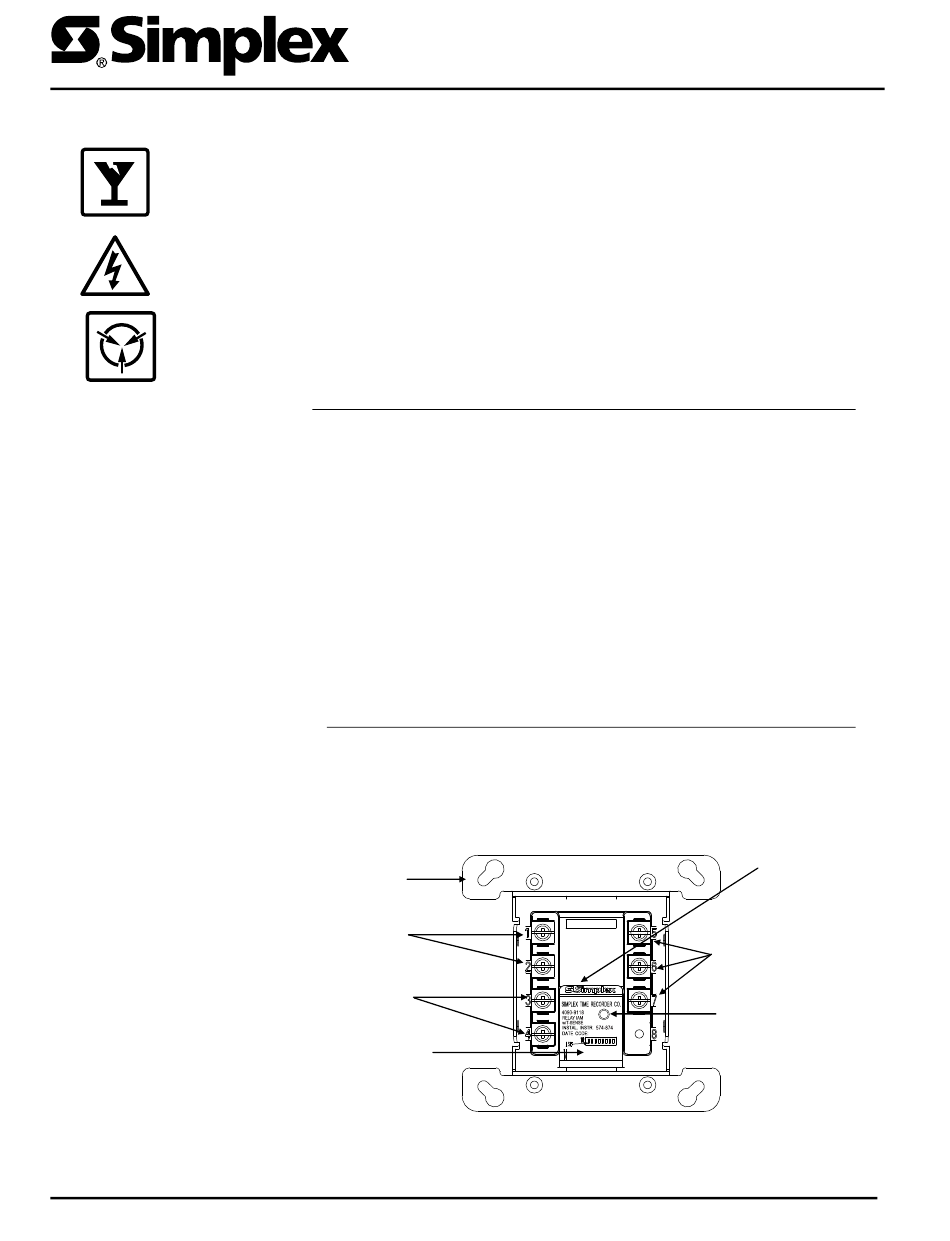

Figure 1. Relay IAM with T-Sense Assembly
Installation Instructions
®
PRODUCT THAT APPEARS
Relay Output
Terminals
(See Note)
Assembly
PID Label
LED
574-874
Rev. C
